Description

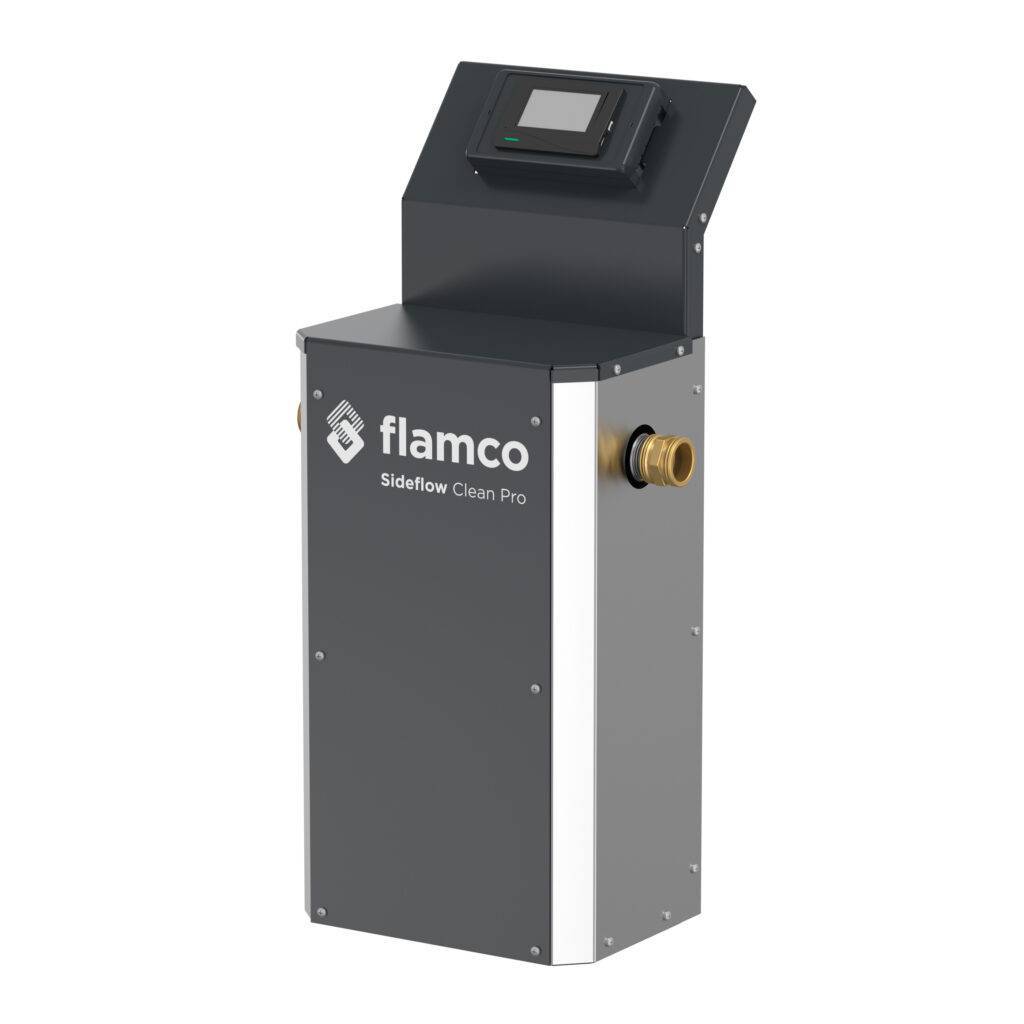

The floor standing Sideflow Clean Pro is one of the most powerful magnetite and dirt filters on the market. The unit consists of a powder coated aluminium casing with internal insulation. The Sideflow Clean Pro uses a pump which forces a part of the system water (the ‘side stream’) to go through a filter and pass a magnet, which means that dirt and magnetite are captured through a combination of a filter bag and magnetic filtration. The Sideflow Clean Pro is suitable for installations in many building types, including a wide range of commercial and industrial buildings.
Highly effective dual filtration for the removal of magnetic and non-magnetic contaminants.
Full and water tight insulation for energy saving through optimal energy-efficient operation.
Quick and easy to install.
Easy operation thanks to its intuitive controller menu with 8 languages.
Wide range of applications including commercial and utilities in systems up to 200,000 litres.
Easy cleaning and maintenance.
Easy retrofitting in existing installations.
Automatic switch-off when the filter is full. -
Technical Features
System pressure (min / max): 1.3/8.0 bar
System temperature (min / max): -10/80 °C
Particle size (max): 1 μm
Power Supply: 230 V
Power consumption: 160 W
v. min / max*: 0.24/1.0 [m/s]
Kvs Value at 5m3/h.: 13.76 [m3/h]
Display size: 4,3“
Connection: G1 1/2“F
Sound: 45 dB
Languages: Deutsch, English, Francais, Nederlands,
Dansk, Svenska, Suomalainen, Polski
* For 1.1/2″ pipe at flow through capacaty 1.2 resp. 5.0 m3/h. -
