Pro PDG

Compact, totally enclosed combined digital pressurisation units. System fluid is sampled from the system, isolated and subjected to a full vacuum. All dissolved air within the sample is liberated in accordance with Henry’s Law and vented to atmosphere. The deaerated fluid is then reintroduced to the system. This process is automatically repeated and controlled with a digital processor. A turbo mode is available for initial system setup to allow for rapid deaeration of new installations. The real-time display shows the status of the mechanical components.

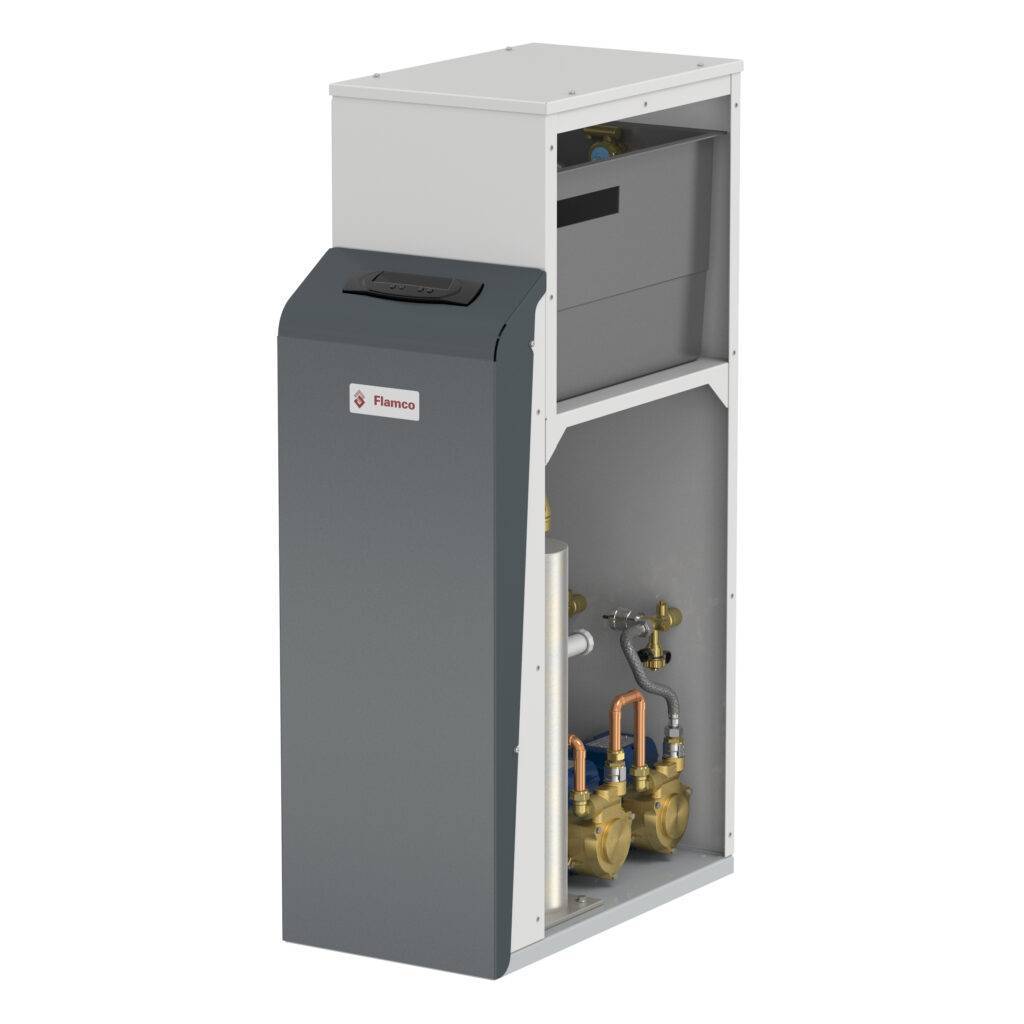

Compact, totally enclosed combined digital pressurisation unit with vacuum degasser for use on sealed systems in order to provide a minimum system pressure requirement and effective dissolved gas removal.

Application:
Commercial and Industrial.

System Volume (Guide): < 300,000 Litres.
Product Features:
For system volumes up to 300,000 litres.
Break Tank Capacity: 18 litres.
Floor mounted pressurisation and degassing unit.
Dry Run Protection.
Anti Seize Routine (Pump is pulsed for 2 seconds if inactive for 60 days, must be enabled at time of commissioning).
Electric pump, 230V 50Hz 1ph.
Colour: Grey (RAL 7016).
System fill mode.
Password protected.
Bi-directional programming menu.
Onscreen Service Reminder – 12 Months.
MODBUS RTU Communication Protocol.
Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
Pressure setting in 0.1 bar increments.
Pump pulse option.
Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
Optional Additional Volt Free Contacts (Requires an additional factory fitted expansion board): Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).
