Description
Most heating and chilled water systems require chemical dosing and the dosing pot provides a controlled method of achieving this.

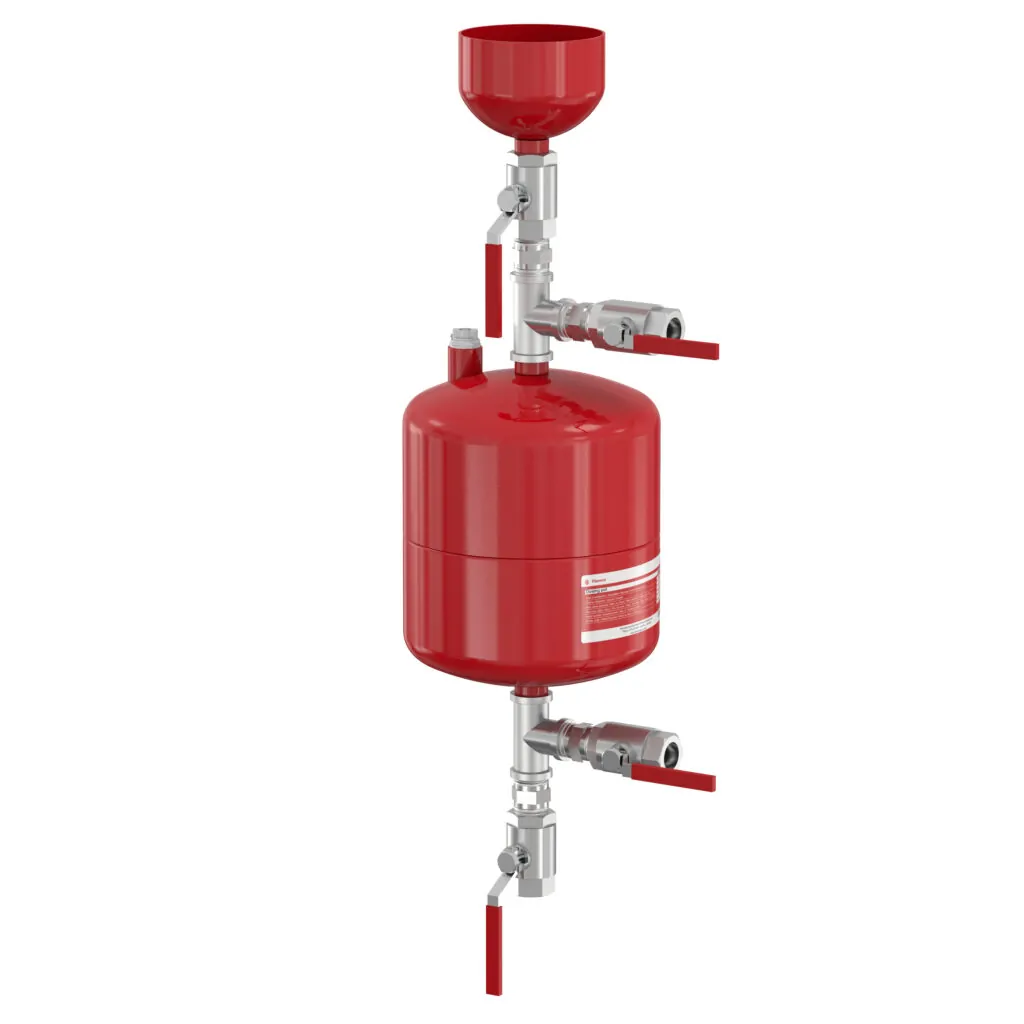

Dosing pots are of a mild steel welded construction, supplied fully assembled for easy installation. The unit comes complete with tundish, vessel, air vent, inlet, outlet and drain valves.
Supplied fully assembled.
Simple operations.
Increases energy efficiency.
Extends the life of the system.
Internally uncoated to guarantee chemical compatibility with standard installations. -
Technical Features
Min./Max. working temperature: 5 °C / 95 °C.
Max. working pressure: 16 bar.
Certifications and Standards Applied:
PED 2014/68/EU Article 4 Paragraph 3 Sound Engineering Practice.
Welding BS EN281-1.
Fitting to BS21/ISO 7-1.
Material of Construction:
Cylinder: EN/ISO S235JRG2.
Dished Ends: EN/ISO S235JRG2.
Fittings: Galvanised Steel.
T-piece: Galvanised Steel.
Tundish: EN/ISO S235JRG2.
Valves: Chrome Plated Brass.
Exterior finishing: Epoxy powder coating – Red (RAL 3002). -
