Description
More compact, lighter, cleaner and more efficient
For total elimination of air from heating and cooling installations.
Air separators increase comfort and improve the yield. Air separators also offer benefits in the event of application in old systems or when an open system is converted to a closed system.Increases comfort and yield.
The removal of air from the system water extends the service life of pumps, control equipment and other system accessories.

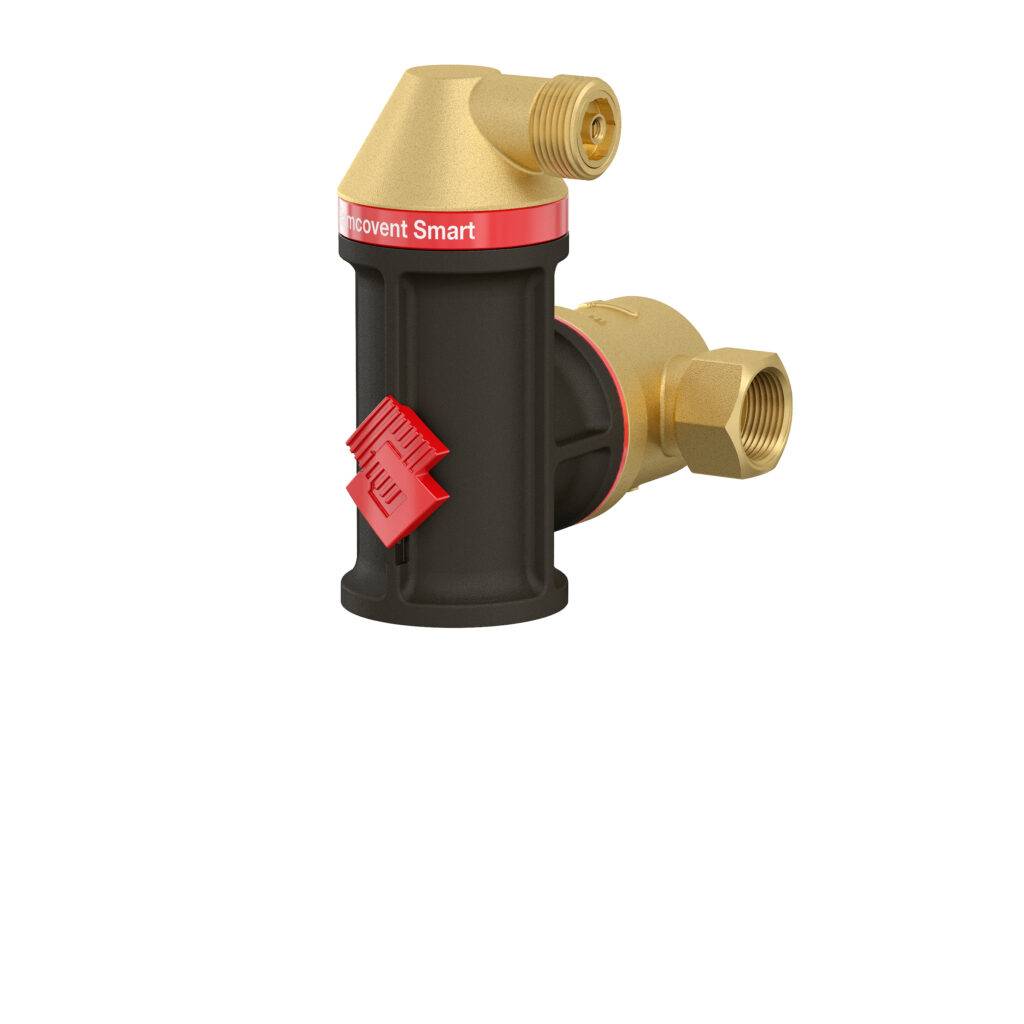

The Flamcovent Smart air separators remove even the smallest microbubbles from the system water. They are virtually maintenance-free and the flow resistance is negligibly low.
60% better performance compared to conventional separators.
Flow velocity up to 3 m/s.
Can be used with all kinds of pipework.
Compact dimensions, light weight.
Extremely low flow resistance and low loss of energy.
Consistent performance throughout its service life. -
Technical Features
Materials: brass and high-quality plastic.
Minimum/Maximum operating temperature: -10 °C / 120 °C.
Minimum/Maximum system pressure: 0,2 / 10 bar.
Minimum/Maximum operating pressure: 0,2 / 6 bar.
Suitable for addition of glycol-based anti-freeze up to 50%.
Suitable for addition of ethanol-based anti-freeze up to 30%. -
