Description
Flamco XStream air separators ensure lower energy consumption, less wear and tear, fewer breakdowns, a longer lifespan and thus a higher efficiency of heating and cooling installations.
More comfort, more efficiency.

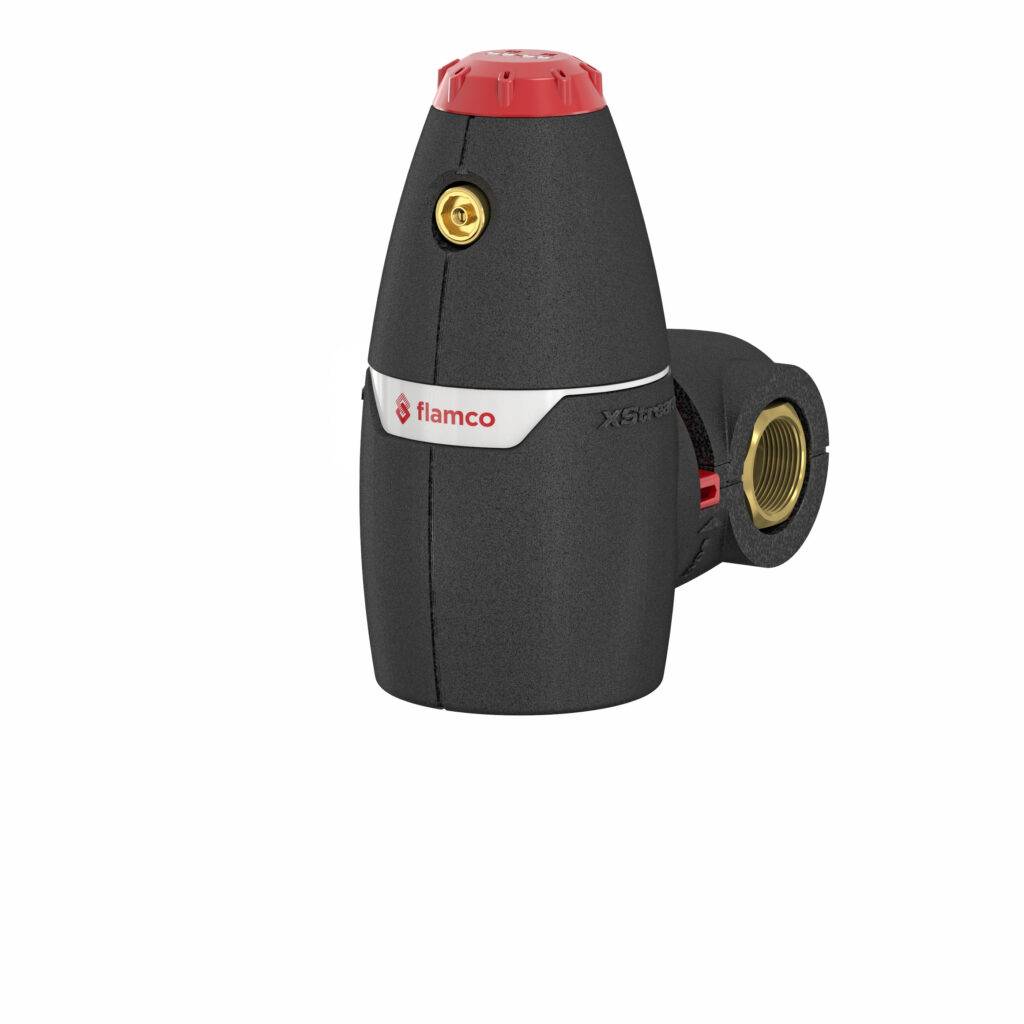

The Flamco XStream Vent ensures that air in the installation is separated quickly and efficiently. The result: more comfort, less corrosion, less noise and more efficiency of the heating system.
With an unique ECO/ MAX mode.
In the ECO mode a part of the system water (partial flow) is led through the Flamco XStream.
In the MAX mode all the system water is led through the Flamco XStream.
Up to 15% less energy consumption of the heating system.*
Up to 6% more efficiency of the heating system.*
The unit is 360 degree rotatable for ease of installation.
No account needs to be taken of the flow direction of the installation. This prevents installation errors.
Insulation is an integral part of the design of the Flamco XStream. This reduces heat losses to a minimum.
The intergrated service indicator indicates when the system was last flushed/vented in the MAX mode.
* Calculated according to the Hysopt method in a system with a gas boiler and manually operated radiator valves. -
Technical Features
Materials: brass and high-quality plastic.
Minimum/Maximum operating temperature: -10 °C / 120 °C.
Minimum/Maximum system pressure: 0,2 / 10 bar.
Minimum/Maximum operating pressure: 0,2 / 6 bar.
Suitable for addition of glycol-based anti-freeze up to 50%.
Suitable for addition of ethanol-based anti-freeze up to 30%.
Minimum/Maximum flow velocity: 0.2 / 3 m/s.
Medium pH: 5 / 10.
Material: EPP insulation. λ : 0.036 W/m.
Average thickness insulation: 20 mm. -
