PressBox

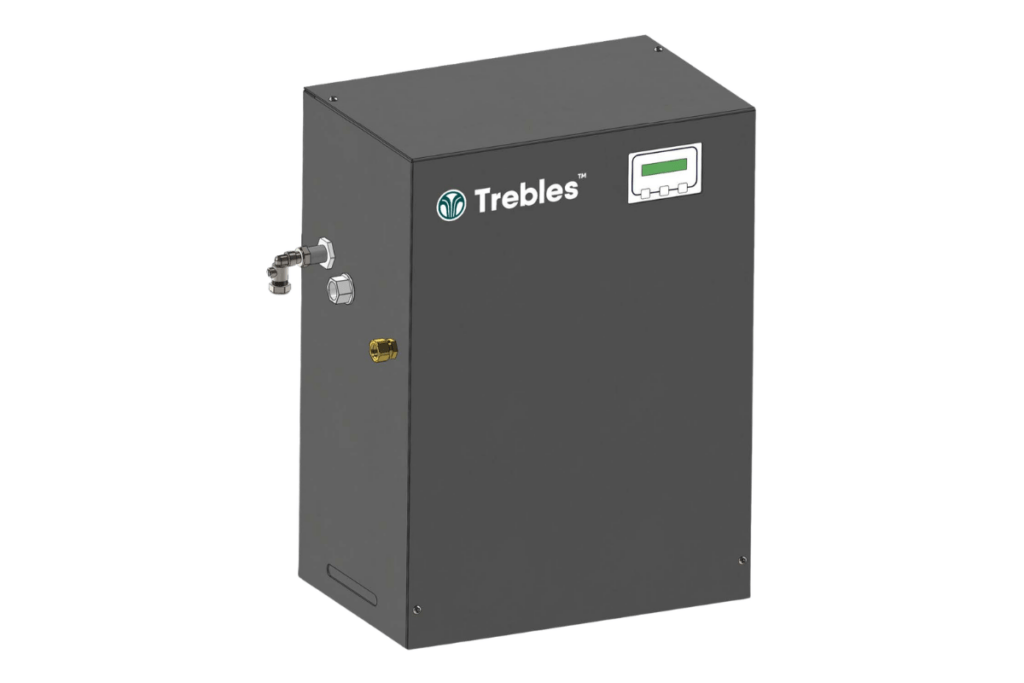

The Trebles PressBox is a compact automatic pressurisation unit designed to maintain the required pressure within sealed heating and cooling systems. Available in single- and twin-pump configurations, the PressBox combines a compact wall-mounted design with an integrated 18L Category 5 AB air gap break tank.

Enquire About This Product

  • Description

    The unit is supplied with an EasyMount wall bracket to simplify installation and can also be floor-mounted where required. Its lightweight aluminium enclosure provides a compact solution while accommodating a larger break tank than many comparable wall-mounted units.

    The PressBox digital controller provides automatic control and monitoring, with BMS connectivity included as standard. Two volt-free contacts are provided, including a common alarm and a programmable alarm that can be configured around different system parameters. A further three contacts can be added as an optional extra.

    A higher-pressure pump option is also available in both single- and twin-pump configurations, providing additional flexibility where higher system pressures are required.

    MATERIALS

    • Pump Body: RYTON
    • Body Plate: Brass
    • Impeller: Brass
    • Tank: AISI 304 Stainless Steel
    • Fittings: Brass / Nickel-Plated
    • Tubing: Nylon
    • Float Valve: Polypropylene (WRAS-approved)
  • Key Features & Benefits
    • Single- or twin-pump configurations
    • EasyMount wall Bracket Included
    • Wall or floor mounting
    • 18L  Category 5 AB air-gap break tank
    • WRAS-Approved Inlet Valve
    • Digital Controller
    • Auto-Changeover
    • Pump Pulse Functionality
    • Dry Run Protection
    • Password Protection
    • Flood Protection
    • BMS Output
    • 2Year Guarantee
  • Downloads

    To download documents, simply click on the file name below:

    Trebles Pressbox Technical Datasheet

Why Choose the PressBox?

tick

Easy Installation

The PressBox can be installed on the wall using the supplied EasyMount bracket or positioned as a floor-mounted unit, giving installers greater flexibility.

tick

Category 5 Protection

An 18L Category 5 AB air-gap break tank and WRAS-approved inlet valve are incorporated into the unit, providing the required protection without the need for a separate break tank arrangement.

tick

Pump Options

Choose between single- and twin-pump configurations to suit the pressure and duty requirements of the system, with higher-pressure pump options also available.

tick

Built-In Protection

Dry-run protection, flood protection and pump pulse functionality help protect the unit during operation and reduce the risk of avoidable faults.

tick

BMS Integration

The digital controller provides BMS connectivity as standard, with common and programmable alarm contacts included and further outputs available as an option.

tick

Lightweight Construction

The aluminium enclosure and supplied EasyMount wall bracket make the PressBox straightforward to position and install, while keeping the overall unit weight low.
