Q-Tank

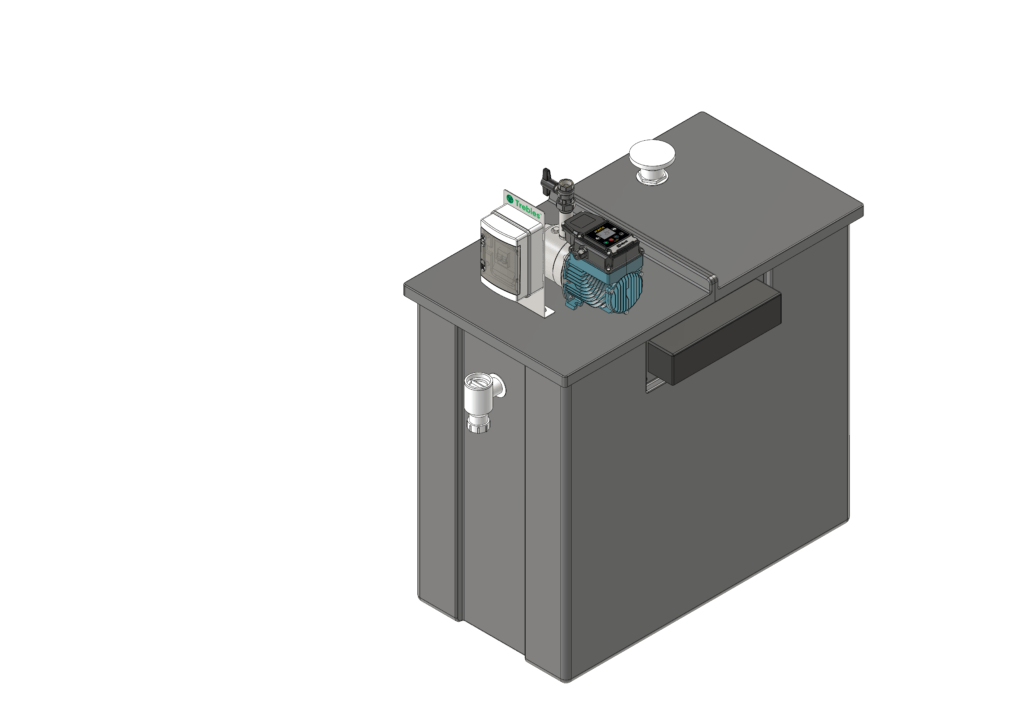

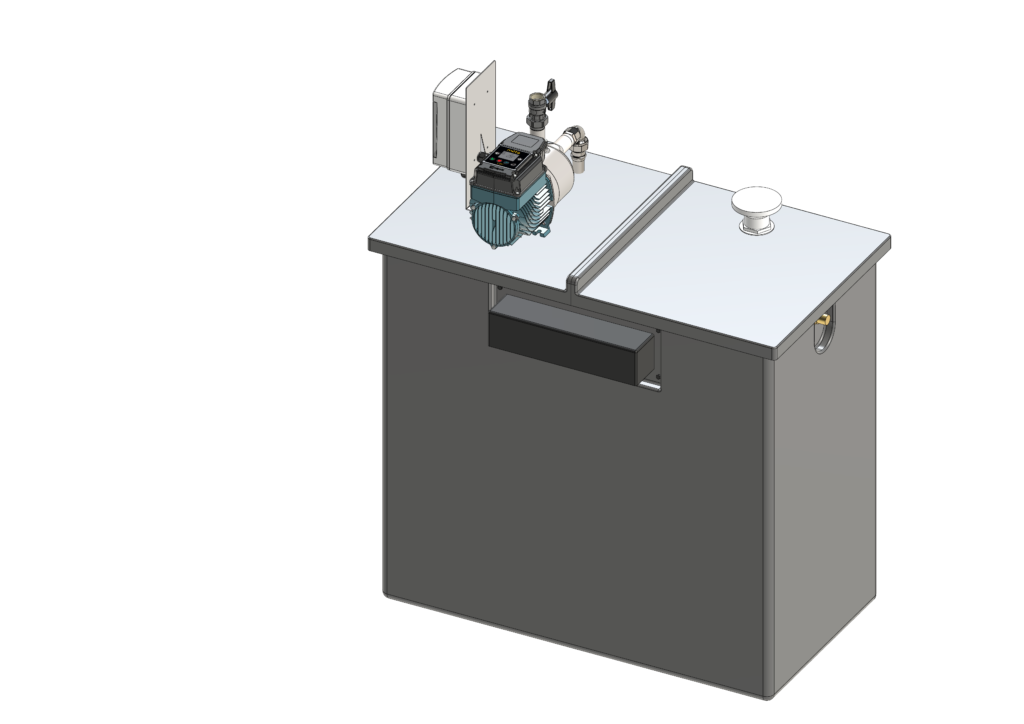

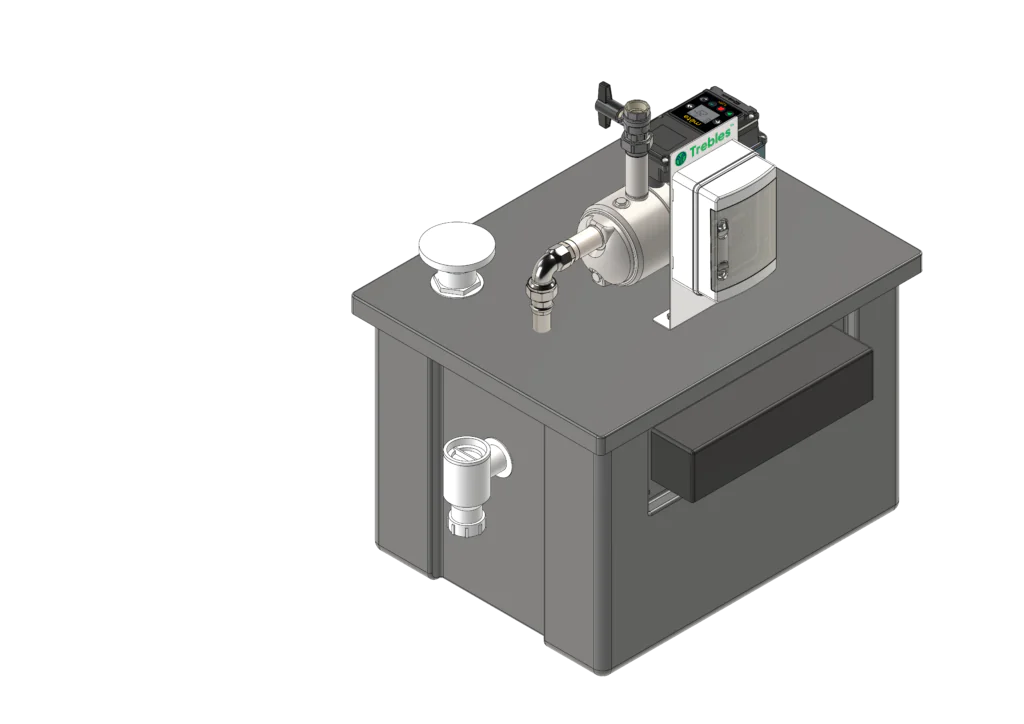

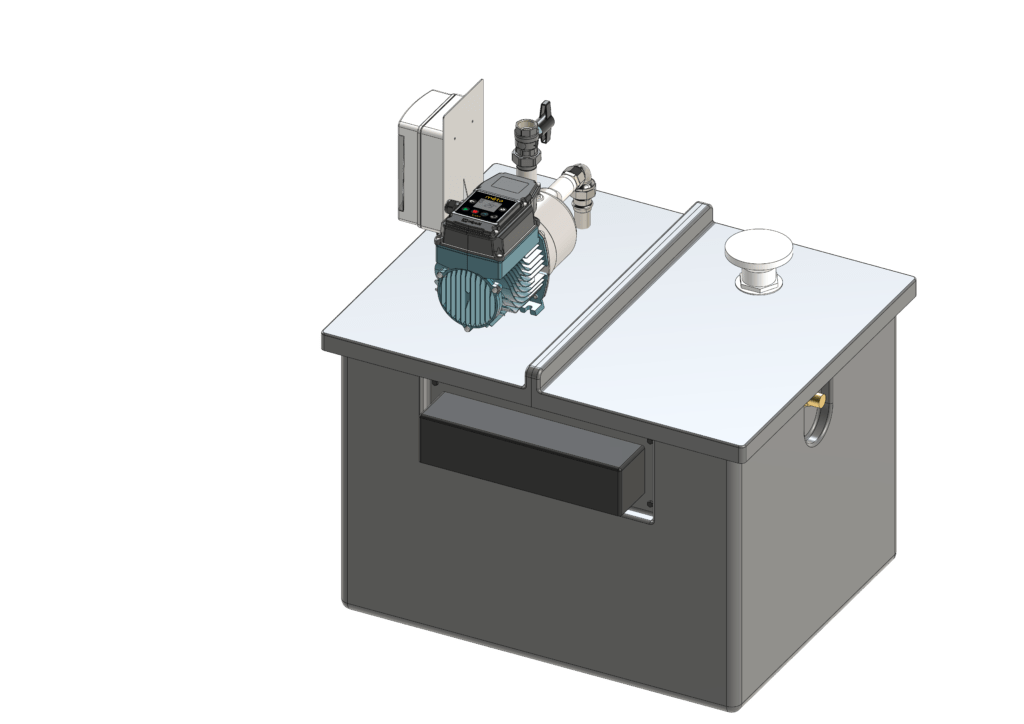

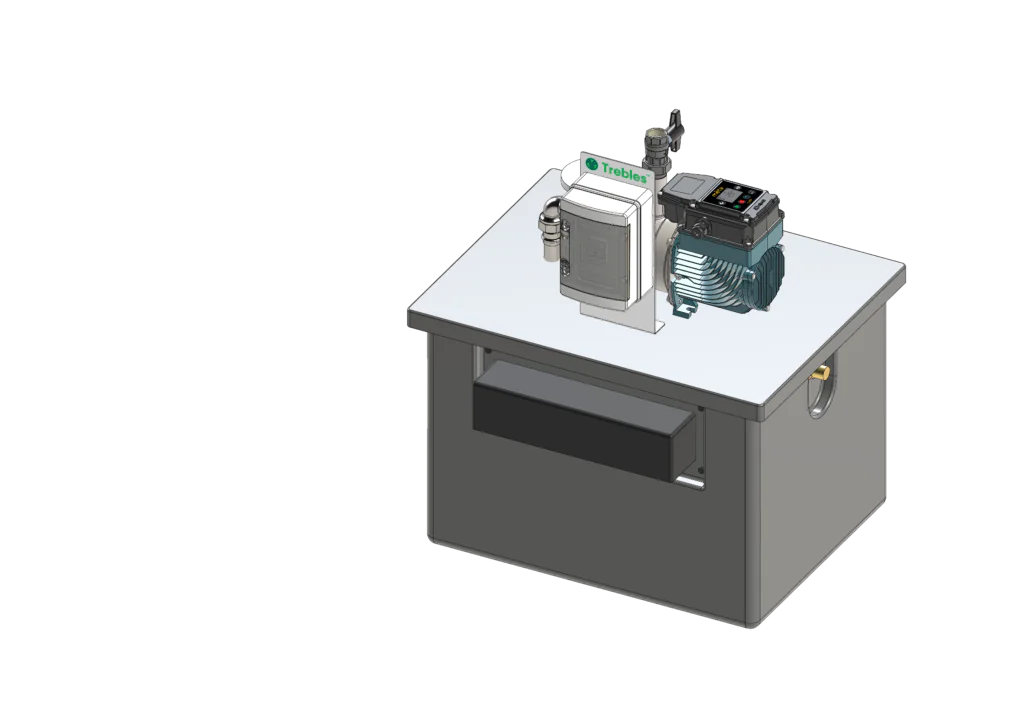

The Trebles Q-Tank is a Category 5 cold-water booster set with an integrated storage tank, designed to provide reliable pressure boosting where backflow protection and a compact footprint are required.
-
Description
The single variable-speed self-priming pump is mounted directly onto the tank lid, combining intelligent pressure control with constant pressure operation. The water-cooled pump eliminates the need for a cooling fan, helping provide quiet operation in applications where noise levels are important.
The Q-Tank uses a fibreglass storage tank with 25mm insulation and a Category 5 / AB air gap arrangement. A screened weir, screened overflow and screened lid vent provide the required protection, while the ¾” equilibrium float valve inlet allows the tank to refill in response to demand.

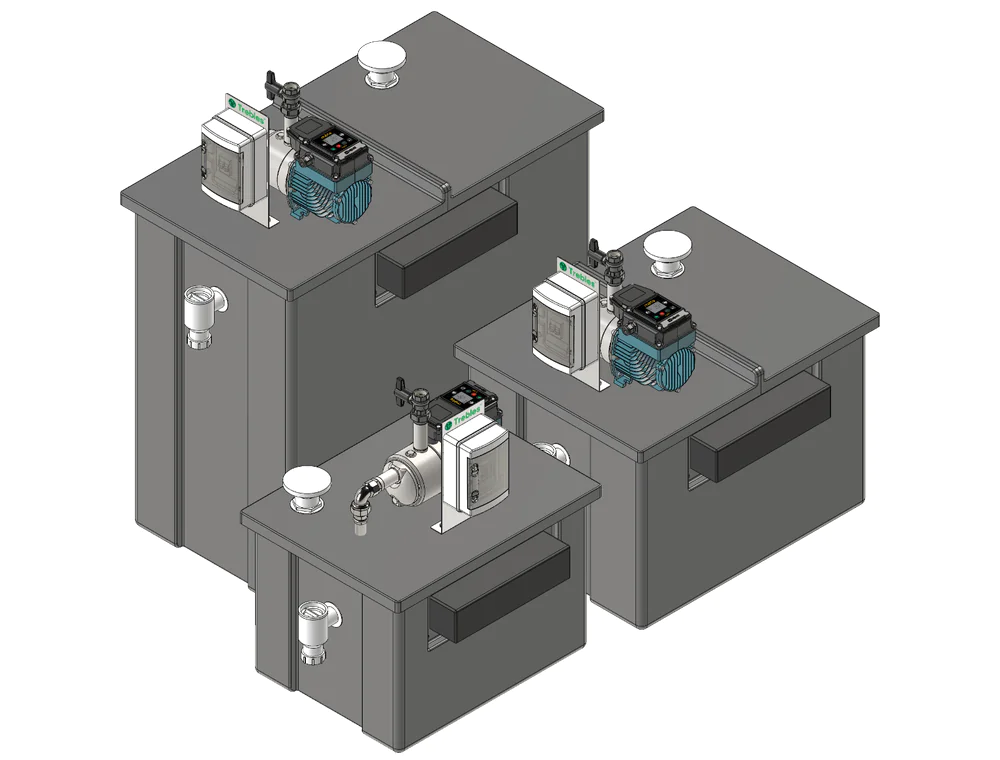

Available with nominal tank capacities of 136, 227 and 500 litres, the larger 227 and 500 litre models feature a split lid arrangement to make access for maintenance easier.
-
Technical Specification
Specifications:
- Single Pump
- Category 5 / AB air gap
- 136L, 227L, 500L nominal tank capacity
- Screened overflow
- Screened lid vent
- 25mm tank insulation
- Variable-speed operation
- Constant pressure control
- Dry-run Protection
- Self-priming pump
- 2-Year Guarantee
Materials:
- Check Valves: AISI 304 stainless steel
- Isolation Valves: CW617N UNI EN 12165
- Fittings: AISI 304 stainless steel
