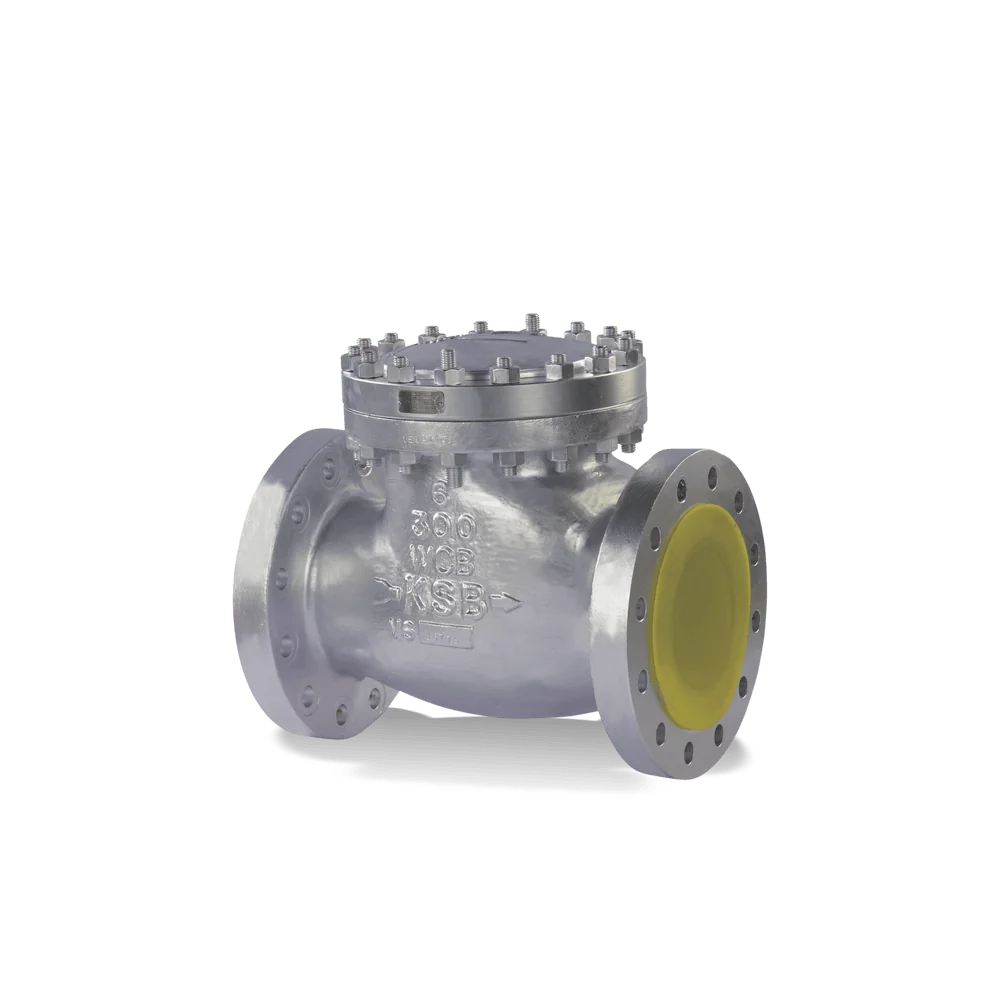

Ksb – SICCA 150-600 SCC
Swing check valve to ANSI/ASME with flanged or butt weld ends, with bolted cover, internally bracket-mounted hinge pin (up to NPS 12) or body-mounted hinge pin (NPS > 12). Bigger nominal sizes with anti-slam/dash pot arrangement (optional), graphite gaskets. Stellite hard-faced seat/disc interface made of 13 % chrome steel. Available in carbon steel, low-alloy steel and stainless steel.
-
Description
Main Applications
– Mining
– Chemical industry
– Descaling units
– Domestic water supply
– Boiler feed applications
– Boiler recirculation
– Fossil-fuelled power stations
– Cooling circuits
– Paper industry / pulp industry
– Petrochemical industry
– Pharmaceutical industry
– Pipelines and tank farms
– Refinery
– Rainwater harvesting
– Process engineering
– Heat recovery systems
– Hot-water heating systems
– Water extraction
– Water supply systems
– Sugar industry -
Advantages
– Additional features ensure safe sealing to atmosphere:
- – Risk of leakage is reduced by internally mounted hinge pin.
– Fully confined cover gasket with controlled compression ensures leak-proof joint.– Reliable, tight shut-off
- – Hard-faced body seat made of wear-resistant and corrosion-resistant 13 % chrome steel or Stellite.
– High-grade surface finish: lapped seat/disc interface
– Self-aligning valve disc ensures tight shut-off.
– Valve disc opens at low differential pressure.– Economic benefits
- – Streamlined flow path minimises pressure losses.
-
Suitability
Swing check valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, CL 600, PN 104
- Max. nominal size
- DN 600, NPS 24
- Maximum allowable fluid temperature
- 593 °C
-
