Ksb – SICCA 150-600 GTC

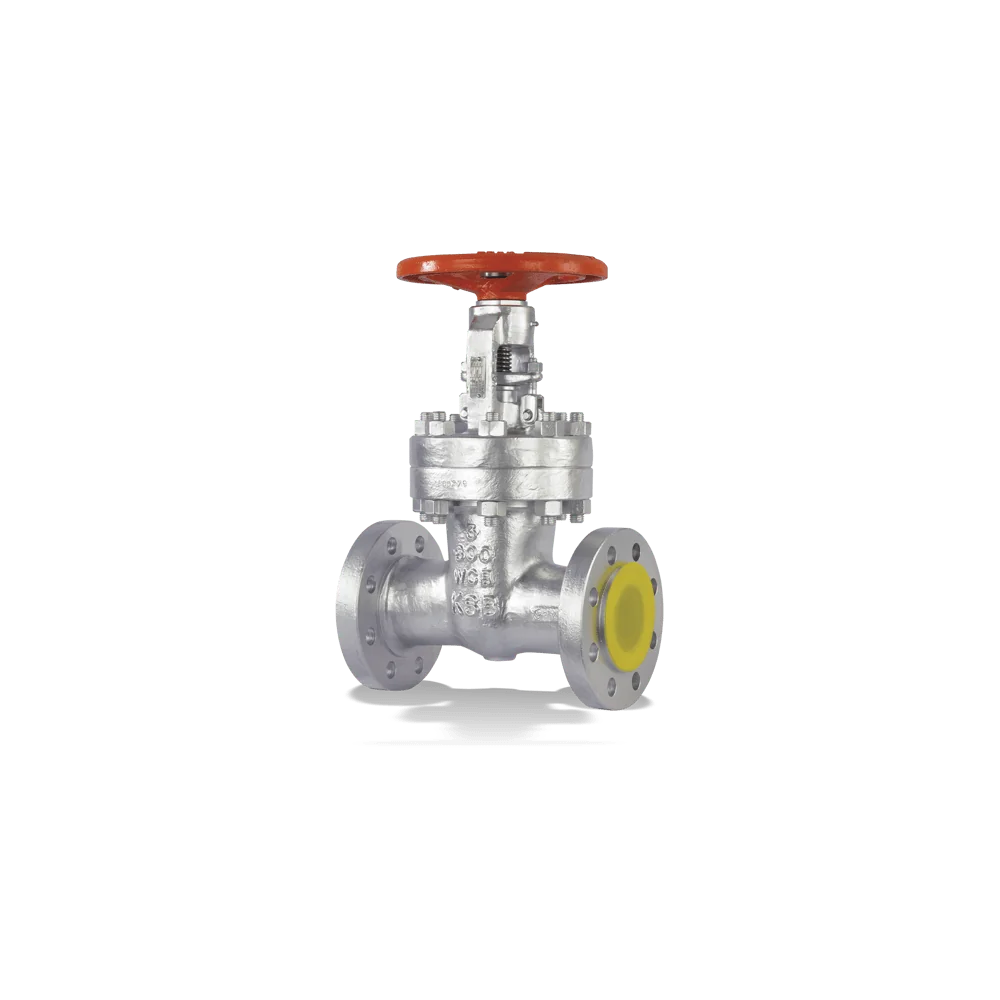

Gate valve to ANSI/ASME with flanged or butt weld ends, with bolted bonnet, outside screw and yoke, flexible wedge, rising stem, non-rising handwheel, Stellite hard-faced seat/disc interface made of 13 % chrome steel, with graphite gasket and gland packing. Available in carbon steel, low-alloy steel and stainless steel.
-
Description
Main Applications
– Spray irrigation systems
– General irrigation systems
– Drainage systems
– Drainage
– Maintaining groundwater levels
– Nuclear power stations
– Boiler feed applications
– Condensate transport
– Fossil-fuelled power stations
– Mixing
– Paper industry / pulp industry
– Petrochemical industry
– Pharmaceutical industry
– Pipelines and tank farms
– Flue gas desulphurisation
– Rainwater harvesting
– Process engineering
– Heat recovery systems
– Water treatment
– Water extraction
– Water supply systems -
Advantages
– Long service life and high functional reliability
- – Two-piece self-aligning gland ensures even compression of packing rings.
– Inconel-reinforced braided packing end rings offer smooth wiping action and prevent extrusion of graphite.
– Hard-faced body seat made of wear-resistant and corrosion-resistant 13 % chrome steel or Stellite.
– Burnished stem and smooth stuffing box surfaces extend the service life of the gland packing.
– Low actuating torque due to rolling element bearing on sizes 6 to 12 inches (Class 600).– Additional features ensure safe sealing to atmosphere:
- – Additional safety and blow-out protection by standard back seat.
– Fully confined cover gasket with controlled compression ensures leak-proof joint.
– Die-formed endless graphite packing rings reliably seal the stem passage.– Reliable, tight shut-off
- – High-grade surface finish: lapped seat/wedge interface
– Flexible wedge for perfectly tight shut-off
– Wedging action ensures tight shut-off at both low and high differential pressures.
– ‘T’-head joint across the flow path prevents wedge dislocation caused by the fluid handled.– Economic benefits
- – Streamlined flow path minimises pressure losses.
– Stem nut free from non-ferrous metals, for versatile application. -
Suitability
Gate valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, CL 600, PN 104
- Max. nominal size
- DN 600, NPS 24
- Maximum allowable fluid temperature
- 593 °C
-
