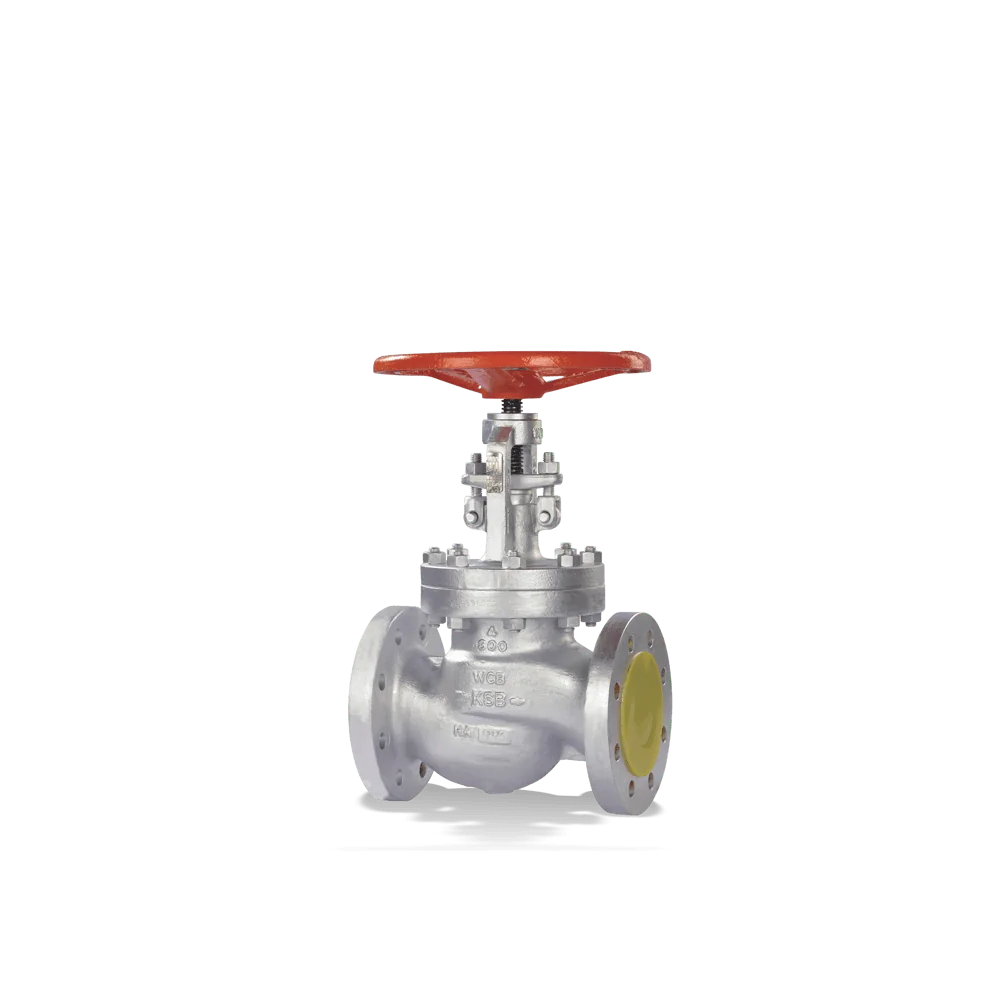

Ksb – SICCA 150-600 GLC
Globe valve to ANSI/ASME with flanged or butt weld ends, bolted bonnet, outside screw and yoke. Rising stem, Stellite hard-faced seat/disc interface made of 13 % chrome steel, with graphite gasket and gland packing, available in carbon steel, low-alloy steel and stainless steel.
-
Description
Main Applications
– Boiler feed applications
– Fossil-fuelled power stations
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Process engineering -
Advantages
– Long service life and high functional reliability
- – Two-piece self-aligning gland ensures even compression of packing rings.
– Inconel-reinforced braided packing end rings offer smooth wiping action and prevent extrusion of graphite.
– Hard-faced body seat made of wear-resistant and corrosion-resistant 13 % chrome steel or Stellite.
– Burnished stem and smooth stuffing box surfaces extend the service life of the gland packing.
– Rotating, self-aligning valve disc ensures reliable function.
– Low actuating torque due to rolling element bearing on sizes 8 to 10 inches (Class 300) and 6 to 10 inches (Class 600).– Additional features ensure safe sealing to atmosphere:
- – Additional safety and blow-out protection by standard back seat.
– Fully confined cover gasket with controlled compression ensures leak-proof joint.
– Die-formed endless graphite packing rings reliably seal the stem passage.– Reliable, tight shut-off
- – High-grade surface finish: lapped seat/disc interface
– Economic benefits
- – Streamlined flow path minimises pressure losses.
– Stem nut free from non-ferrous metals, for versatile application. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, CL 600
- Max. nominal size
- NPS 28
- Maximum allowable fluid temperature
- 593 °C
-
