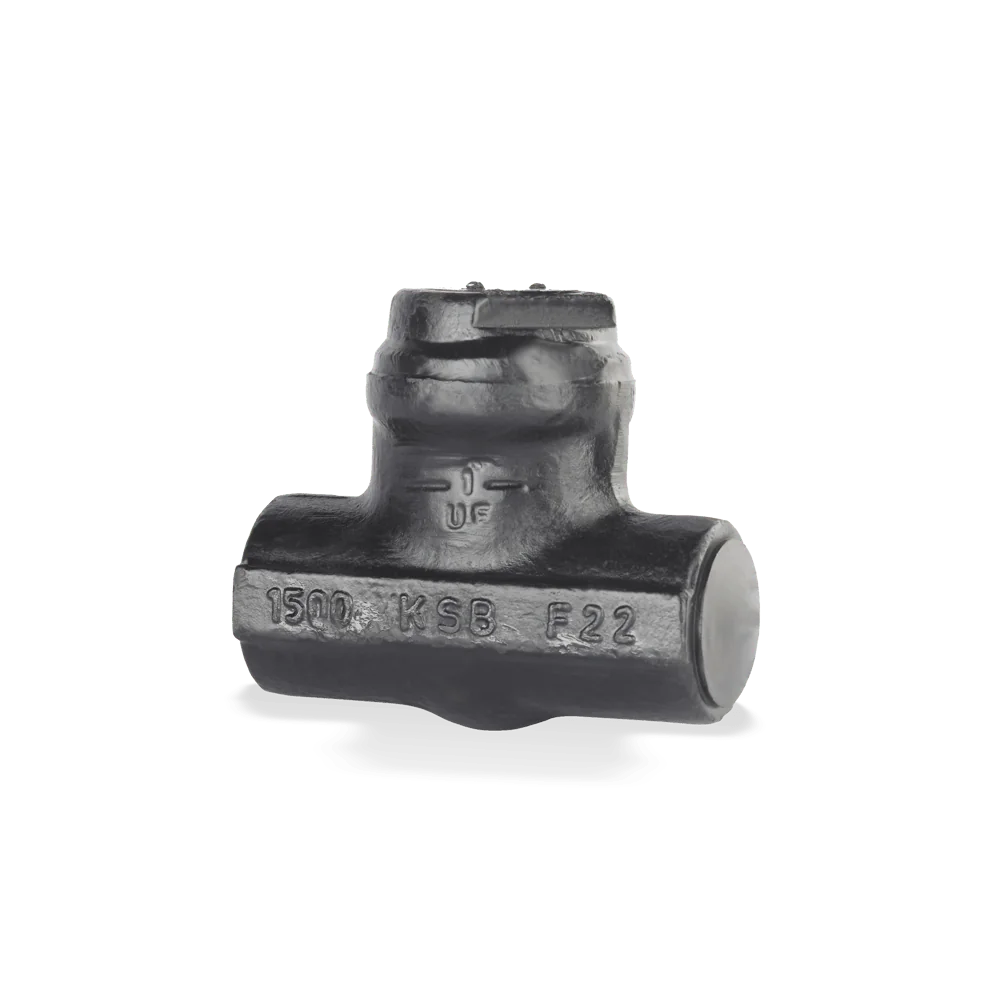

Ksb – SICCA 150-4500 PCF
Lift check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW) or integral flange (Class 150 - 600), Trim 8 (Stellite/13 % chrome steel), with bolted cover (Class 150 - 800) or welded cover (Class 1500/2500/4500), spring-loaded check disc, available in carbon steel, low-alloy steel and stainless steel.
-
Description
Main Applications
– Mining
– Chemical industry
– Descaling units
– Domestic water supply
– Boiler feed applications
– Boiler recirculation
– Fossil-fuelled power stations
– Cooling circuits
– Paper industry / pulp industry
– Petrochemical industry
– Pharmaceutical industry
– Pipelines and tank farms
– Refinery
– Rainwater harvesting
– Process engineering
– Heat recovery systems
– Hot-water heating systems
– Water extraction
– Water supply systems
– Sugar industry -
Advantages
– Long service life and high functional reliability
- – Hard-faced body seat made of wear-resistant and corrosion-resistant 13 % chrome steel or Stellite.
– Additional features ensure safe sealing to atmosphere:
- – Fully confined cover gasket with controlled compression ensures leak-proof joint.
– Welded body/cover joint provides added safety at high operating pressures and operating temperatures.– Reliable, tight shut-off
- – Zero leakage thanks to perfect contact at seat/disc interface.
-
Suitability
Lift check valve
-
Technical Features
- Nominal pressure
- CL 800, CL 1500, CL 2500, CL 4500
- Max. nominal size
- NPS 2
- Maximum allowable fluid temperature
- 816 °C
-
