NORI 40 ZXL/ZXS

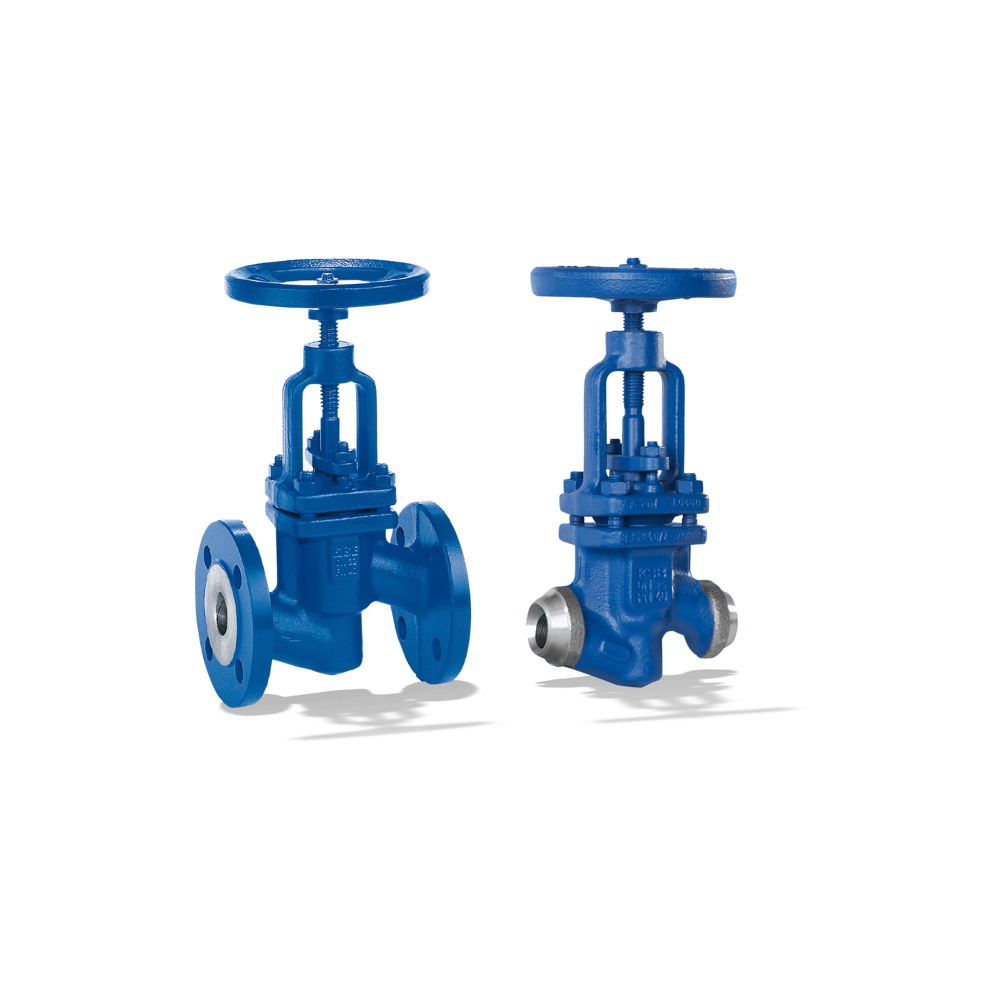

Globe valve to DIN/EN with flanged ends (ZXL), butt weld ends or socket weld ends (ZXS), with gland packing, with on/off disc or throttling plug, rotating stem, seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
-
Description
Main Applications
– Process engineering
– Chemical industry
– Petrochemical industry
– Fossil-fuelled power stations
– Boiler feed applications
– Boiler recirculation
– Condensate transport
– Descaling units
– Snow-making systems
– Paper industry / pulp industry
– Sugar industry
– Shipbuilding
– Mining
– Nuclear power stations -
Advantages
– Long service life and high functional reliability
- – Of the gland packing due to stem with burnished shank.
– Hard-faced valve seat made of wear-resistant and corrosion-resistant materials.– Reliable sealing. Bonnet gasket fully confined to prevent creep.
– Additional safety and blow-out protection by standard back seat.
– Easy to repair due to corrosion-protected bolts/screws and nuts
– Threaded bush free from non-ferrous metals, for versatile application. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 40, PN 25, PN 10, PN 16
- Max. nominal size
- DN 400
- Maximum allowable fluid temperature
- 450 °C
-
