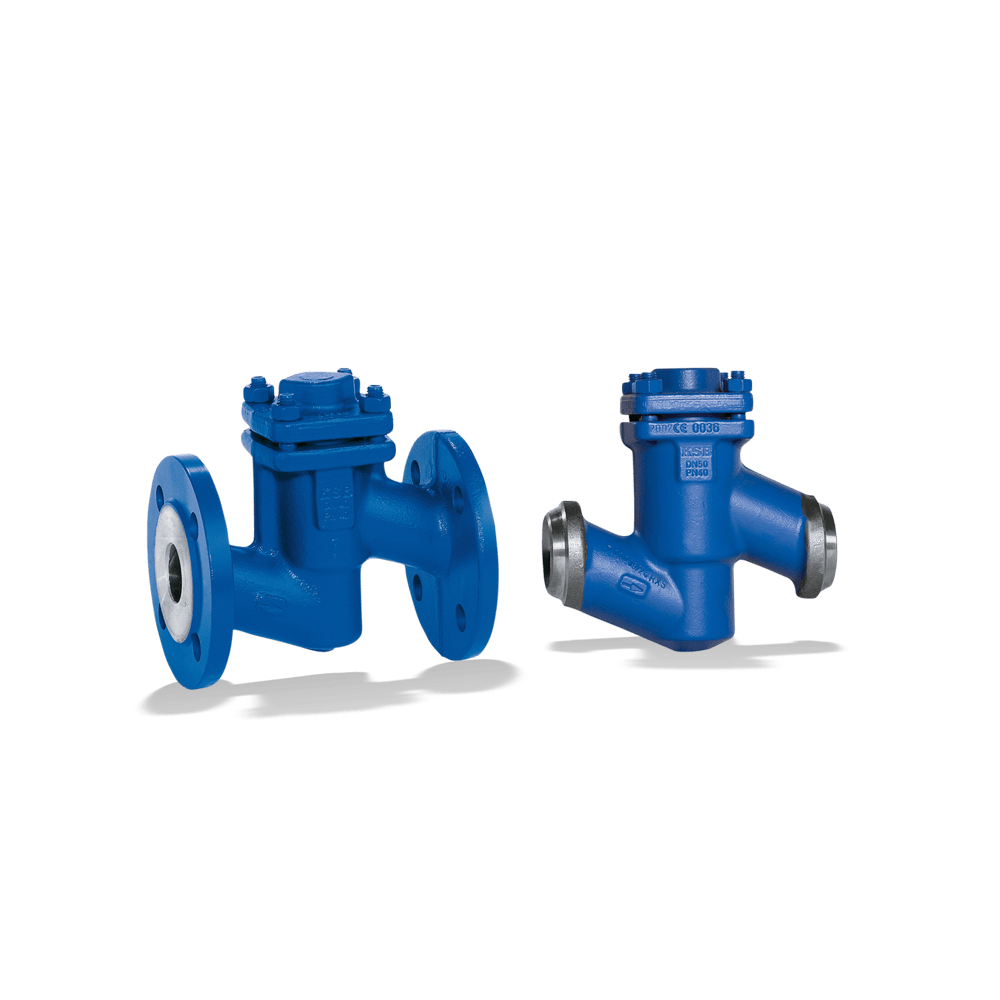

NORI 40 RXL/RXS
Lift check valve to DIN/EN with flanged ends (RXL), butt weld ends or socket weld ends (RXS), check disc with closing spring, seat/disc interface made of wear and corrosion resistant chrome steel or chrome nickel steel.
-
Description
Main Applications
– Process engineering
– Chemical industry
– Petrochemical industry
– Fossil-fuelled power stations
– Boiler feed applications
– Boiler recirculation
– Heat recovery systems
– Descaling units
– Snow-making systems
– Paper industry / pulp industry
– Sugar industry
– Shipbuilding
– Mining -
Advantages
– Reliable sealing. Bonnet gasket fully confined to prevent creep.
– Hard-faced valve seat made of wear-resistant and corrosion-proof materials for long service life and high functional reliability.
– Easy to repair due to corrosion-protected bolts/screws and nuts
– Versatile. Closing spring enables use in vertical or horizontal pipes. -
Suitability
Lift check valve
-
Technical Features
- Nominal pressure
- PN 40, PN 25, PN 10, PN 16
- Max. nominal size
- DN 400
- Maximum allowable fluid temperature
- 450 °C
-
