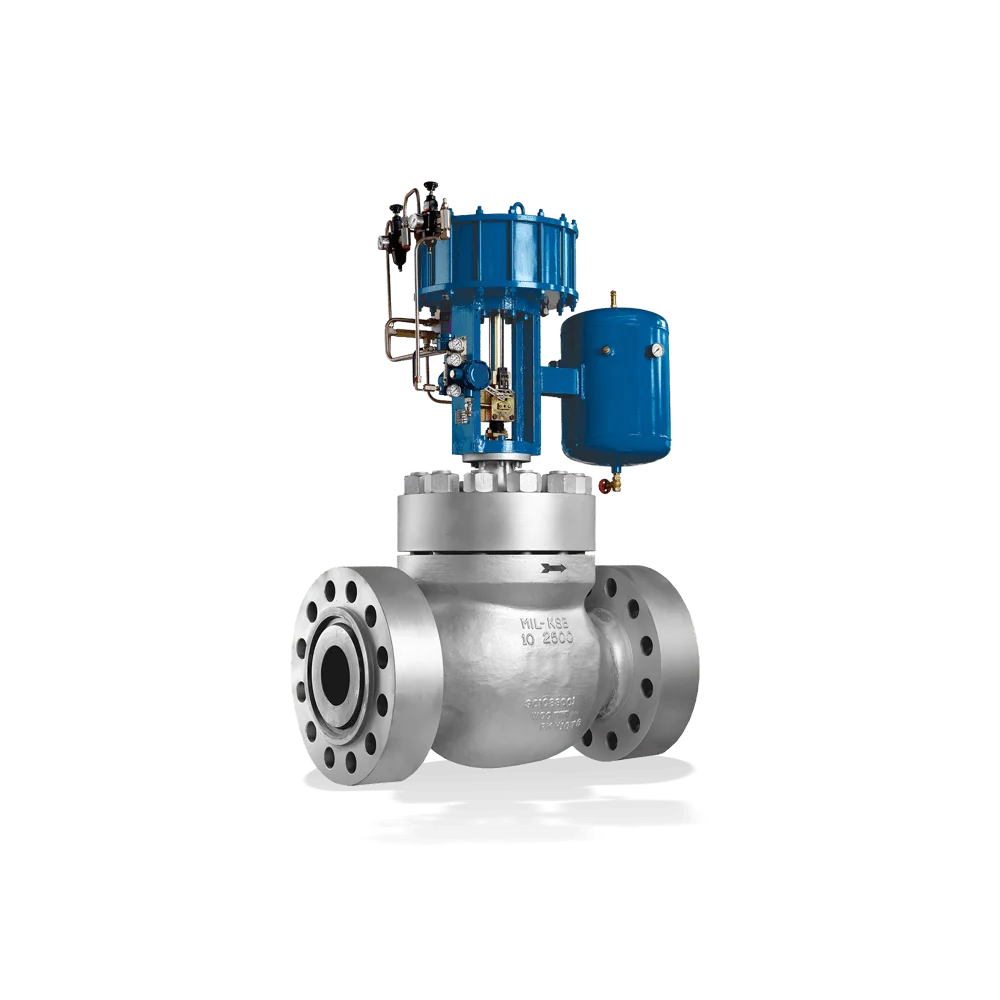

MIL 41000
Cage-guided single-ported heavy-duty control valves, high pressure drop capability; noise reduction and anti-cavitation solution available by replacing the standard cage.
-
Description
Main Applications
– Spray irrigation systems
– Mining
– General irrigation systems
– Chemical industry
– Nuclear power stations
– Boiler feed applications
– Boiler recirculation
– Waste water treatment plants
– Air-conditioning systems
– Condensate transport
– Fossil-fuelled power stations
– Cooling circuits
– Seawater desalination/reverse osmosis
– Paper industry / pulp industry
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Flue gas desulphurisation
– Recirculation
– Shipbuilding
– Thermal oil circulation
– Hot-water heating systems
– Water treatment
– Water supply systems
– Sugar industry -
Advantages
– Versatile through a number of designs with different features for handling a wide variety of process applications.
– Noise reduction and anti-cavitation control by multi-path trim.
– Suitable for higher pressure drops and the most demanding of applications with robust cage-guided design, optional pressure balancing and a variety of customised trims.
– Leak tightness Class IV to ANSI FCI 70.2 or exceptional leak tightness Class V to ANSI FCI 70.2. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, CL 600, CL 900, CL 1500, CL 2500, CL 3000
- Max. nominal size
- NPS 32
- Maximum allowable fluid temperature
- 566 °C
-
