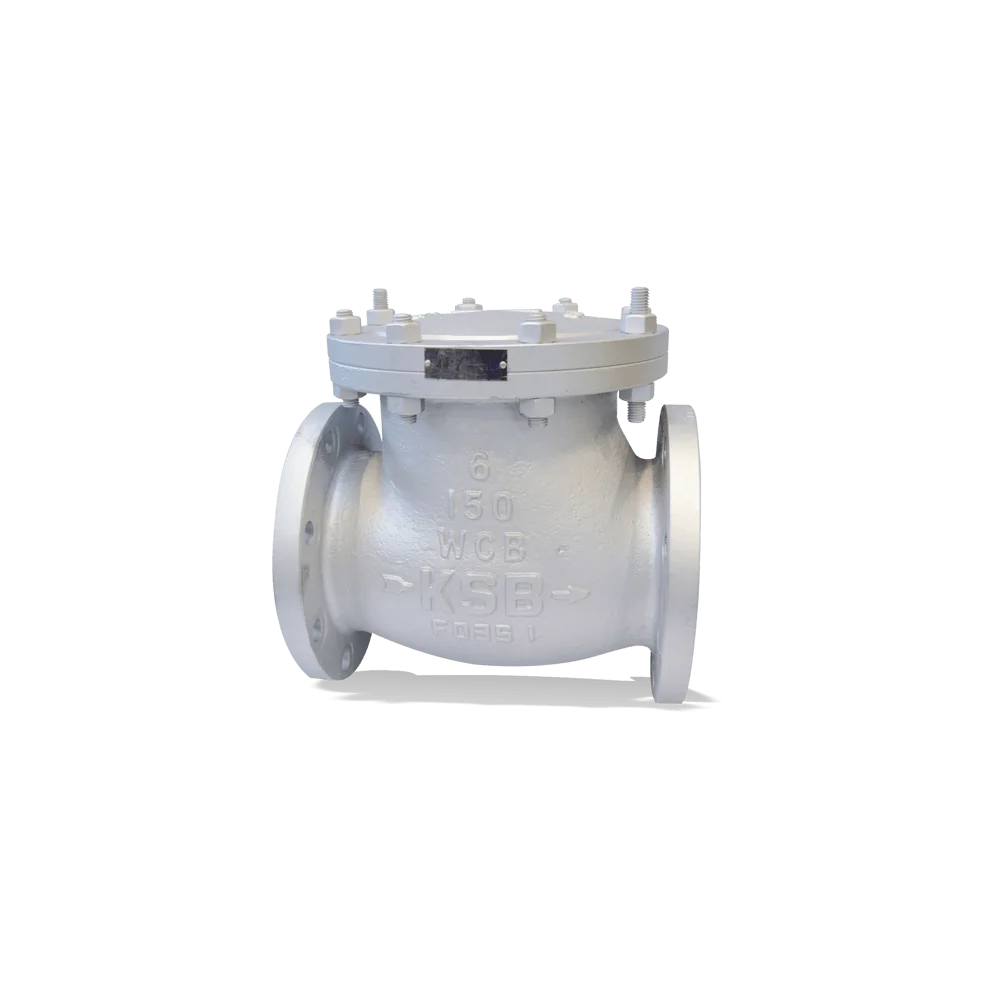

Ksb – ECOLINE SCC 150-600
Swing check valve to ANSI/ASME with flanged ends, cast steel A216 WCB, Trim 8 (Stellite/13 % chrome steel) for Class 150/300/600, Trim 5 (Stellite/Stellite) for Class 600, with bolted cover, internally mounted hinge pin (2"-12"), stainless steel/graphite gaskets.
-
Description
Main Applications
– Boiler feed applications
– Fossil-fuelled power stations
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Process engineering -
Advantages
– Special anti-rotation pin between valve disc and hanger arm prevents the seating area from changing as a result of occasional valve disc rotation.
– Long-term tight shut-off due to uniquely designed screwed connection between valve disc and hanger arm enabling distance adjustment
– Male/female joint between the body and cover prevents overtightening of the fully confined gasket, resulting in a longer gasket life and improved sealing performance.
– Reliable shut-off and longer service life due to hard-faced body seat and solid disc seat made of wear-resistant and corrosion-proof materials suitable for all types of corrosive and erosive fluids.
– Risk of leakage is reduced by internally mounted hinge pin.
– Extended maintenance-free service life thanks to hard-facing applied to valve disc and seat ring by deposit welding -
Suitability
Swing check valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, CL 600
- Max. nominal size
- NPS 24
- Maximum allowable fluid temperature
- 593 °C
-
