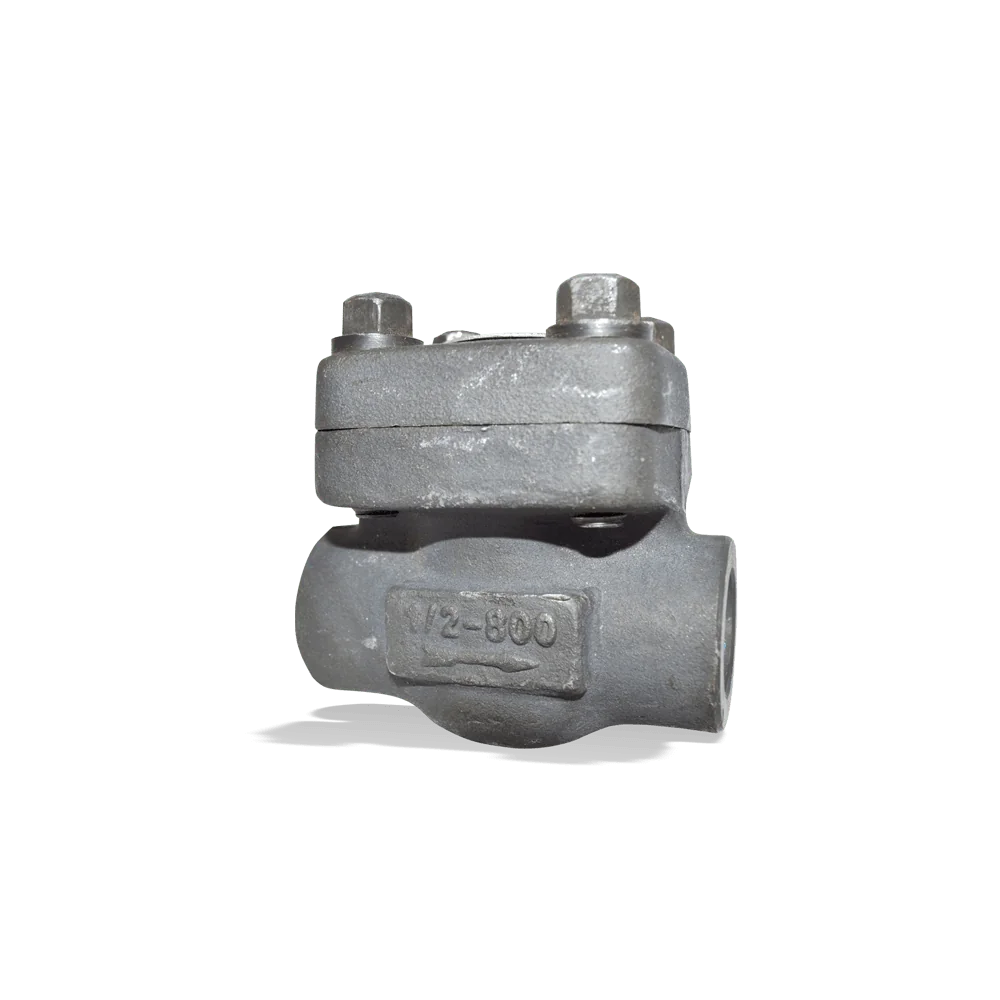

Ksb – ECOLINE PTF 800
Lift check valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW), Trim 8 (Stellite/13 % chrome steel), with bolted cover, spring-loaded valve disc, available in carbon steel and alloy steel.
-
Description
Main Applications
– Boiler feed applications
– Fossil-fuelled power stations
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Process engineering -
Advantages
– Long service life and high functional reliability by hard-faced seat/disc interfaces made of wear-resistant and corrosion-resistant materials
– Reliable sealing. Cover gasket fully confined to prevent creep.
– Versatile. Closing spring enables use in vertical or horizontal pipes.
– Valve disc guided along the inside body wall for reliable seating and tight shut-off. -
Suitability
Lift check valve
-
Technical Features
- Nominal pressure
- CL 800
- Max. nominal size
- NPS 2
- Maximum allowable fluid temperature
- 593 °C
-
