ECOLINE GT 40

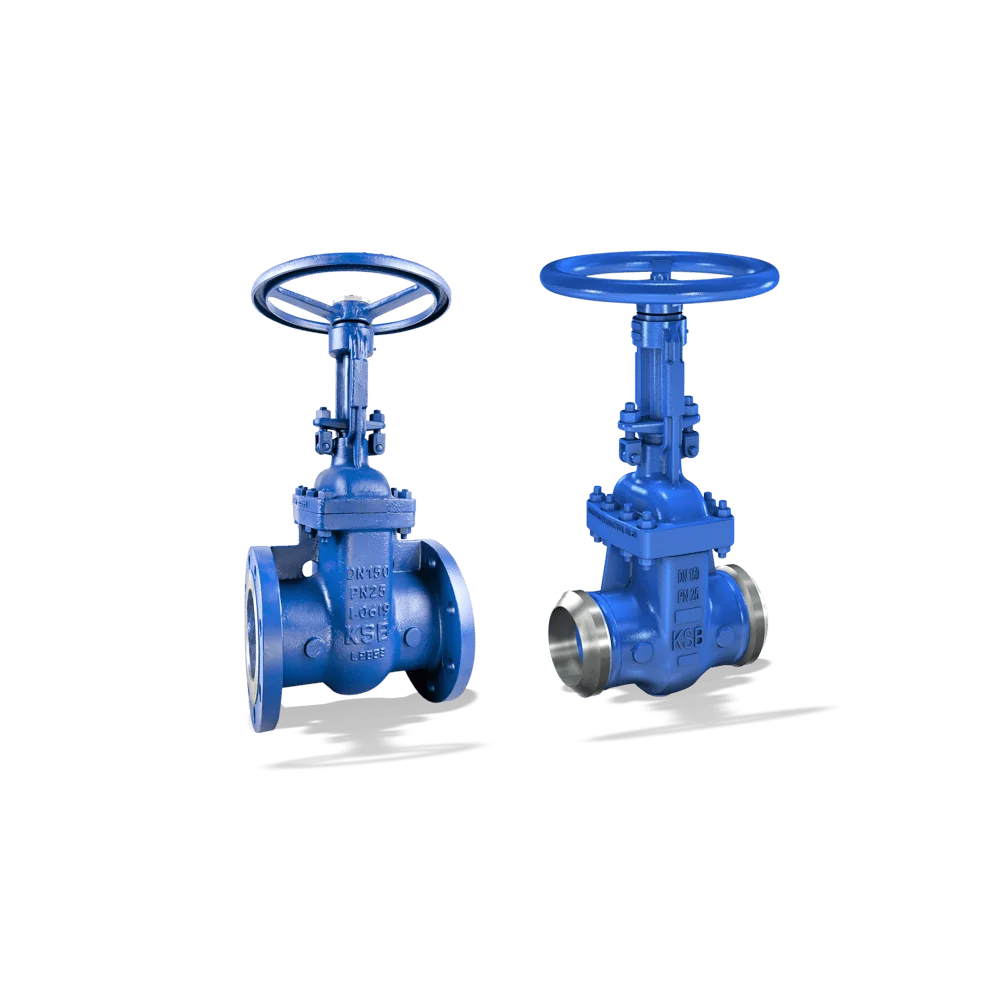

Gate valve to DIN/EN with flanged ends or butt weld ends, bolted bonnet, body made of cast steel, non-rotating stem, with flexible wedge, seat/disc interface made of wear and corrosion resistant 13 % chrome steel or Stellite.
-
Description
Main Applications
– Boiler recirculation
– Cooling circuits
– Condensate transport
– Petrochemical industry
– Process engineering
– Heat recovery systems
– Sugar industry
– Mining
– Descaling units
– Paper industry / pulp industry
– Snow-making systems -
Advantages
– Additional features ensure safe sealing to atmosphere:
- – Bonnet gasket fully confined to prevent creep (PN 40).
– Graphite gland packing with packing end rings.– Additional safety and blow-out protection by standard back seat.
– Long service life and high functional reliability- – Of the gland packing due to non-rotating stem with burnished shank.
– Hard-faced seat/disc interface made of wear-resistant and corrosion-resistant materials.
– Butt weld end design: high-grade design with connection branch extensions made of forged steel– Threaded bush free from non-ferrous metals, for versatile application.
-
Suitability
Gate valve
-
Technical Features
- Nominal pressure
- PN 10, PN 16, PN 25, PN 40
- Max. nominal size
- DN 600
- Maximum allowable fluid temperature
- 400 °C
-
