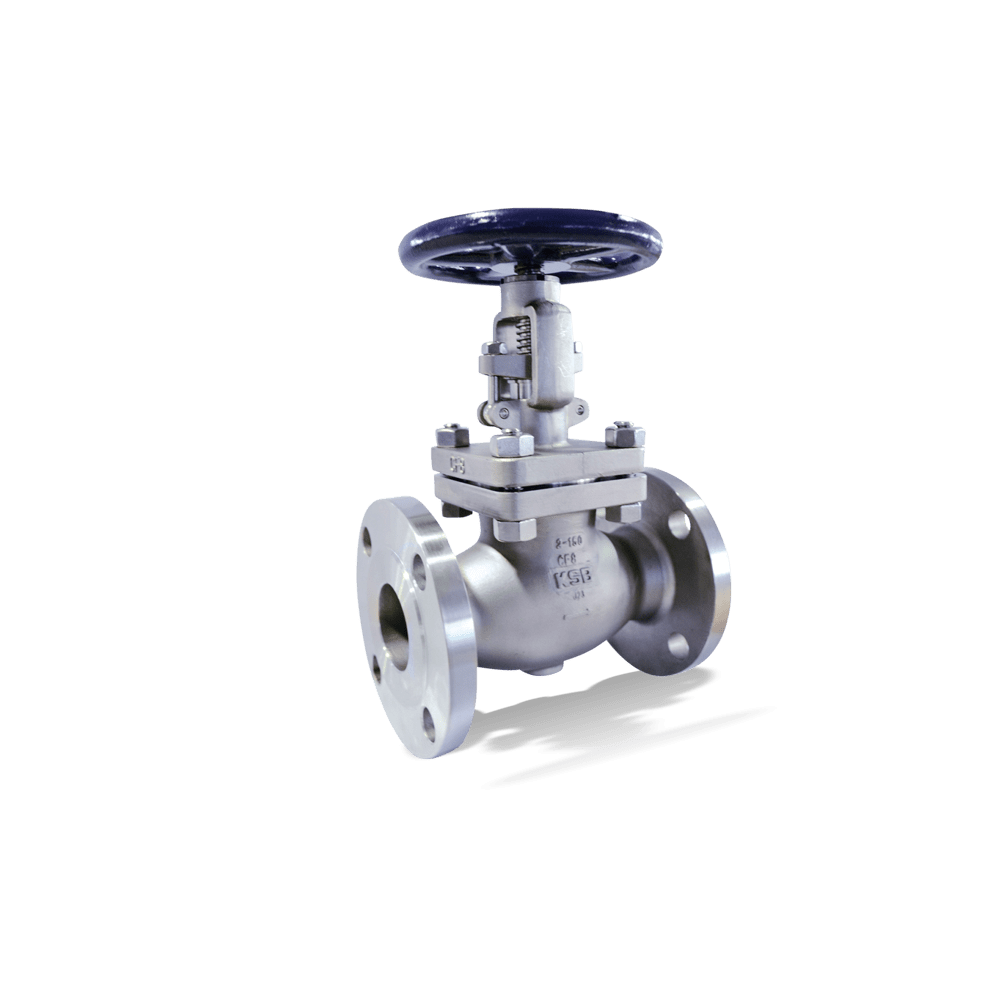

ECOLINE GLV 150-300
Globe valve to ANSI/ASME with flanged ends, cast steel A216 WCB, A351 CF8/CF8M/CN7M, Trims 2/8/10/13 for Class 150/300, with bolted bonnet, outside screw and yoke, graphite gland packing, stainless steel / graphite gasket.
-
Description
Main Applications
– Chemical industry
– Petrochemical industry
– Pipelines and tank farms
– Process engineering
– Power stations
– General industry -
Advantages
– Stem with burnished shank for long service life and high functional reliability of the gland packing
– Packing end rings of the graphite gland packing enable higher compressive force by gland follower and prevent extrusion of middle graphite packing rings.
– Surface finish of 0.2 μm for reduced friction, lower actuating torque and improved sealing capability.
– Two-piece self-aligning gland follower prevents distortion on stem surface.
– Potential internal and external leakage points eliminated by integral back seat and body seat.
– Male/female joint between the body and cover prevents overtightening of the fully confined gasket, resulting in a longer gasket life and improved sealing performance.
– Additional safety and blow-out protection by standard back seat.
– Stem nut free from non-ferrous metals, for versatile application. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300
- Max. nominal size
- NPS 12
- Maximum allowable fluid temperature
- 427 °C
-
