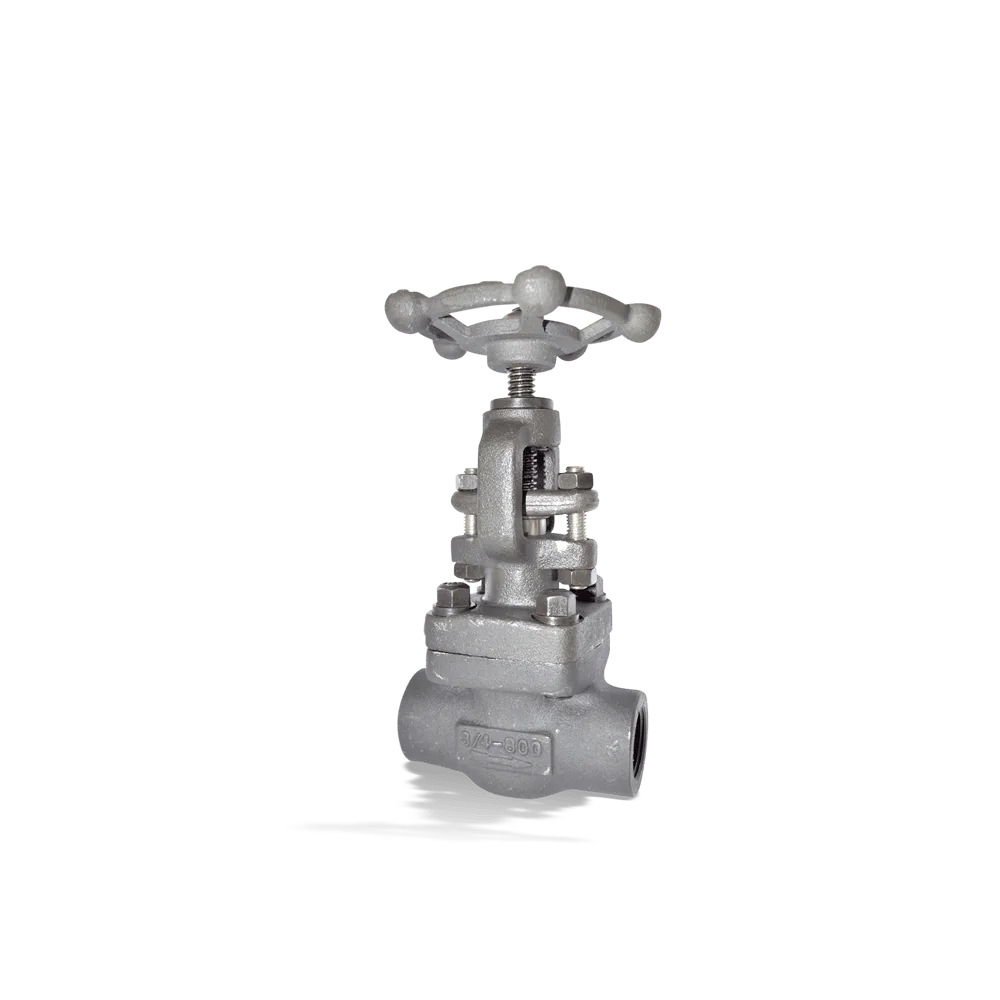

Ksb – ECOLINE GLF 800
Globe valve to ANSI/ASME with threaded sockets (NPT), butt weld ends (BW) or socket weld ends (SW), Trim 8 (Stellite/13 % chrome steel), with bolted bonnet, outside screw and yoke, graphite gland packing, stainless steel/graphite gaskets, available in carbon steel and alloy steel.
-
Description
Main Applications
– Boiler feed applications
– Fossil-fuelled power stations
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Process engineering -
Advantages
– Additional features ensure safe sealing to atmosphere:
- – Serrated bonnet gasket, fully confined to prevent creep.
– Graphite gland packing with packing end rings (male/female joint)– Stem with burnished shank for long service life and high functional reliability of the gland packing
– Two-piece self-aligning gland follower ensures even compression of packing rings.
– Additional safety and blow-out protection by standard back seat.
– Stem nut free from non-ferrous metals, for versatile application.
– Extended maintenance-free service life- – Hard-facing applied to valve disc and seat rings by deposit welding provides extra wear allowance.
– Integral seating surface– Hard-faced body seat and solid disc seat made of wear-resistant and corrosion-proof materials for reliable shut-off and longer service life
-
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- CL 800
- Max. nominal size
- NPS 2
- Maximum allowable fluid temperature
- 593 °C
-
