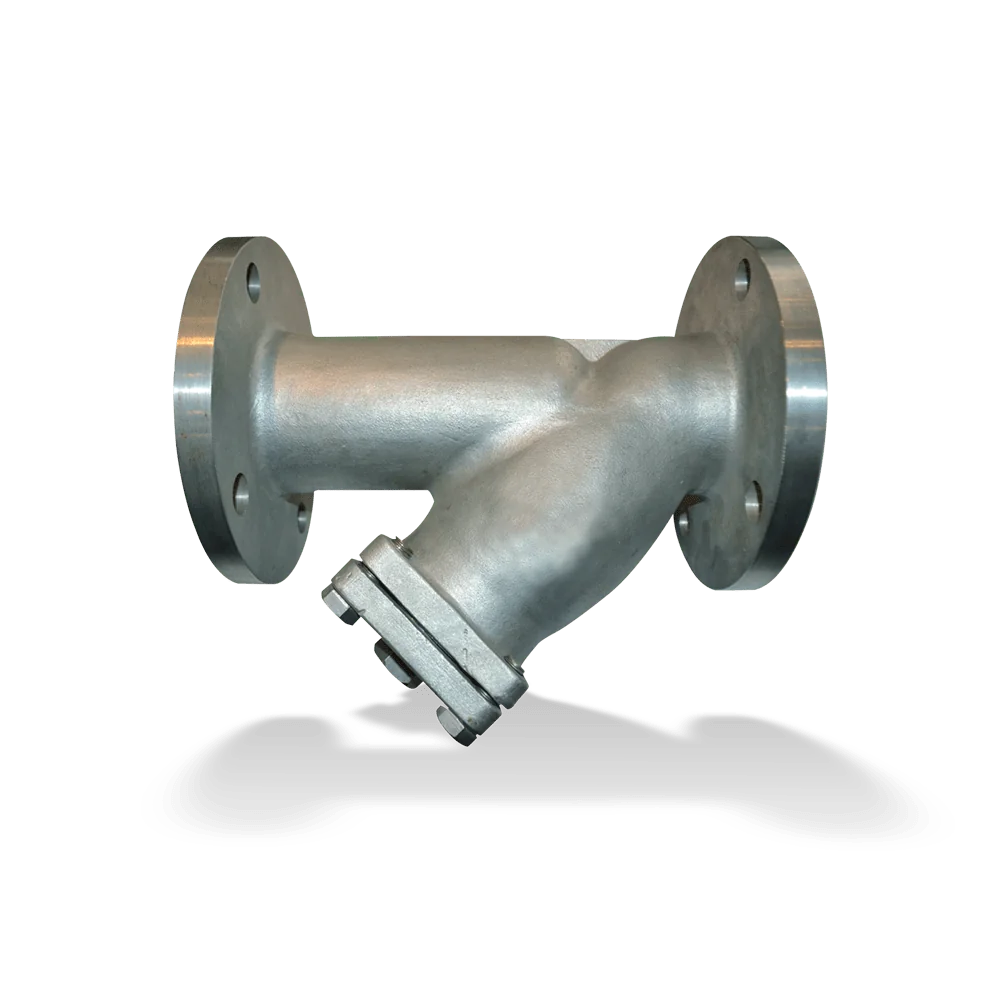

Ksb – ECOLINE FYC 150-600
Strainer to ANSI/ASME with flanged ends, Y-pattern, bolted cover, cast steel A216 WCB, screen made of stainless steel 304, mesh width 1.5 mm.
-
Advantages
– Long service life due to screen made of stainless steel.
– Standard drain plug for easy inspection and drainage of strainer, particularly of strainers with a large nominal size.
– Cost-efficient due to Y-pattern body with hydraulically optimised flow path. Higher flow rates and low pressure loss.
– Range of mesh widths and screen materials available, for versatile applications. -
Suitability
Strainer
-
Technical Features
- Nominal pressure
- CL 150, CL 300, CL 600
- Max. nominal size
- NPS 12
- Maximum allowable fluid temperature
- 427 °C
-
