Ksb – DANAÏS MT II

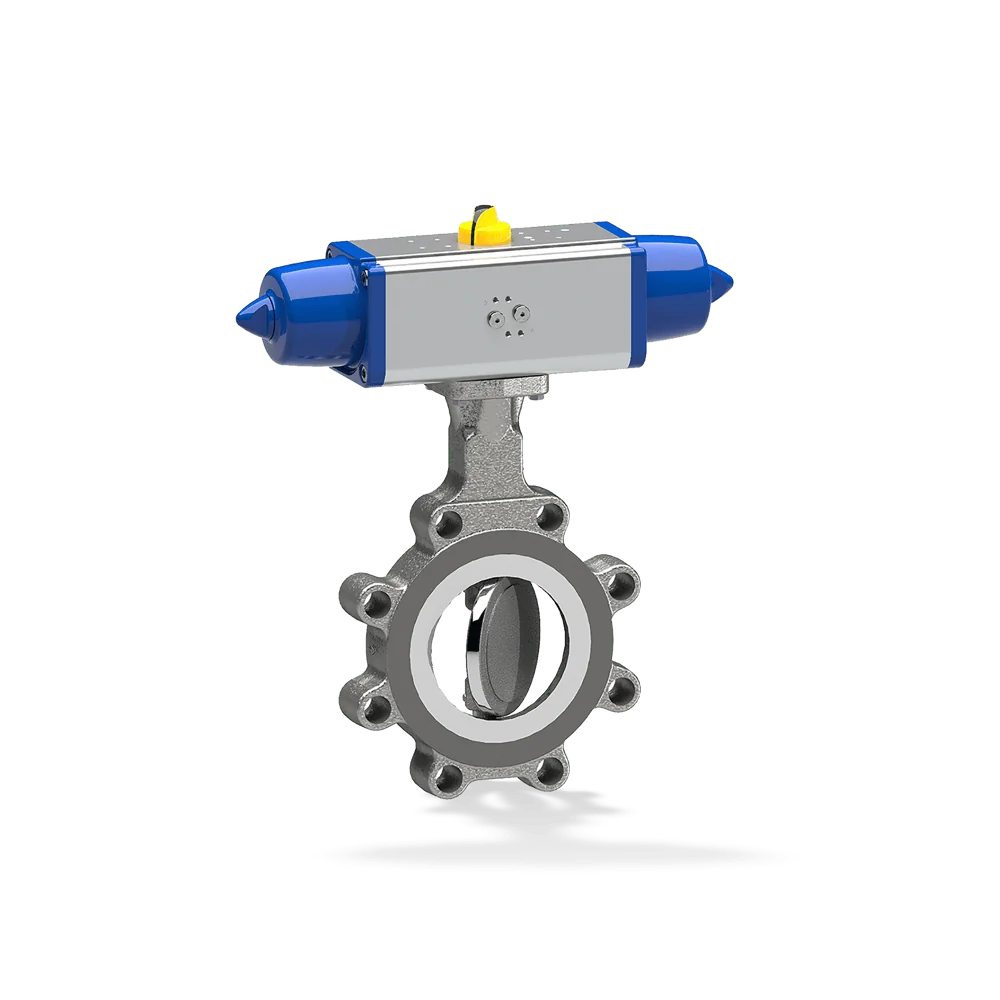

Double-offset butterfly valve with ISO 5211 compliant square shaft end, with plastomer seat or metal seat (fire-safe), without gland packing, maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic actuator, body made of steel or stainless steel. Wafer-type body (T1), full-lug body (T4) or flanged body (T7) with flat or raised faces. Body types T4 and T7 are suitable for dead-end service. Connections to EN, ASME or JIS. Certified to German TA Luft Technical Guidelines on Air Quality Control.
-
Description
Main Applications
– Nuclear power stations
– Hot-water heating systems
– Chemical industry
– Air-conditioning
– Paper industry / pulp industry
– Mining
– Petrochemical industry
– Process engineering
– Pressure boosting
– Industrial recirculation systems
– Industrial gas -
Advantages
– Extra long neck
- – Continuous heat insulation between pipe and valve
– Flange faces with large sealing surfaces
- – allow the use of a wide range of standardised sealing elements
– Patented seat design with two independent sealing systems at the shaft passage:
- – Tight shut-off. Highest sealing capability on the market, even at full pressure rating
– Long service life
– Service-friendly– Body seat protected against abrasion, ensuring a long service life of the seat
– Fire-safe or emission control graphite packing- – Fire-safe valve to BS 6755-2
– The valve meets the requirements specified in TA-Luft (German Technical Guidelines on Air Quality Control, VDI 2440) and standard ISO 15848-1 (CO3 Class A).– Shaft in anti-blow-out design
- – Actuator can be removed safely.
– Protection of persons in the vicinity of the valve– Valve body without separate bottom cover
- – Absolutely tight sealing to atmosphere
– Design with non-metallic components possible, suitable for use with purely gaseous oxygen (compliant with BAM, WHA)
-
Suitability
Butterfly valve
-
Technical Features
- Nominal pressure
- CL 150, CL 300, PN 25
- Max. nominal size
- DN 600
- Maximum allowable fluid temperature
- 260 °C
-
