CONDA-VLC

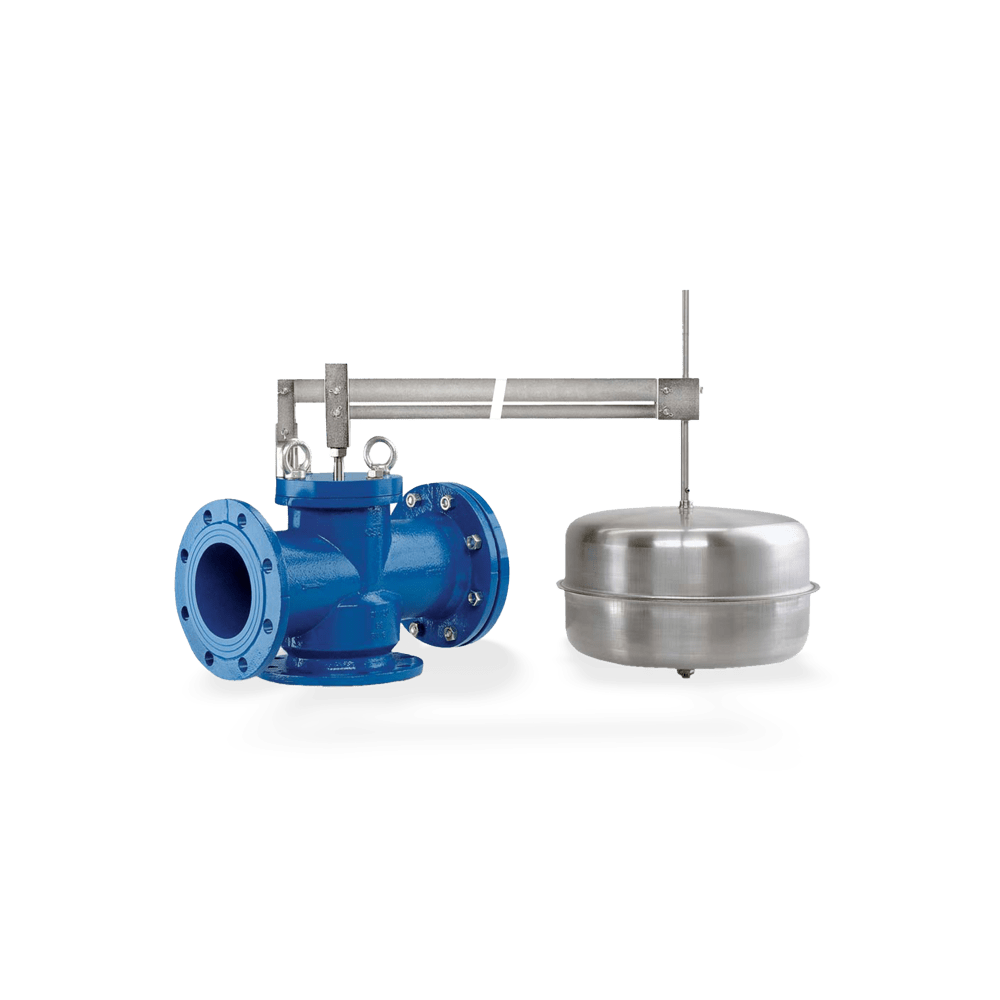

Float valve to DIN/EN for controlling maximum and minimum liquid levels in tanks, with flanged ends (DN 40-300) or threaded ends (DN 25-32), body made of nodular cast iron; valve disc, stem, float and seat made of stainless steel.
-
Advantages
– Inlet-side pressure balancing
– New piston technology with self-cleaning system
– Three-way body supplied with blind flange for use in angle pattern or straight-way pattern
– The lever can be adjusted on the valve axis by simply rotating the rod through 45° or 90° as required. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 16
- Max. nominal size
- DN 300
- Maximum allowable fluid temperature
- 70 °C
-
Downloads
Click below to download
CONDA-VLC (9195.8_EN)
Type series booklet CONDA-VLC (9195.1_EN)
