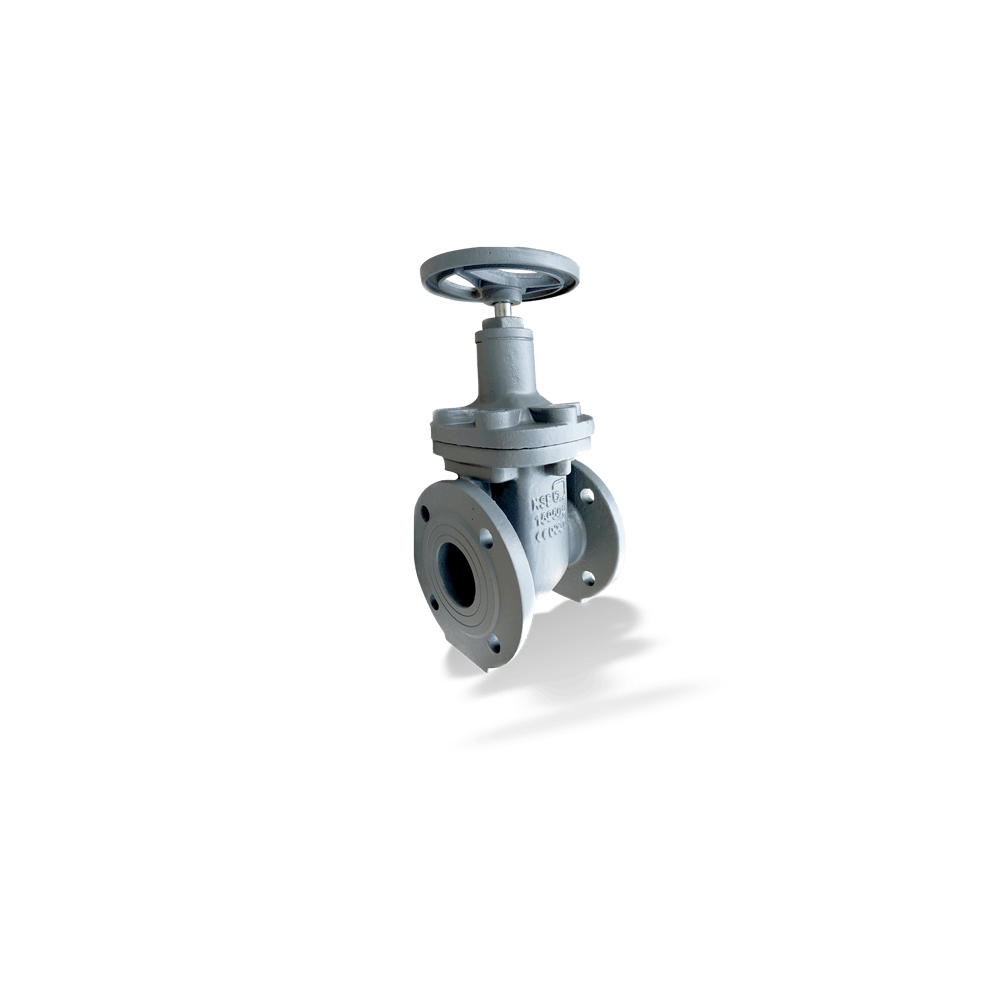

COBRA-SMP
Gate valve to DIN/EN with flanged ends, bolted bonnet, metal-seated, rotating stem, inside screw, body and flexible wedge made of nodular cast iron, stem and seats made of stainless steel.
-
Description
Main Applications
– Domestic water supply
– Air-conditioning systems
– Cooling circuits
– Hot-water heating systems
– Water treatment
– Water supply systems -
Advantages
– Two-piece self-aligning gland follower ensures even compression of packing rings.
– Stem nut made of nickel steel: corrosion-resistant in ammonia atmosphere
– Hard-faced back seat bush: additional stem seal when valve is fully open; blow-out protection
– Stem with burnished shank: long service life of the gland packing, improved fugitive emissions performance -
Suitability
Gate valve
-
Technical Features
- Nominal pressure
- PN 16
- Max. nominal size
- DN 300
- Maximum allowable fluid temperature
- 110 °C
-
Downloads
Click below to download
COBRA-SMP (8193.8_EN)
Type series booklet COBRA-SMP (8193.1_EN)
