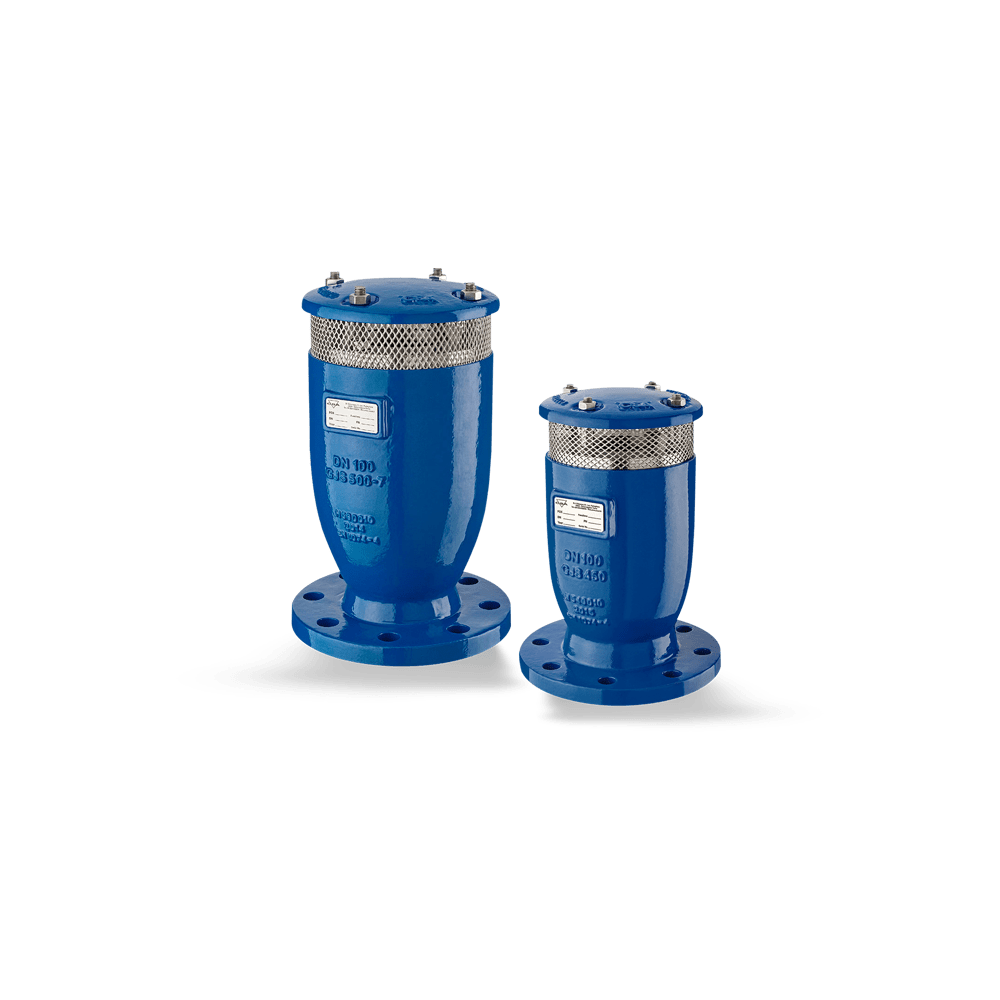

BOAVENT-SVF
Automatic air valve with one float and three functions. With flanged ends (DN 25-300R) or threaded ends (DN 25-150), body made of nodular cast iron (PN 16-40) or carbon steel (PN 64), single-chamber design with polypropylene float. The air valve ensures proper operation of piping systems. It is specially designed to allow the entry and discharge of large volumes of air and the release of air pockets in working conditions.
-
Advantages
– The air valve ensures proper operation of the piping system, allowing the entry and discharge of large volumes of air during filling and draining operations and release of air pockets in working conditions.
– Drain port for inspection and maintenance
– Float comprising two overlapping cylinders made of polypropylene, linked by a patented vent system made of AISI 316.
– Anti-water hammer mechanism can be retrofitted without removing the air valve from the piping.
– The air valve can be serviced without removing it from the piping. -
Technical Features
- Nominal pressure
- PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 70 °C
-
