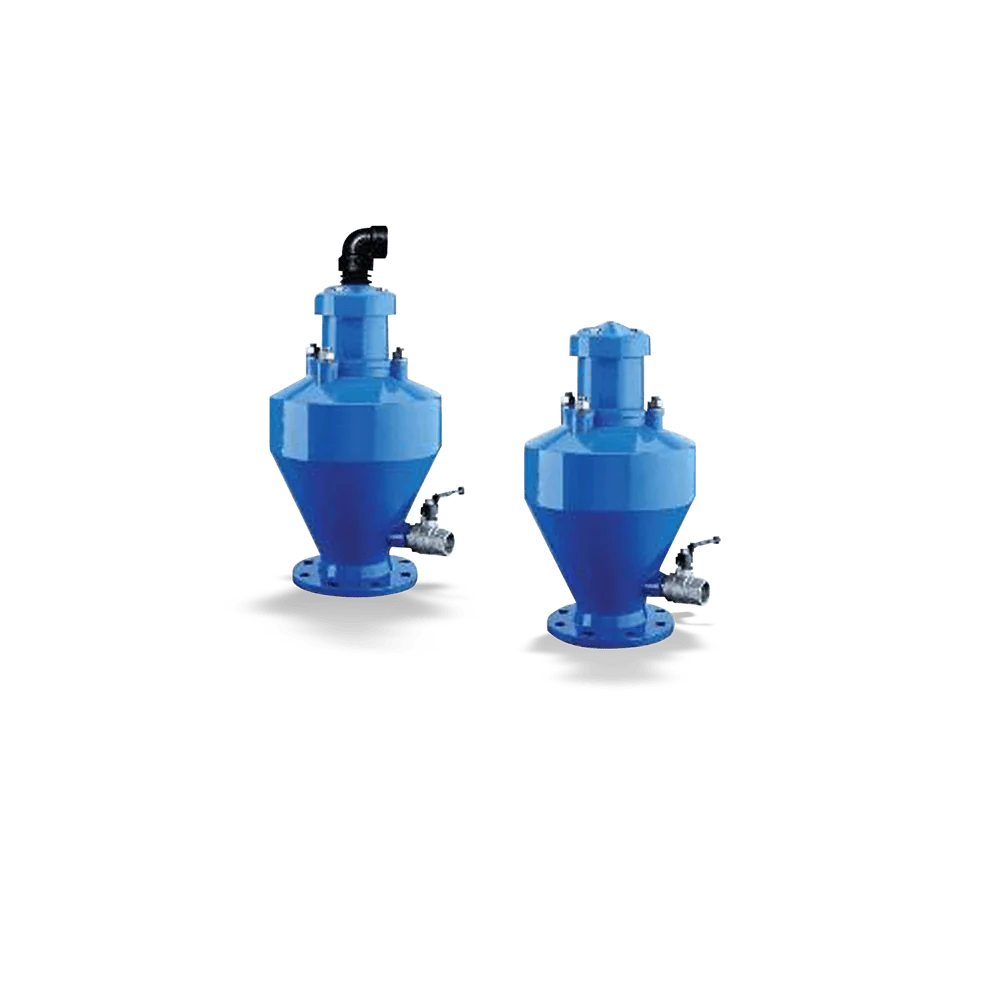

BOAVENT-SVA
Automatic air valve with one float and three functions. With flanged ends or threaded ends, body made of nodular cast iron, single-chamber design with polypropylene float. The air valve ensures proper operation of piping systems. It is specially designed to allow the entry and discharge of large volumes of air and the release of air pockets in working conditions.
-
Advantages
– The air valve ensures proper operation of the sewage piping system, allowing the entry (in the event of a burst pipeline or during drainage operations) and discharge (during filling operations) of large volumes of air and the release of air pockets in working conditions.
– Drain port for inspection and maintenance
– The air valve can be serviced without removing it from the piping.
– Deposits are prevented by the steeply sloping walls of the large lower body section.
– Air release system made of AISI 316
– The cap protects the air release mechanism from fluid spurting out during rapid filling operations. -
Technical Features
- Nominal pressure
- PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 60 °C
-
