Ksb – BOACHEM-ZXA

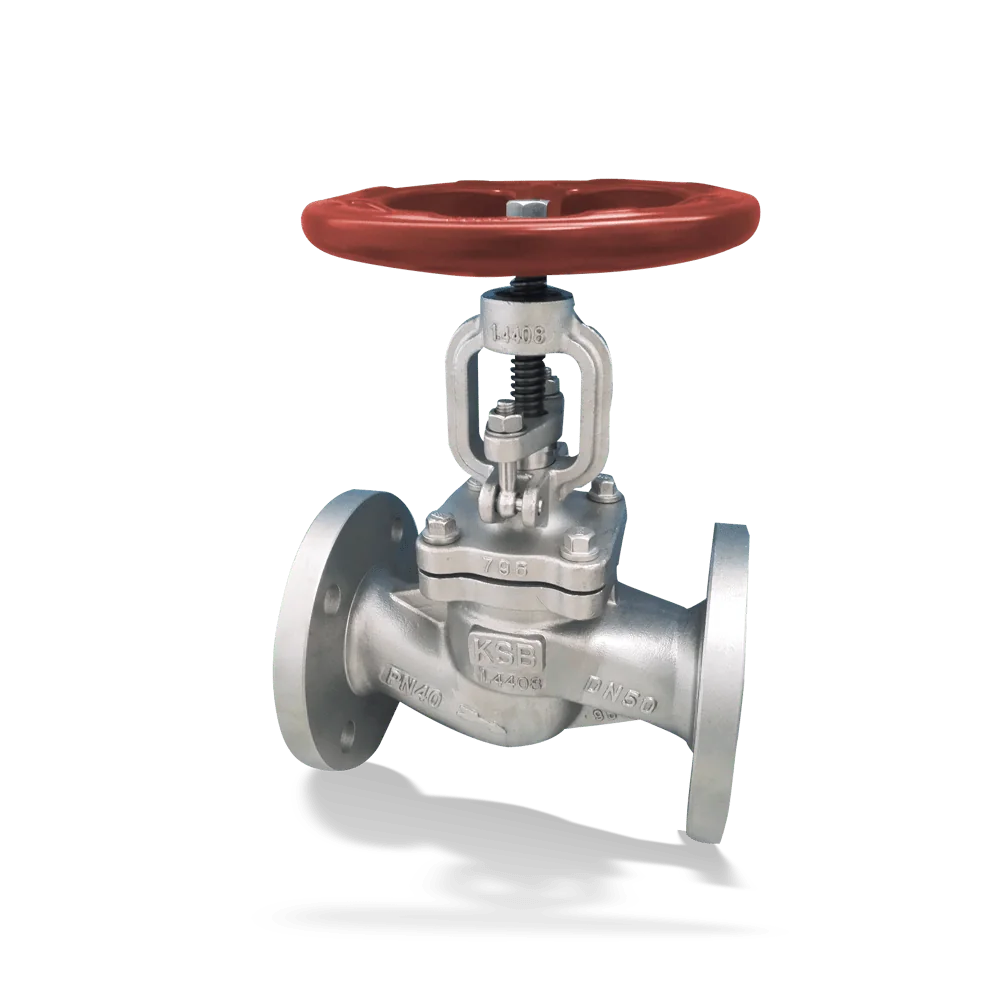

Globe valve to DIN/EN with flanged ends, body made of stainless steel, gland packing, rotating stem, with on/off disc or throttling plug.
-
Advantages
– Longer service life
- – Sealed to atmosphere by gland packing and stem with burnished shank
– Valve disc guided to prevent stem vibration (on large valve sizes)– Reliable sealing of body-bonnet joint
- – Bonnet gasket fully confined to prevent creep
– Added safety
- – Back seat prevents stem blow-out.
– Suitable for various installation positions
- – Guided disc design (of large valve sizes) allows valve installation in any position (also with horizontal stem).
– Suitable for high differential pressures
- – Version with pilot plug (on large valve sizes) for valve duties up to the nominal pressure; no limitations for high differential pressures
-
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 10, PN 16, PN 25, PN 40
- Max. nominal size
- DN 400
- Maximum allowable fluid temperature
- 400 °C
-
