BOA-Systronic ePIC

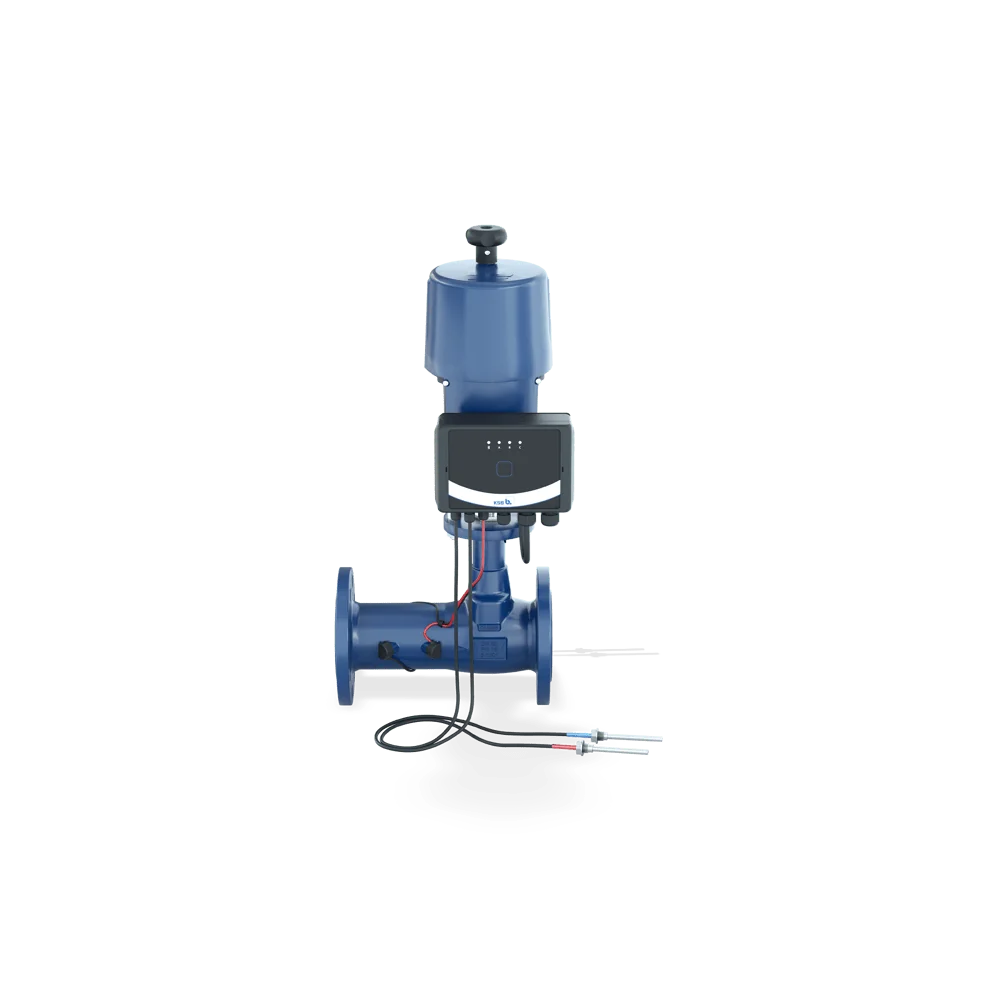

Smart and pressure-independent measurement and control valve (2-way energy valve) for monitoring and controlling flow direction, volume flow rate, supply and return temperature, thermal output and quantity of heat as well as automating the hydraulic balancing process. With integrated ultrasonic flow rate measurement and temperature sensor not in contact with the fluid handled; includes: 2 additional Pt1000 temperature sensors for measuring the supply and return temperature, integrated basic control functions (position, flow rate, temperature, thermal output), integrated process optimisation functions (delta-T management and limitation features). Also available with electrostatic plastic coating (EKB) and DVGW-certified for drinking water.
-
Description
Main Applications
– Hot-water heating systems
– Air-conditioning systems
– Ventilation systems
– Cooling circuits
– Local heating and district heating
– Drinking water supply
– Energy monitoring -
Advantages
– All-in-one valve with many functions: Shut-off, control, process monitoring, process controller incl. the most common, pre-programmed control functions and optimisation functions
– Standard face-to-face length to EN 558/1 for easy replacement of installed valves
– Universal use: Large range of nominal sizes (DN 15 to DN 200)
– Measuring range up to a flow velocity of 4 m/s
– Suitable for water and water/glycol mixtures (glycol content ≤ 60 %)
– Maximum process and cost transparency through comprehensive monitoring (flow rate, supply temperature, return temperature, thermal output, and quantity of heat)
– Hydraulic balancing ensured in all load scenarios by pressure-independent, dynamic control
– Safe integration in the building management system via analog interface and Modbus interface
– Easy and intuitive commissioning per KSB FlowManager app or KSB ServiceTool
– Easy to operate with direct measurement and external sensors (leakage-free)
– High functional reliability as measurement is little affected by sedimentation and contamination.
– Minimised pressure loss and high flow rates due to hydraulically favourable flow passage.
– Plastic-coated EKB version for industrial cooling circuits and drinking water, DVGW-tested (DN 25 to DN 100)
– Maintenance-free design with stem sealed by EPDM profile ring
– Large choice of Kvs values (configurable range)
– Ideal for diverse control tasks: Integrated process controller with pre-programmed control functions for position, flow rate, temperature and thermal output (heating, ventilation, air-conditioning) -
Technical Features
- Nominal pressure
- PN 16
- Max. nominal size
- DN 200
- Maximum allowable fluid temperature
- 120 °C
-
Downloads
Click below to download
BOA-Systronic ePIC (7139.021_EN)
Revit-data BOA-Systronic ePIC (7139.9210_XX)
