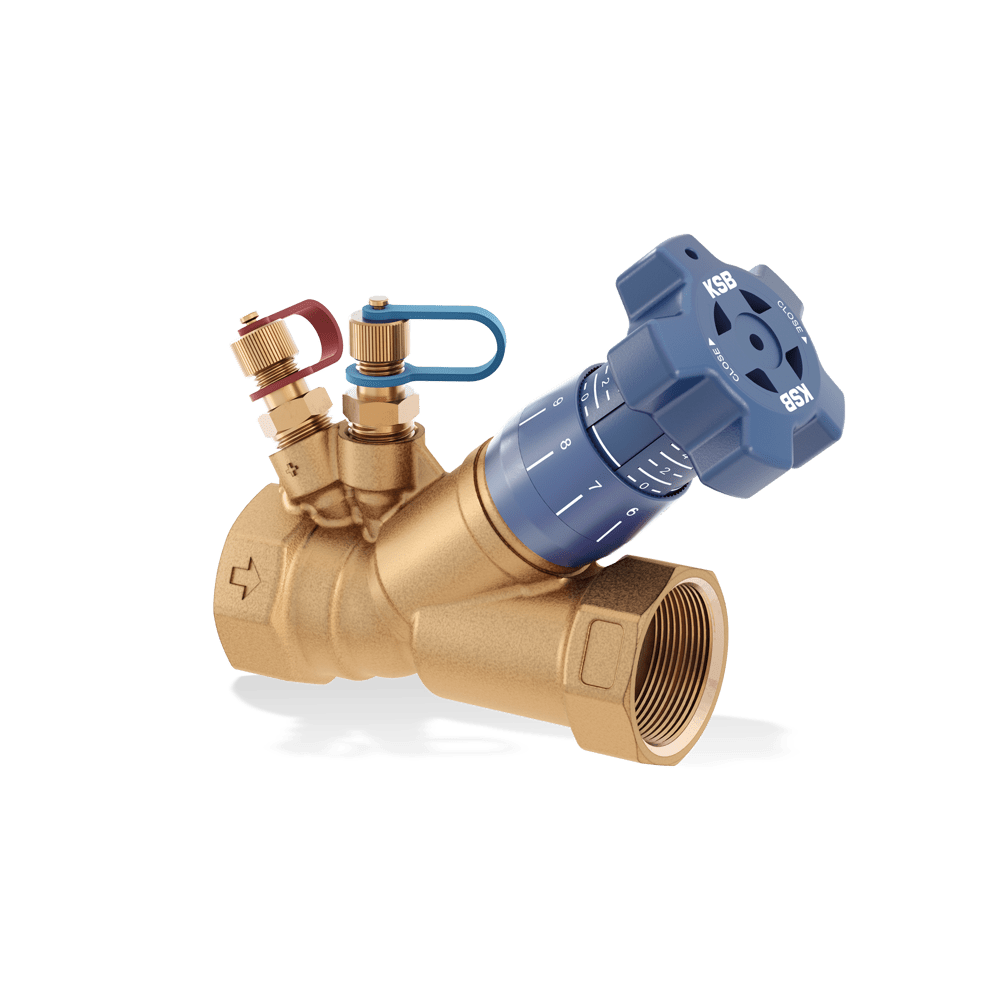

BOA-Control SBV
Maintenance-free balancing and measurement valve with female threaded ends, Y-pattern, continuous presetting, with position indicator readable from all angles (360°). Includes travel stop and 2 measurement ports with fixed measuring orifice (tolerance +/- 5 %) for measuring pressure, differential pressure and flow. Minimum space requirements thanks to non-rising handwheel and all functional parts being positioned on the same side as the handwheel.
-
Advantages
– The flow rate can be precisely adjusted and read from all angles as the scale on the handwheel is printed on all sides.
– Materials suitable for all applications in heating or cooling systems
– Suitable as a partner valve for differential pressure regulators by connecting a capillary tube
– Fixed orifice plate for flow measurement independent of valve travel position -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 25
- Max. nominal size
- DN 50
- Maximum allowable fluid temperature
- 120 °C
-
