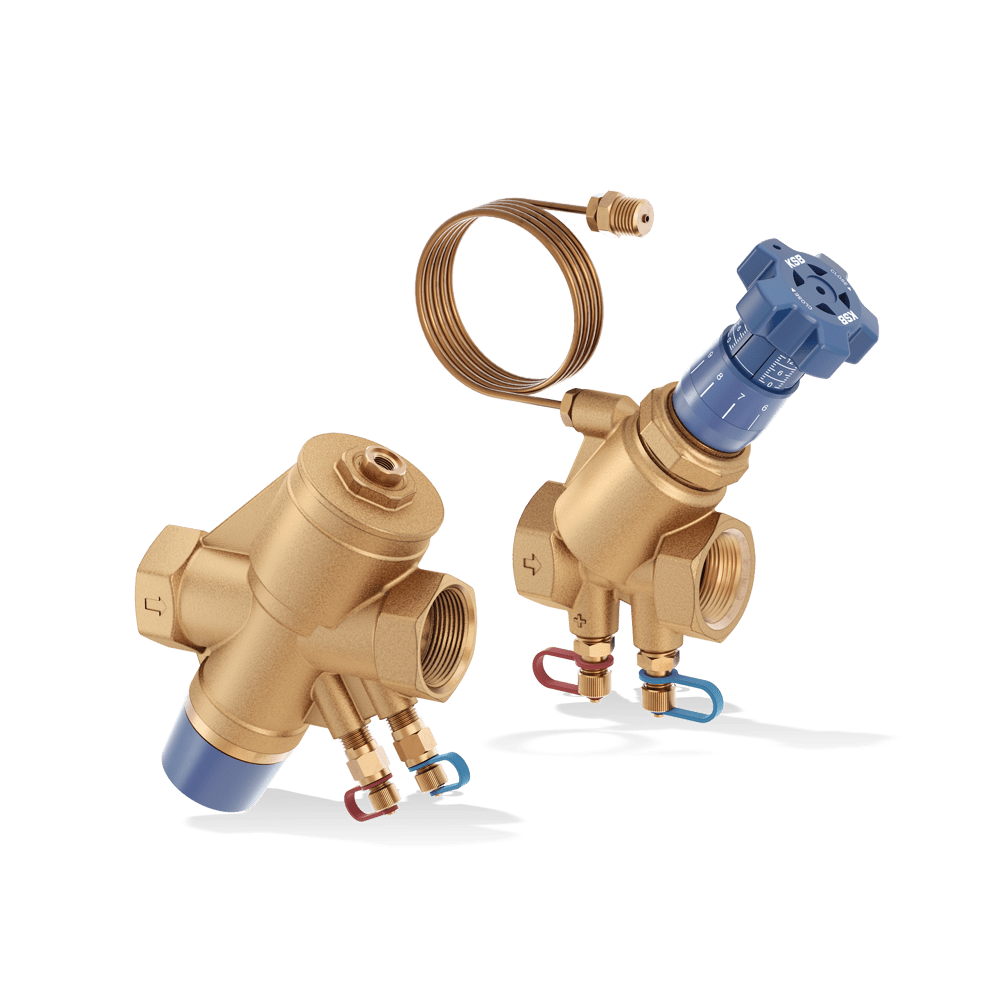

BOA-Control DPR
Differential pressure control valve / proportional control valve for the constant control of an adjustable differential pressure setpoint without auxiliary energy, with threaded ends (DN 15 - 50) or flanged ends (DN 65 - 100). Setpoint can be adjusted continuously and read from the outside at any time. The valve closes automatically with rising pressure. Includes quick-measurement ports for measuring pressure loss. Available in various pressure control ranges (LP/HP) from 5 to 80 kPa (threaded ends) and from 80 to 160 kPa (flanged ends).
-
Advantages
– Materials suitable for all applications in heating or cooling systems
– Pre-defined valve position facilitates easy flushing (DN 15-50).
– Shut-off function provides tight shut-off (DN 15-25).
– Differential pressure continuously adjustable via handwheel featuring several scales (DN 15-25)
– Straightforward commissioning and initial balancing as system section pressures are independent from each other
– Constant pressure conditions ensure minimised flow noises. -
Suitability
Globe valve
-
Technical Features
- Nominal pressure
- PN 16, PN 25
- Max. nominal size
- DN 100
- Maximum allowable fluid temperature
- 120 °C
-
Downloads
Click below to download
BOA-Control DPR (7137.021_EN)
Declaration of Conformity (0570.8550_EN)
