AKR/AKRS

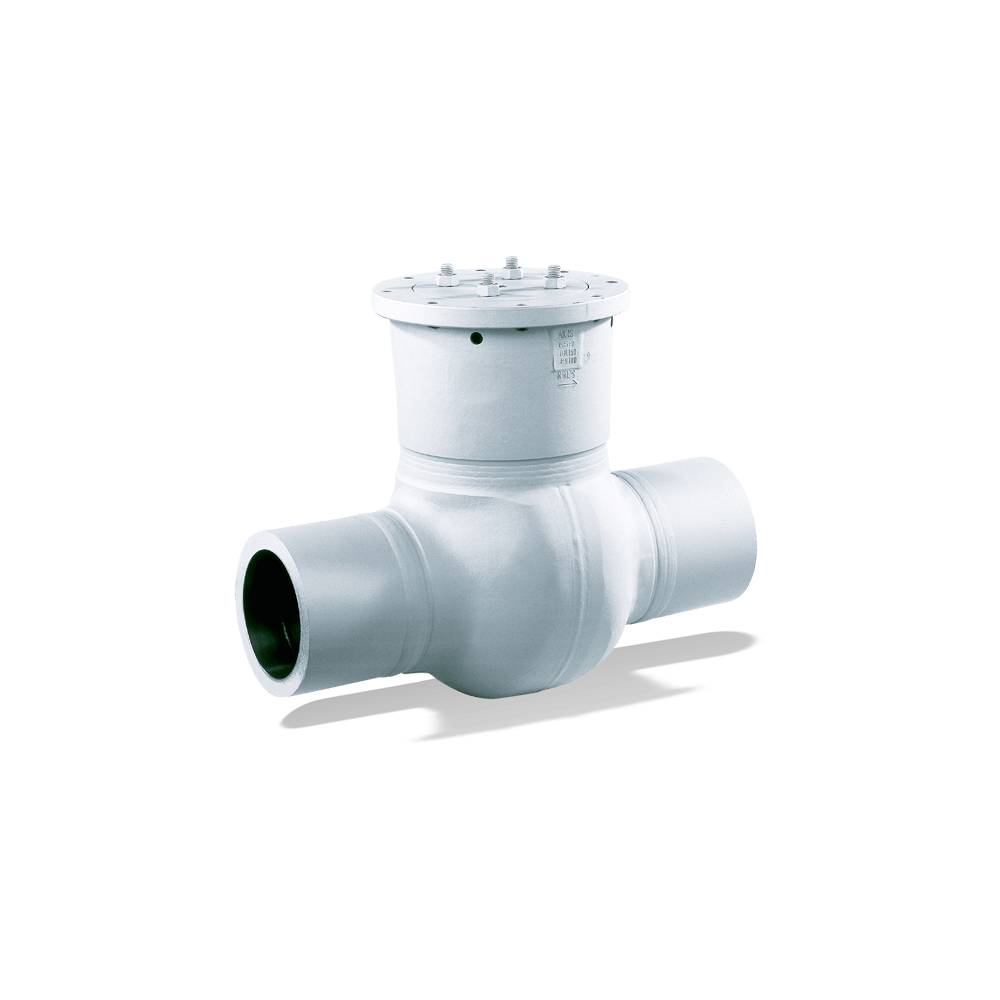

Swing check valve to DIN/EN with flanged ends (AKR) or butt weld ends (AKRS), pressure seal design, internally mounted hinge pin, body of forged and welded construction, seat/disc interface made of wear and corrosion resistant 17 % chrome steel or Stellite.
-
Description
Main Applications
– Fossil-fuelled power stations
– Process engineering
– Boiler feed applications
– Boiler recirculation
– Chemical industry
– Petrochemical industry
– Sugar industry
– Mining
– Descaling units
– Paper industry / pulp industry
– Shipbuilding
– Snow-making systems
– Nuclear power stations -
Advantages
– Added safety due to pressure seal design providing increased sealing to atmosphere: The higher the pressure in the valve body, the tighter the cover joint. Very low risk of leakage, particularly at high pressures and temperatures. Compact design.
– Reliable, tight shut-off and service-friendly design due to flexibly mounted valve disc. Precise alignment of valve disc with body seat; valve disc is easy to replace.
– Hard-faced seat/disc interface made of wear-resistant and corrosion-proof 17 % chrome steel or Stellite for long service life and high functional reliability. -
Suitability
Swing check valve
-
Technical Features
- Nominal pressure
- PN 63, PN 100, PN 160
- Max. nominal size
- DN 300
- Maximum allowable fluid temperature
- 550 °C
-
