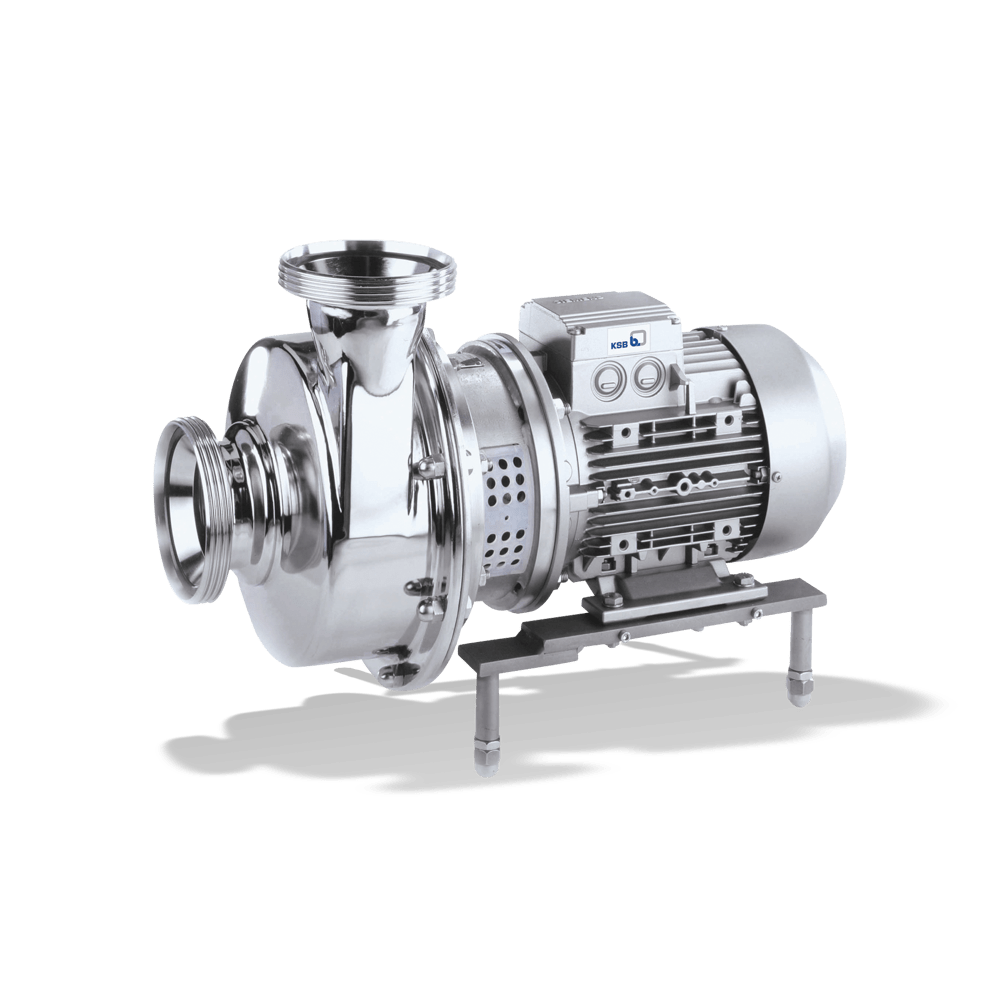

Vitachrom
Service-friendly non-self-priming single-stage hygienic close-coupled pump in back pull-out design with magnetless KSB SuPremE motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable speed system. The pump features a semi-open impeller and electropolished surfaces. It is very easy to clean by CIP/SIP thanks to its almost complete lack of dead volume or narrow clearances. Its wetted components are made of 1.4404/1.4409 (AISI 316L/CF3M) stainless steel. All materials comply with FDA standards and EN 1935/2004. ATEX-compliant version available.
-
Advantages
– Easy to clean with very little dead volume and excellent flushing capability
– Service-friendly design, easy and fast to dismantle
– Can be driven by all common standardised motors via stub shaft
– High surface quality thanks to special polishing techniques
– Corrosion-resistant design with high-quality stainless steel 1.4301
– Operating costs reduced by trimming the nominal impeller diameter to match the specified duty point
– Highly suitable for CIP/SIP routines -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 340 m3/h
- Max. head
- 100 m
- Max. allowed working pressure
- 12 bar
- Maximum allowable fluid temperature
- 110 °C
-
