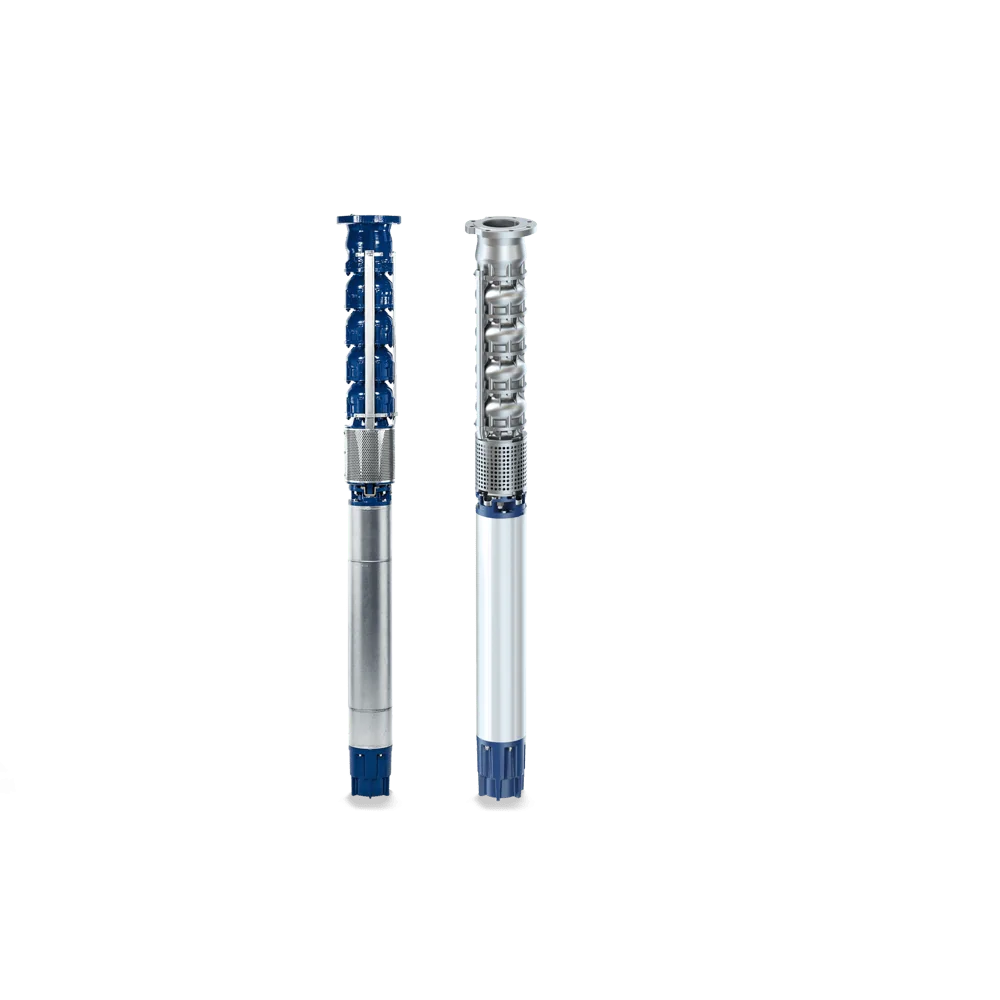

Ksb – UPA 200 / UPA S 200
Single-stage or multistage single-entry centrifugal pump in ring-section design for vertical or horizontal installation. Optionally available with lift check valve or connection branch. For well diameters of 8 inches and above.
-
Description
Main Applications
– Water supply systems
– Spray irrigation systems
– Mining
– General irrigation systems
– Pressure boosting
– Fire-fighting systems
– Lowering groundwater levels -
Advantages
– High efficiencies through optimised hydraulic design
– High operating reliability and a long service life by integrated sand separator, robust wear rings and enclosed pump bearings
– Reliable operation by anti-jam lift check valve
– High flexibility by vertical, horizontal and angular installation options
– Durable, completely maintenance-free design with hydrodynamic bearings
– Easy to install with service-friendly hydraulic system design
– Low noise level -
Suitability
Submersible borehole pump
-
Technical Features
- Max. flow rate
- 1000 m3/h
- Max. head
- 420 m
- Max. allowed working pressure
- 40 bar
- Maximum allowable fluid temperature
- 50 °C
-
