Ksb – RPH

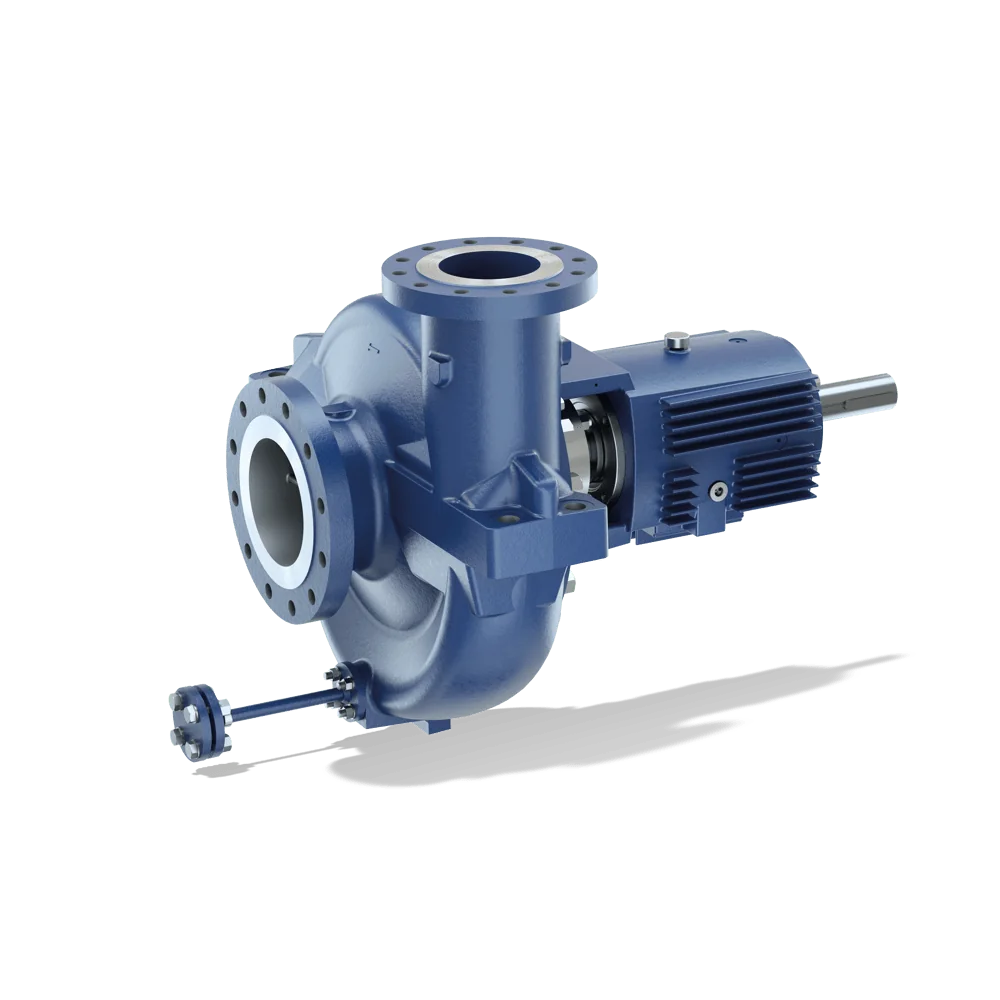

Horizontal radially split volute casing pump in back pull-out design, to API 610, ISO 13709 (heavy duty), type OH2, single-stage, with single-suction radial impeller and centreline pump feet; with inducer if required. ATEX-compliant version available.
-
Description
Main Applications
– Pump for handling the large variety of petroleum products in refineries as well as in the chemical and petrochemical industry.
– Refinery
– Chemical industry
– Petrochemical industry
– Onshore processes and offshore processes -
Advantages
– Double volute from DN 80 (3 in.): Low radial thrust and reduced shaft deflection extend the service life of bearings and mechanical seal.
– Back pull-out design for easy maintenance
– Heatable casing covers optionally available for high-temperature applications
– Wide variety of flanges to all standards up to PN 100 equivalent (ASME Class 600)
– Max. shaft diameter in acc. with API 610 makes for very long service life of mechanical seal
– Dimensioned for longer service life than specified by API 610, reducing maintenance expenditure and work
– Tandem bearing arrangement optionally available to absorb high axial forces
– Cast steel bearing brackets with integrated cooling fins enable higher fluid temperatures and reduce bearing temperatures.
– Optional fan impeller: no cooling water supply required for high temperatures
– The seal chamber to API 610 accommodates all mechanical seals to API.
– Individual adjustment of axial thrust balancing for maximum bearing life -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 4800 m3/h
- Max. head
- 270 m
- Max. allowed working pressure
- 110 bar
- Maximum allowable fluid temperature
- 450 °C
-
