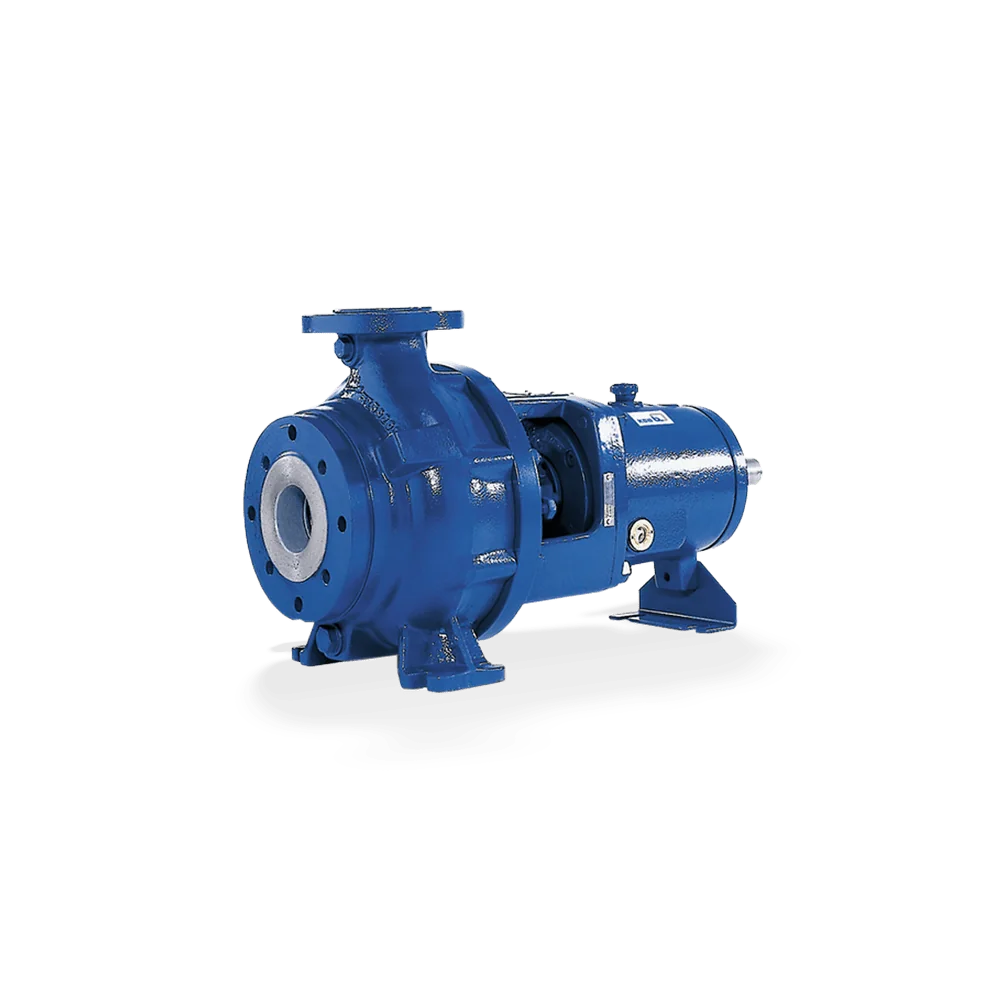

Ksb – KWP
Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and vortex impeller. ATEX-compliant version available.
-
Description
Main Applications
– Paper industry / pulp industry
– Sugar industry
– Food industry / beverage industry
– Fossil-fuelled power stations
– Chemical industry
– Petrochemical industry
– Flue gas desulphurisation
– Coal upgrading plants
– Industrial waste water treatment systems
– Seawater desalination/reverse osmosis -
Advantages
– Easy to service thanks to back pull-out design
– Safe design: all pressure-retaining components cast with extra corrosion/wear allowance.
– Standard pump with suction-side wear plate in wear-resistant diagonal gap design
– High levels of efficiency with channel-type impeller; impeller with front vanes and diagonal gap; back vanes reduce axial thrust
– Dry shaft: no special materials required
– Bearing assembly in reinforced, adjustable design
– Mechanical seal fitted in conical shaft seal chamber for optimum circulation around the mechanical seal, venting and drainage of the shaft seal chamber -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 15000 m3/h
- Max. head
- 140 m
- Max. allowed working pressure
- 10 bar
- Maximum allowable fluid temperature
- 140 °C
-
