INVCP

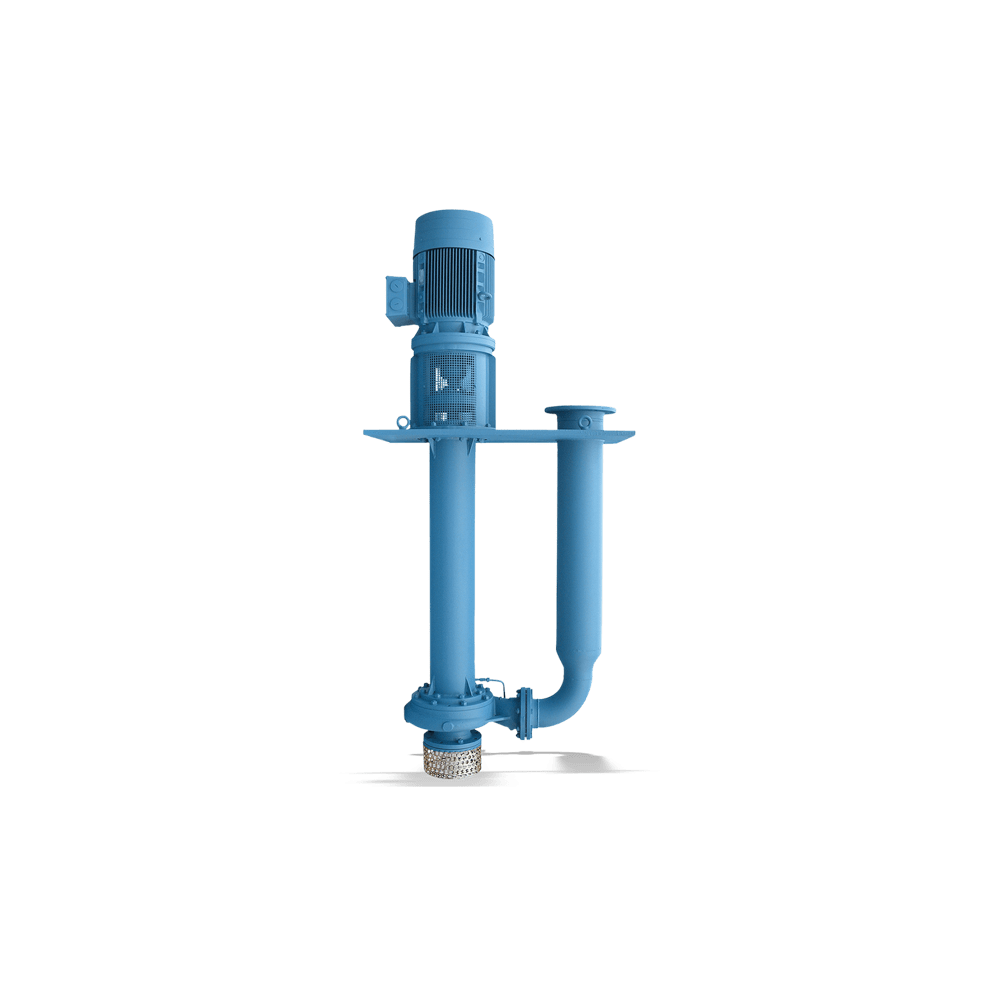

Vertical immersion pump for wet or dry installation, available with closed or semi-open impeller. Supplied with discharge pipe extending above the baseplate (INVCP) or without discharge pipe (INVCN). ATEX-compliant version available.
-
Advantages
– Oversized bearings make for long-term reliability.
– Different pump designs and materials for a wide range of applications, e. g. bearing lubricated with fluid supplied from the outside
– Clogging is prevented; suction problems are prevented caused by hindered flow through strainers
– Easy-to-install motor due to flexible coupling -
Suitability
Vertical shaft submersible pump
-
Technical Features
- Max. flow rate
- 1600 m3/h
- Max. head
- 100 m
- Max. allowed working pressure
- 10 bar
- Maximum allowable fluid temperature
- 100 °C
