Ksb – ILN

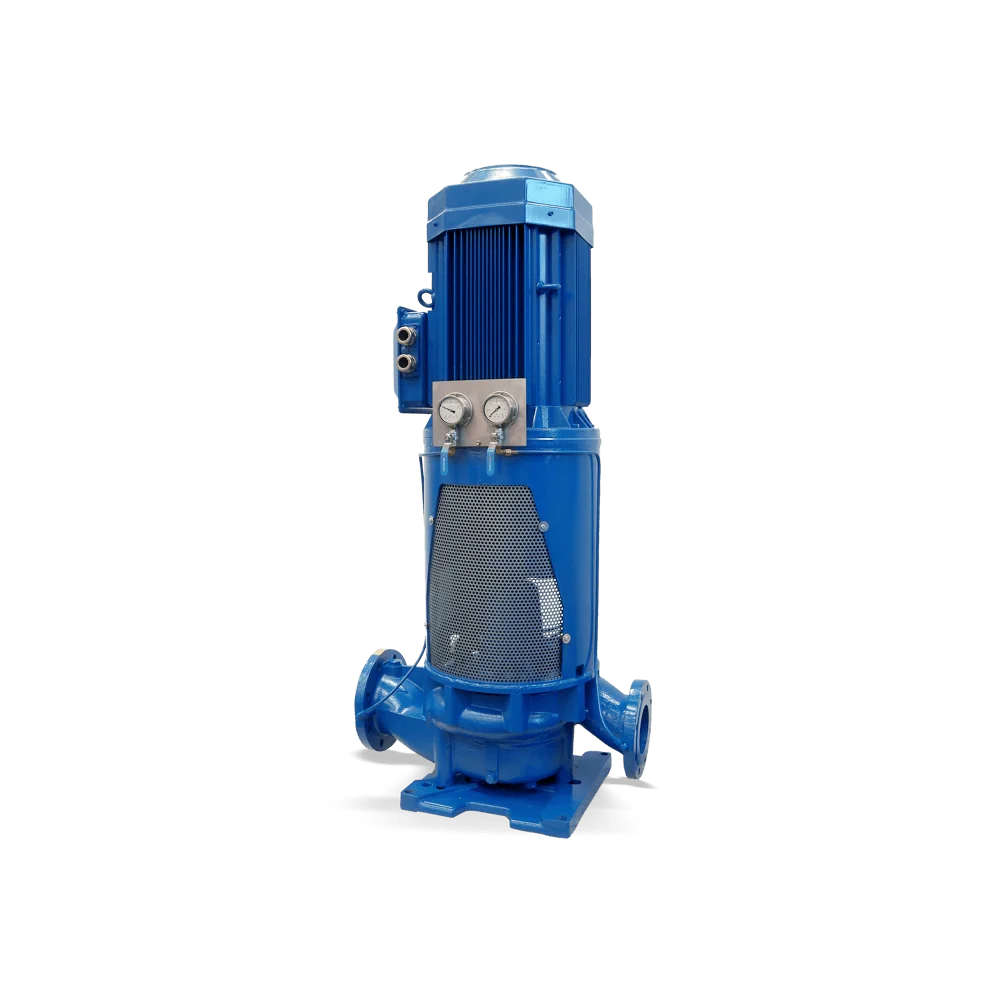

Vertical in-line centrifugal pump with closed impeller and mechanical seal. ILNS fitted with an auxiliary vacuum pump, ILNE with ejector. Back pull-out design allows the impeller to be dismantled without removing the piping and the motor. ATEX-compliant version available.
-
Description
Main Applications
– Heating systems
– Cooling circuits
– Air-conditioning systems
– Marine applications
– Service water supply systems
– Water supply systems
– Cleaning systems
– Industrial recirculation systems -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 3700 m3/h
- Max. head
- 162 m
- Max. allowed working pressure
- 10 bar
- Maximum allowable fluid temperature
- 70 °C
-
