Ksb – HPK-L

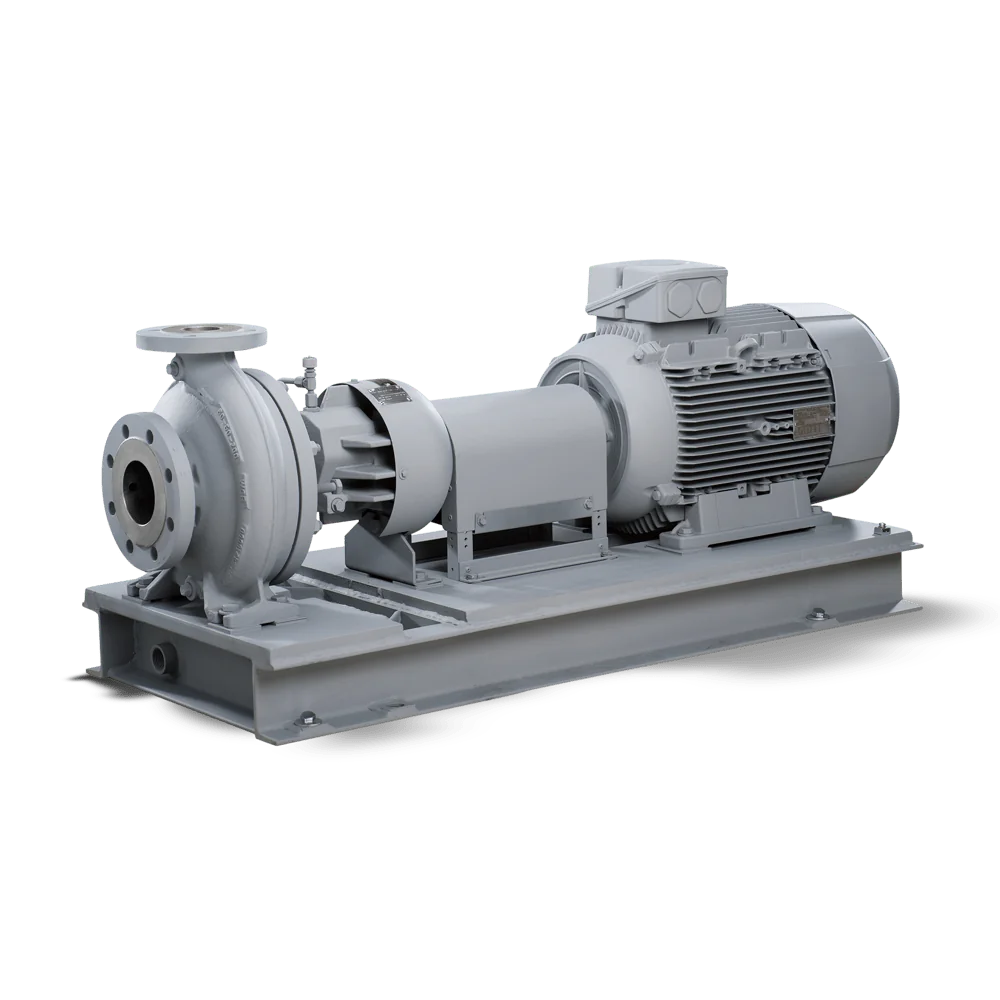

Horizontal radially split volute casing pump in back pull-out design to ISO 2858 / ISO 5199, single-stage, single-entry, with radial impeller. Equipped with heat barrier, seal chamber air-cooled by integrated fan impeller, no external cooling. ATEX-compliant version available.
-
Description
Main Applications
– Pump for handling hot water and organic or synthetic heat transfer fluids in piping or tank systems.
– Heating systems
– Forced circulation boilers
– District heating
– Heat transfer systems -
Advantages
– Low temperature in the mechanical seal chamber; no cooling water required thanks to air-cooled bearing bracket with heat barrier.
– Increased operating reliability of versions for heat transfer applications by an optional two mechanical seals preventing leakage.
– Higher efficiencies than the previous HPK-L model by continued development of the flow passage within the hydraulic system.
– Optimised venting of mechanical seal chamber by patented VenJet profile. -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 1400 m3/h
- Max. head
- 233 m
- Max. allowed working pressure
- 40 bar
- Maximum allowable fluid temperature
- 400 °C
-
