Ksb – CPKNO

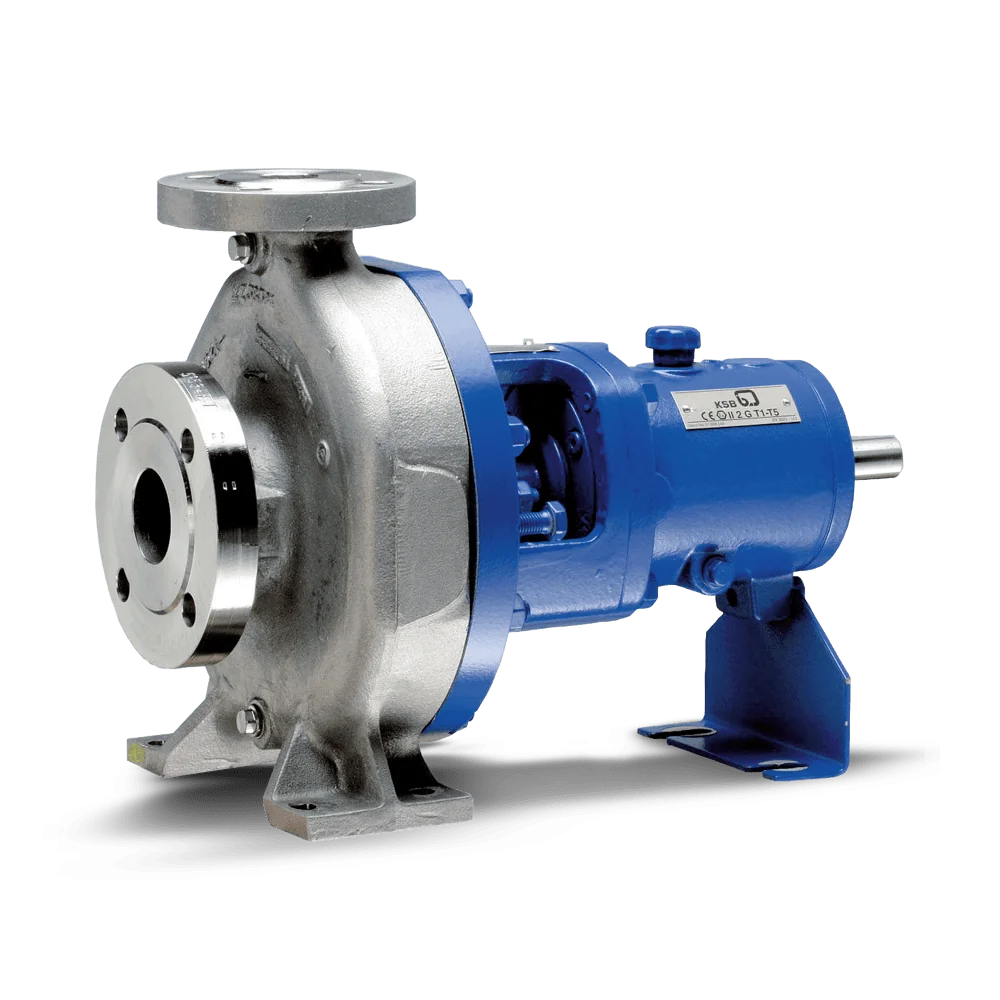

Horizontal volute casing pump in back pull-out design, with semi-open impeller, single-stage, to ISO 2858 / ISO 5199. ATEX-compliant version available.
-
Description
Main Applications
– Chemical industry (aggressive / other liquids)
– Petrochemical industry (aggressive / other liquids)
– Alcohol industry
– Fossil-fuelled power stations
– Food industry / beverage industry
– Seawater desalination/reverse osmosis
– Paper industry / pulp industry
– Refinery
– Sugar industry
– Polymerising fluids
– Fluids containing a small amount of gas
– General industry -
Advantages
– Hydraulic characteristics optimised for excellent efficiency and NPSH, ensuring energy-efficient and environmentally friendly use of resources
– Lower investment costs as duty points required can be achieved with smaller pump sizes
– Lower operating costs due to reduced energy consumption, optimised spare parts concept and hard-wearing, service-friendly design
– Flexible use due to modular design regarding hydraulic system materials, sealing elements, bearing brackets, coupling, baseplate and drive
– Gentle handling of the fluid makes this pump set perfect for polymerising fluids as well as for fluids sensitive to shear forces.
– Semi-open impeller allows use of fluids containing a small amount of gas. -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 900 m3/h
- Max. head
- 150 m
- Max. allowed working pressure
- 25 bar
- Maximum allowable fluid temperature
- 400 °C
-
