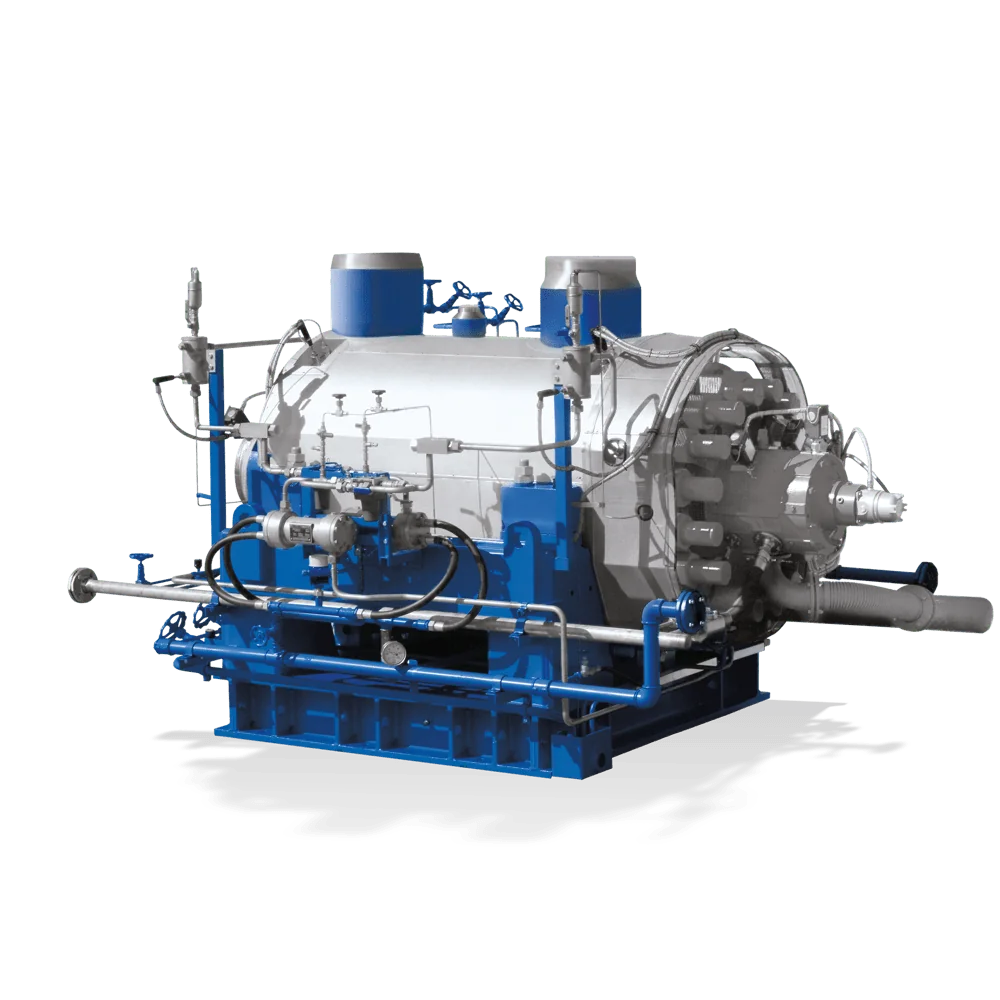

Ksb – CHTC
Horizontal high-pressure barrel-type pumps with radial impellers, single-entry and double-entry, multistage, with flanges or weld end nozzles to DIN and ANSI.
-
Advantages
– High operating reliability:
- – For balancing by double drum: residual axial thrust absorbed by pivoted segmental thrust bearing
– Optimised casing design regarding the distribution of forces
– Adaptation of pump casing to rotor deflection line– Long service life
- – Prevention of wear at the thrust bearing by axial forces being transmitted to the bearing housing via a cardanic ring
– Low NPSH value by using suction impeller as standard– Service-friendly: pump cartridge can be replaced without dismantling the pump, and wear parts can be serviced without opening the pump.
– Reduced operating costs by high efficiency (cellular surface wear rings) -
Suitability
Barrel pull-out pump
-
Technical Features
- Max. flow rate
- 1278 m3/h
- Max. head
- 4000 m
- Max. allowed working pressure
- 400 bar
- Maximum allowable fluid temperature
- 200 °C
-
Downloads
Click below to download
2-page product description CHTC (1860.021_EN)
List of Components, Pump Size 3 (1860.23_EN)
