Amaline

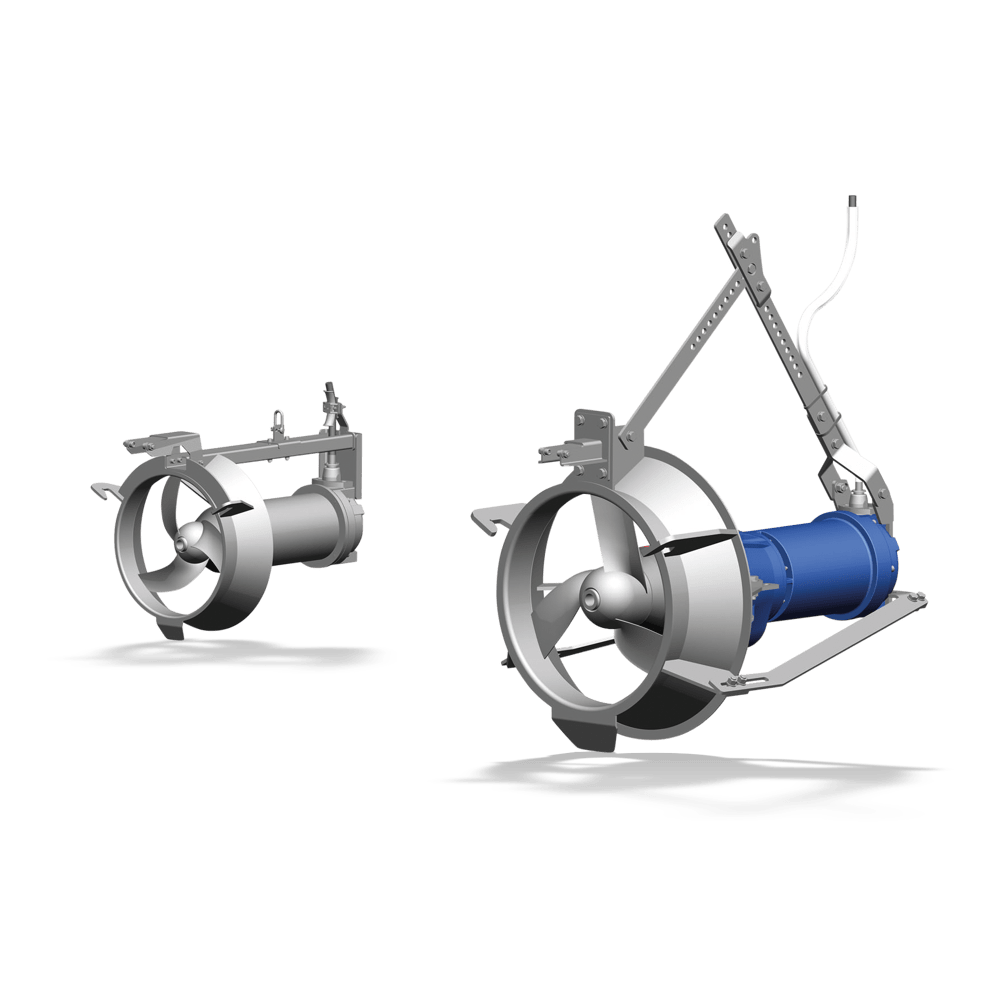

Wet-installed horizontal propeller pump with submersible motor, equipped with direct drive or spur gear, ECB propeller with rigid, fibre-repellent blades, bolt-free connection to the discharge pipe. Explosion-proof version available.
-
Advantages
– Perfectly protected by absolutely water-tight cable gland protecting the motor against moisture
– Motor monitored by temperature sensors to prevent it from overheating
– Easy to install
– Double safety by two bi-directional mechanical seals with oil reservoir filled with environmentally friendly oil
– Leakage chamber between oil chamber and gear unit for high reliability
– Optional: leakage sensor in leakage chamber available for non-explosion-proof version -
Suitability
Submersible motor pump
-
Technical Features
- Max. flow rate
- 6700 m3/h
- Max. head
- 3.5 m
- Max. allowed working pressure
- 16 bar
- Maximum allowable fluid temperature
- 40 °C
-
