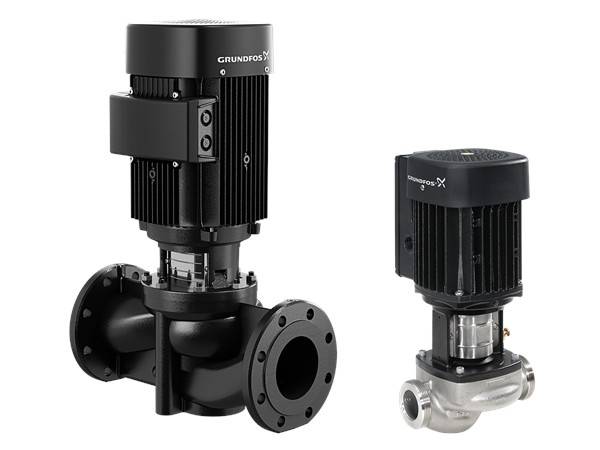

TP (B), (I)
Grundfos TP (B), (I) pumps with pump housing in bronze or stainless steel and are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primally for applications such as hot water recirculation. The pumps are fitted with fixed speed motors.
-
Description
Anti-corrosive Grundfos TP (B)/(I) pumps offer reliability in a challenging environment
With a pump housing in bronze or stainless steel, the TP (B)/(I) vertical in-line pump series is made to resist corrosion in hot water recirculation systems and lightly acidic industrial applications. The housing is built around a close-coupled design, where the pump is separate from the motor. This minimises sensitivity to impurities in the pumped liquid a key factor in the pumps reliable and robust performance.A specially constructed shaft seal chamber optimises water circulation with no need of external piping, extending the life of the shaft seal. Highly efficient and low on energy consumption and noise, TP (B)/(I) pumps are an ideal solution for your most demanding recirculation tasks.
-
Suitability
Commercial heating
Commercial air conditioning
District heating -
Technical Features
Liquid temperature -25 .. 140 °C
Max. flow 90 m³/h
Max. head 27 m
Max. operating 16 bar -
