Pro PDS

Compact, totally enclosed digital pressurisation unit with electronic pressure transducer and user-friendly microprocessor for use on sealed systems in order to provide a minimum system pressure requirement. The correct fluid mix is blended on demand at the time of system top-up.

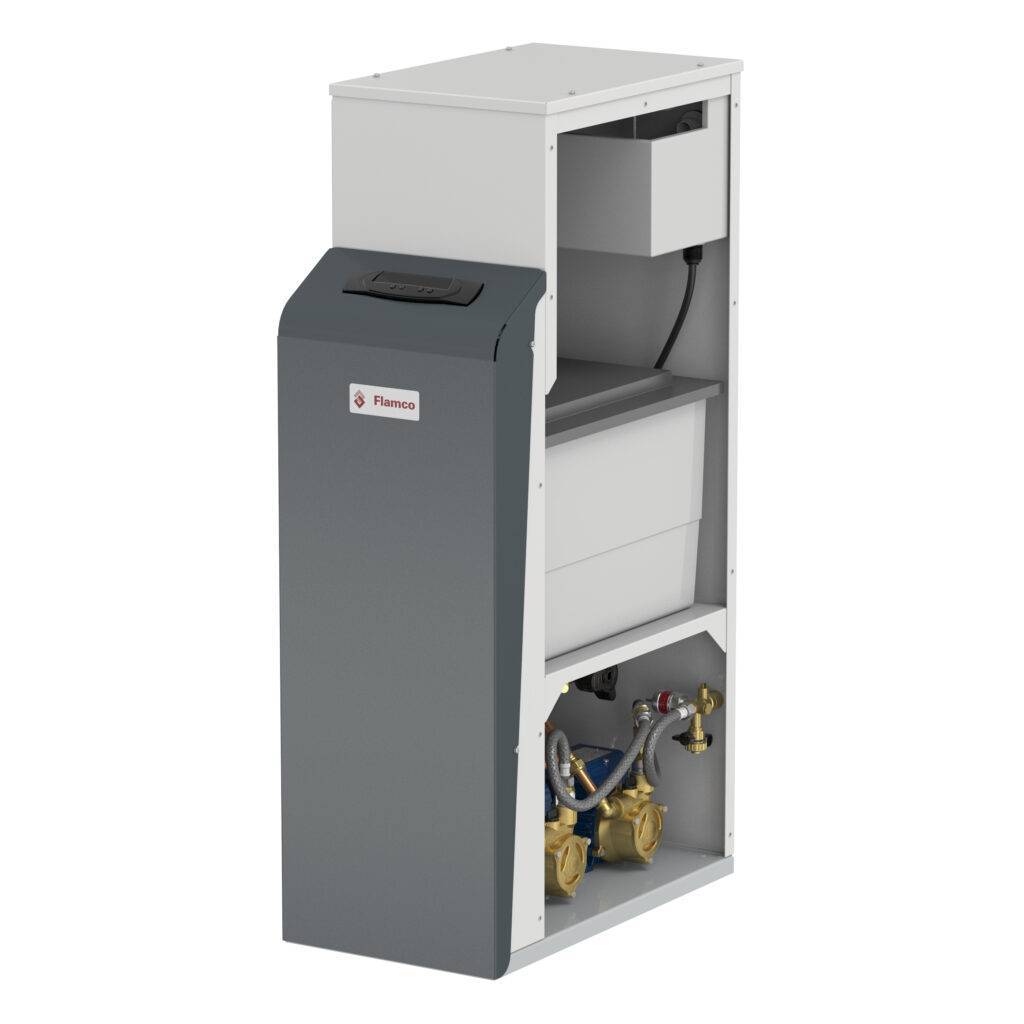

The Pro PDS (Pressurisation/Dosing System) is a floor standing, additive top-up mixing pressurisation unit with a 4 litre break tank to be connected to the mains supply. 18 litre tank for additive storage. Each time the unit tops-up the system with water, it also automatically adds additive from a dedicated tank at a predetermined rate, reducing intervention and maximising system protection. Available with double pump (for duty/standby configuration).

Application:
Commercial, Industrial and Residential.

System Volume (Guide): < 300,000 litres.
Product Features
For system volumes up to 300,000 litres.
Dry Run Protection.
Anti Seize Routine (Pump is pulsed for 2 seconds if inactive for 60 days, must be enabled at time of commissioning).
Pressure setting in 0.1 bar increments.
Electric pump, 230V 50Hz 1ph.
Colour: Grey (RAL 7016).
System fill mode.
Onscreen Service Reminder – 12 Months.
MODBUS RTU Communication Protocol.
Password protected.
Bi-directional programming menu.
Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
Pump pulse option.
Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
Optional Additional Volt Free Contacts (Requires an additional factory fitted expansion board): Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).
