Description

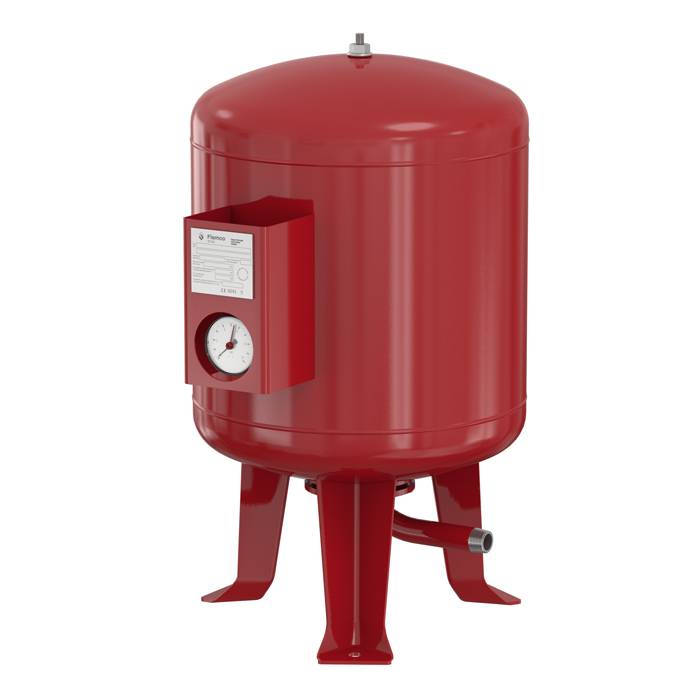

Expansion vessels with a replaceable bladder for use in sealed heating installations (acc. to EN12828) and chilled water (cooling) installations.
Particular benefits of use are achieved in installations with large variations between static pressure and pre-set pressure of the safety valve.
Replaceable bladder.
Delivered with pressure gauge and is equipped with an inspection flange.
Flexcon M 2800 litres delivered with height adjustable feet.
The Flexcon M can be fitted with a Flexvent Super. -
Technical Features
Maximum operating pressure: 16.0 bar.
Red (RAL 3002) epoxy powder coating.
Vessels in accordance with AD2000.
Suitable for systems with a system temperature of 120 °C.
Maximum temperature bladder: 70 °C.
In accordance with Pressure Equipment Directive 2014/68/EU.
Suitable for addition of glycol-based anti-freeze up to 50%.
Red (RAL 3002) epoxy powder coating. -
