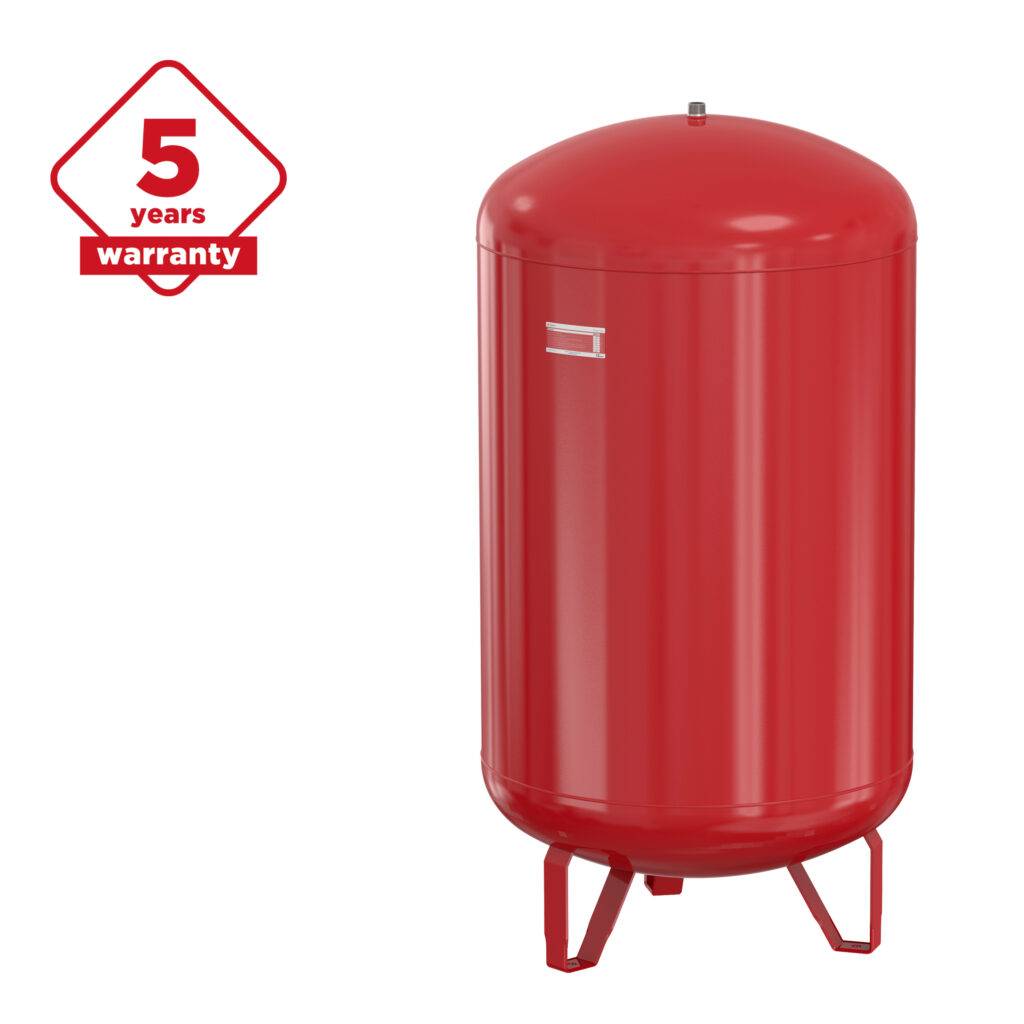

Description
For sealed heating installations (acc. to EN12828) and chilled water (cooling) installations.
Flexible diaphragms with rolling action.
Nitrogen gas filling for longer maintenance of pre-pressure.
The ribbed profile on the diaphragm prevents it from sticking to the inside wall of the vessel and ensures inflow of expansion water at the slightest increase in pressure.
Uncoated water connection thread ensures easy and water tight installation.
Top quality steel.
Finished with a gleaming epoxy-powder coating.
Each vessel is factory tested. -
Technical Features
Maximum working pressure: 6.0 bar.
Vessels in accordance with EN13831.
Suitable for systems with a maximum system temperature of 110 °C.
Min./ max. temperature diaphragm: -10 / 70 °C.
Suitable for addition of glycol-based anti-freeze up to 50%.
In accordance with Pressure Equipment Directive 2014/68/EU.
Tilting height:
800L: 1865 mm.
1000L: 2195 mm.
All welded construction.
Flexcon 110 – 300: including mounting kit.
Red (RAL 3002) epoxy powder coating. -
