Description

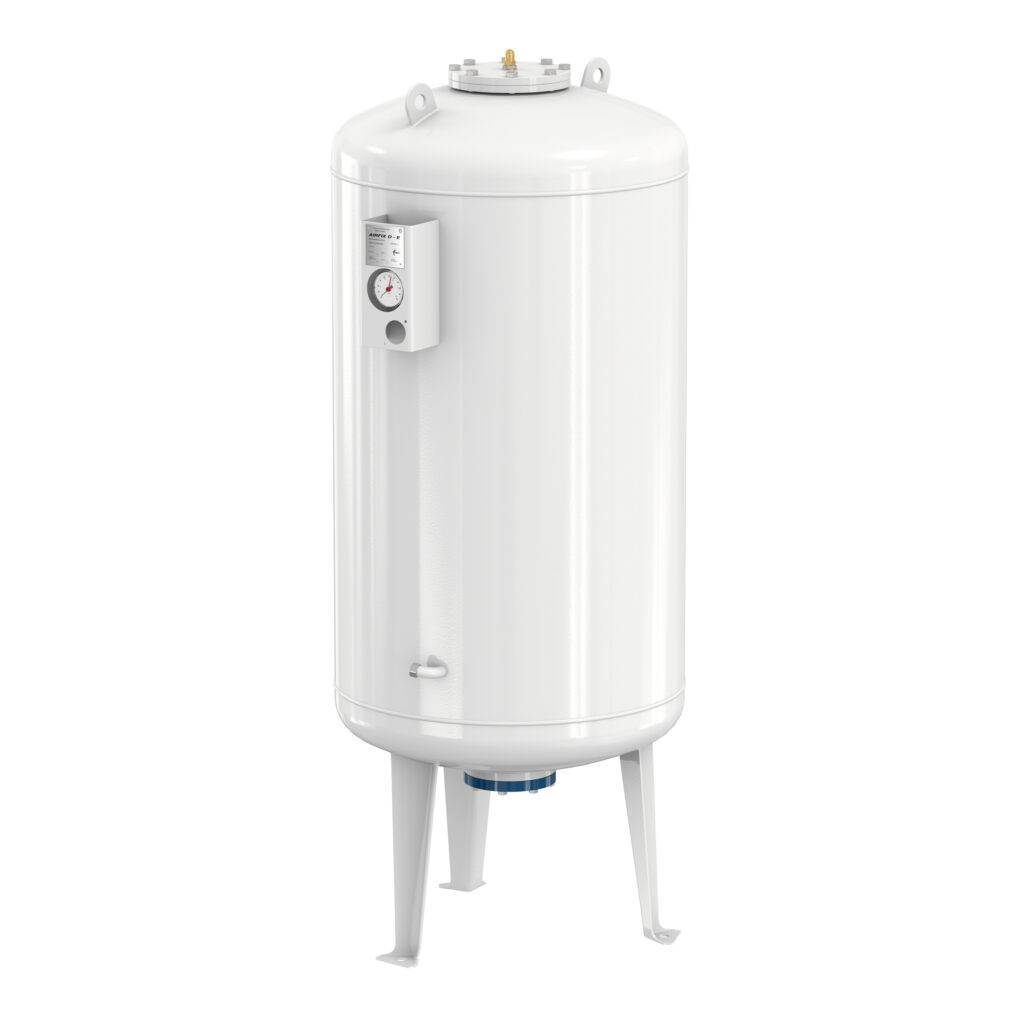

Airfix D-E-B is suitable for domestic, process or firefighting water installations, where the Airfix vessel is not connected to the drinking water network but there is oxygen-rich water.
The composition of the bladder has been made for this range in such a way that there will be no variation in smell, colour or taste. The inside of the Airfix connection flange has a special coating which prevents oxidation.
Nitrogen gas filling for longer retention of pre-charge.
Replaceable butyl rubber bladder according to DIN4807/5.
With single threaded coated steel connection (no flow-through function). -
Technical Features
Maximum working pressure: 16.0 bar.
Standard pre-charge: 6.0 bar.
Min./ maximum working temperature (bladder): 1 / 70 °C.
Colour: White, RAL 9010.
In accordance with Pressure Equipment Directive 2014/68/EU.
Material quality: S235JR.
EN/ISO: P245N. -
