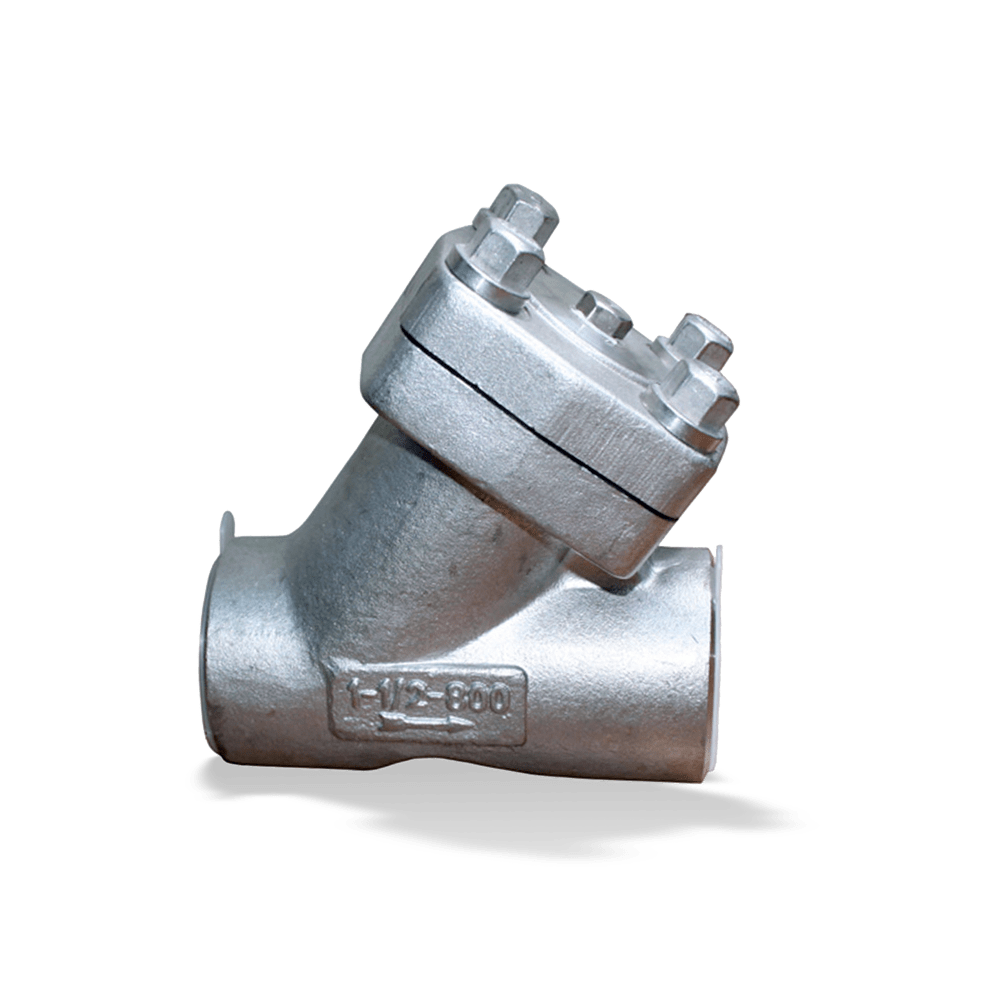

ECOLINE FYF 800
Strainer to ANSI/ASME with threaded sockets (NPT) or socket weld ends (SW), Y-pattern, with bolted cover, forged steel A105, screen made of stainless steel 304. Mesh width 0.8 to 0.9 mm.
-
Description
Main Applications
– Boiler feed applications
– Fossil-fuelled power stations
– Petrochemical industry
– Pipelines and tank farms
– Refinery
– Process engineering -
Advantages
– Foreign particles slide smoothly down to the bottom of the screen, as the screen’s inside surfaces are fine-machined to a smooth finish. Longer cleaning intervals and reduced maintenance costs.
– Cost-efficient due to Y-pattern body with hydraulically optimised flow path. Higher flow rates and low pressure loss.
– Range of mesh widths and screen materials available, for versatile applications. -
Suitability
Strainer
-
Technical Features
- Nominal pressure
- CL 800
- Max. nominal size
- NPS 2
- Maximum allowable fluid temperature
- 427 °C
-
