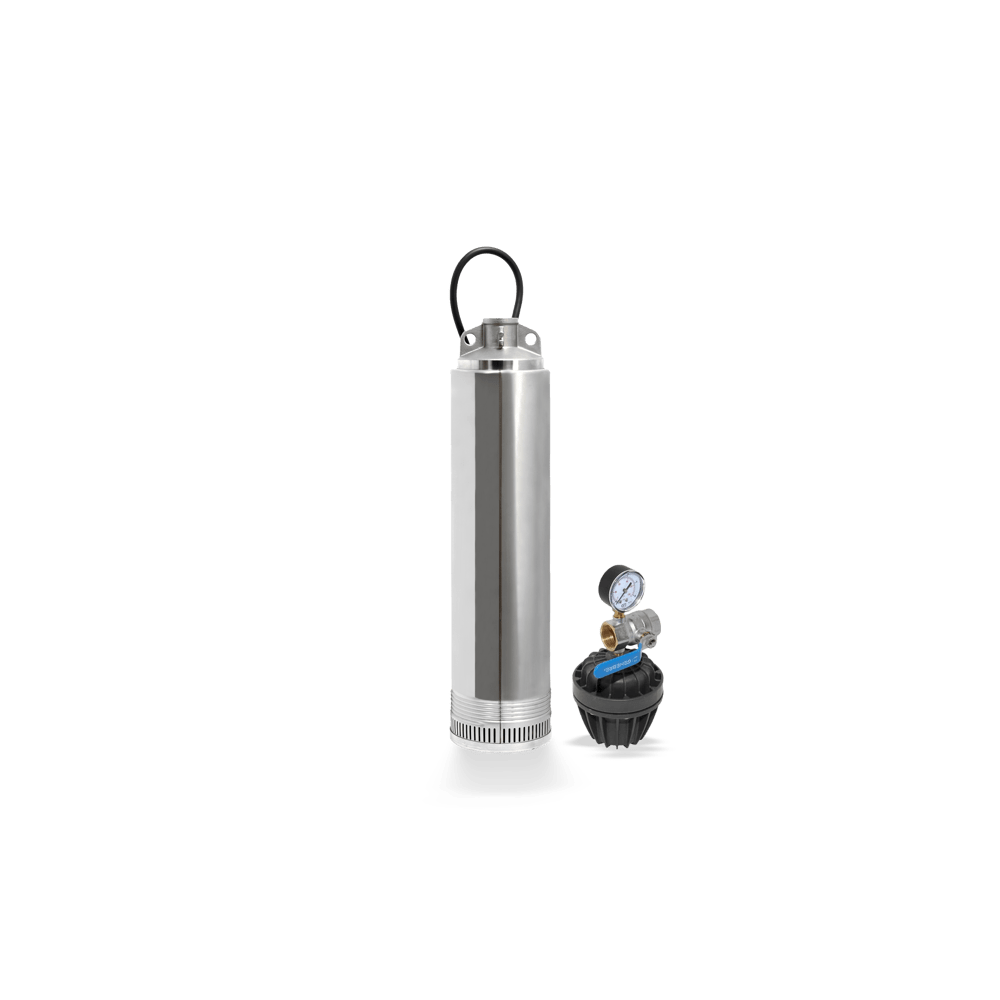

Ixo Pro
Multistage submersible borehole pump with integrated pressure switch, flow sensor and lift check valve. Electronic dry running protection with four consecutive start-up attempts; integrated capacitor. 15-metre H07 RN-F power cable with shockproof plug included.
-
Advantages
– Easy and convenient installation with integrated pressure switch and completely wired cable, including plug
– Kit-Press (pressure switch connection set) extends the service life of the pump by preventing pressure surges in the discharge line and excessive starting/stopping.
– Corrosion-resistant with pump shroud and impellers made of stainless steel AISI 304
– High operating reliability with water-cooled motor with integrated thermal protection, electronic dry running protection and integrated swing check valve -
Suitability
Submersible borehole pump
-
Technical Features
- Max. flow rate
- 3.9 m3/h
- Max. head
- 60 m
- Max. allowed working pressure
- 6 bar, 12 bar
- Maximum allowable fluid temperature
- 35 °C
-
