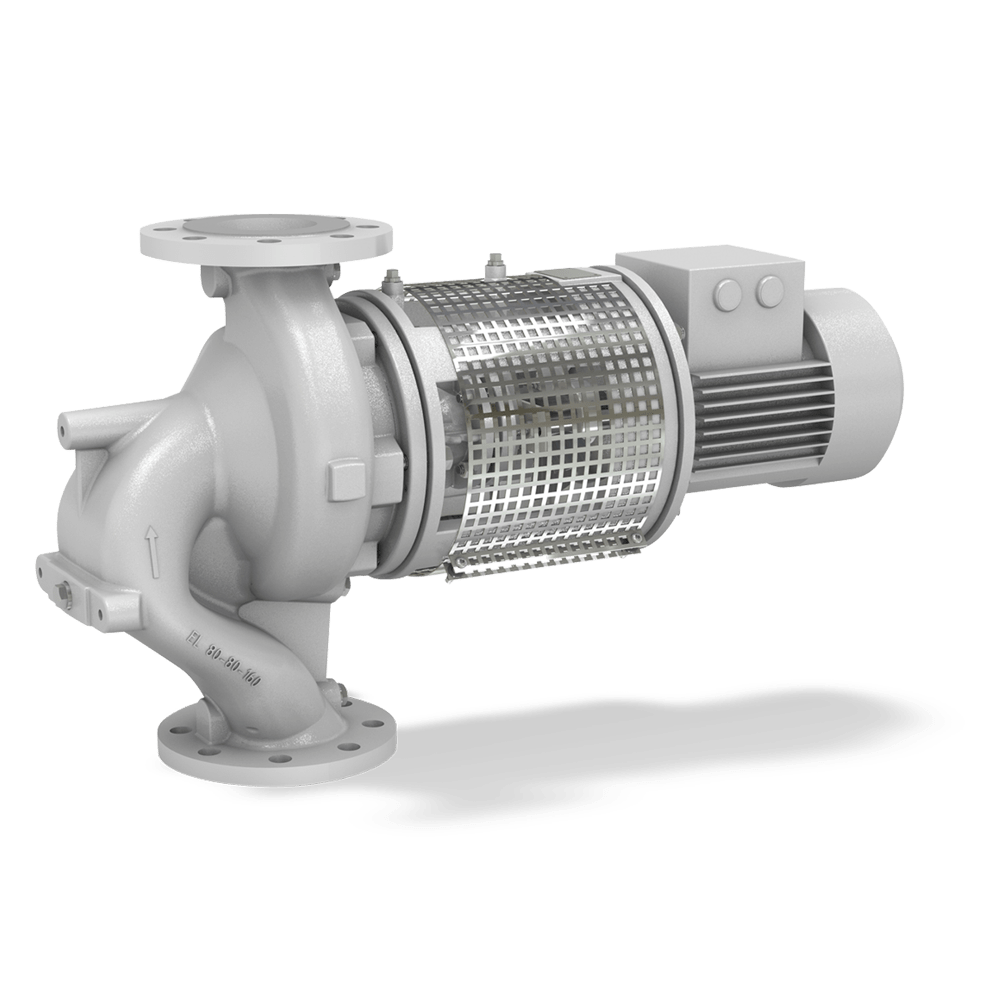

Etaline SYT
Single-stage volute casing pump in in-line design, with magnetless KSB SuPremE motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable speed system; pump shaft and motor shaft are rigidly connected. ATEX-compliant version available.
-
Advantages
– Designed to deliver reliable operation with mineral and synthetic thermal oils up to 350 °C
– Maximum operating reliability ensured by KSB mechanical seal with multi-spring arrangement and reliable venting during pump operation
– Safety barriers: Special contour ensures reliable removal of leakage at the mechanical seal; confined sealing elements and effective heat barrier
– Individual requirements are met with maximum efficiency, and operating costs are reduced: impeller trimming, variable speed operation / intelligent control by KSB frequency inverters and KSB motors up to IE5, maximum hydraulic pump efficiency and low NSPHreq
– Wide range of applications through compliance with EN PN16 and ASME, ATEX-compliant version, carbon plain bearings, marine version to DNV GL and fan impeller for efficient cooling
– Great ease of maintenance due to casing wear rings and back pull-out design enabling the casing to remain in the piping during maintenance. -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 316 m3/h
- Max. head
- 101 m
- Max. allowed working pressure
- 16 bar
- Maximum allowable fluid temperature
- 350 °C
-
