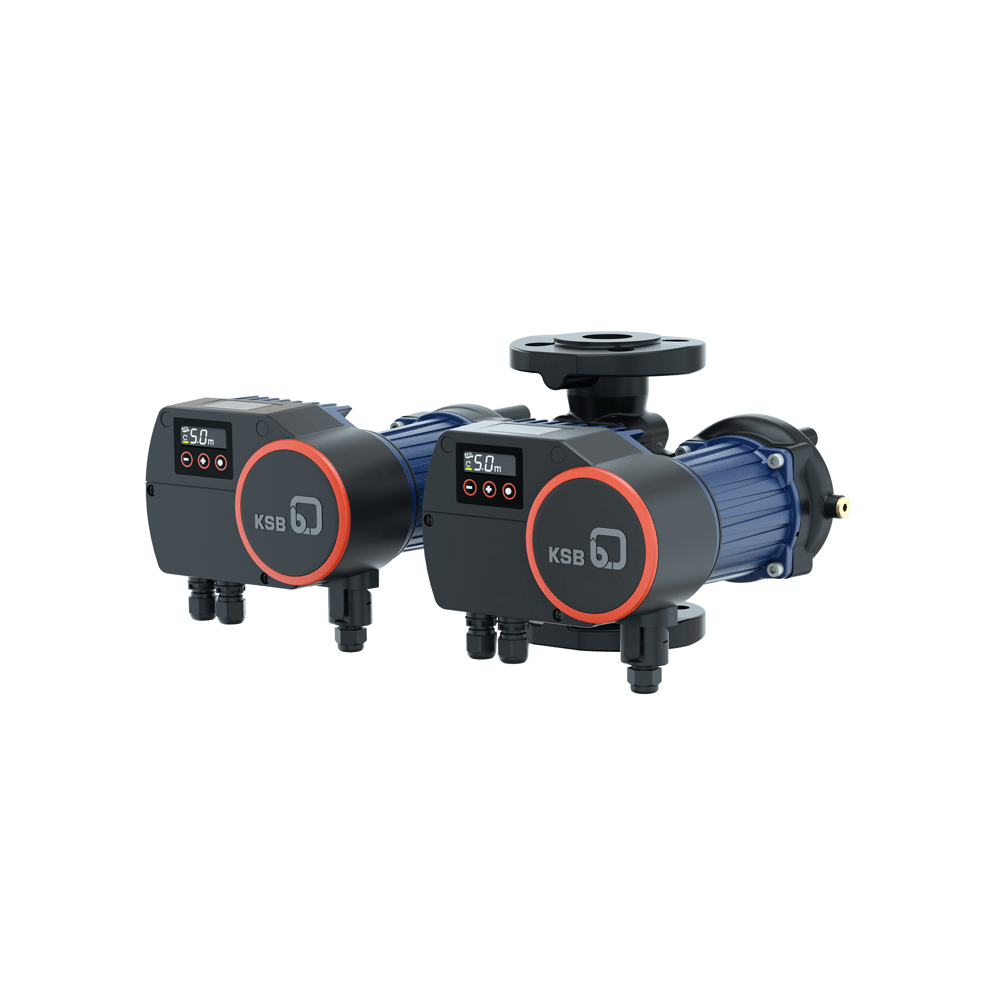

Calio Pro Z
Maintenance-free high-efficiency flanged or screw-ended glandless pump in twin pump design with high-efficiency electric motor and continuously variable differential pressure control.
-
Description
Main Applications
– Heating, ventilation, air-conditioning, cooling and circulation systems
– One-pipe systems and two-pipe systems
– Underfloor heating systems
– Boiler circuits or primary circuits
– Storage tank circuits
– Solar power systems
– Heat pumps -
Advantages
– High-efficiency technology combined with speed control and efficient operation by means of Dynamic Control offer maximum savings.
– Future-proof by maximum energy efficiency, exceeding current energy efficiency regulations such as ErP 2015.
– All-in concept saves investment costs and commissioning costs.
– Easy-to-use combination of controls, integrated display and symbols to show the operating status
– High availability by dual-pump operation and integrated protective functions -
Suitability
Dry-installed pump
-
Technical Features
- Max. flow rate
- 21.8 m3/h
- Max. head
- 12 m
- Max. allowed working pressure
- 16 bar
- Maximum allowable fluid temperature
- 110 °C
-
