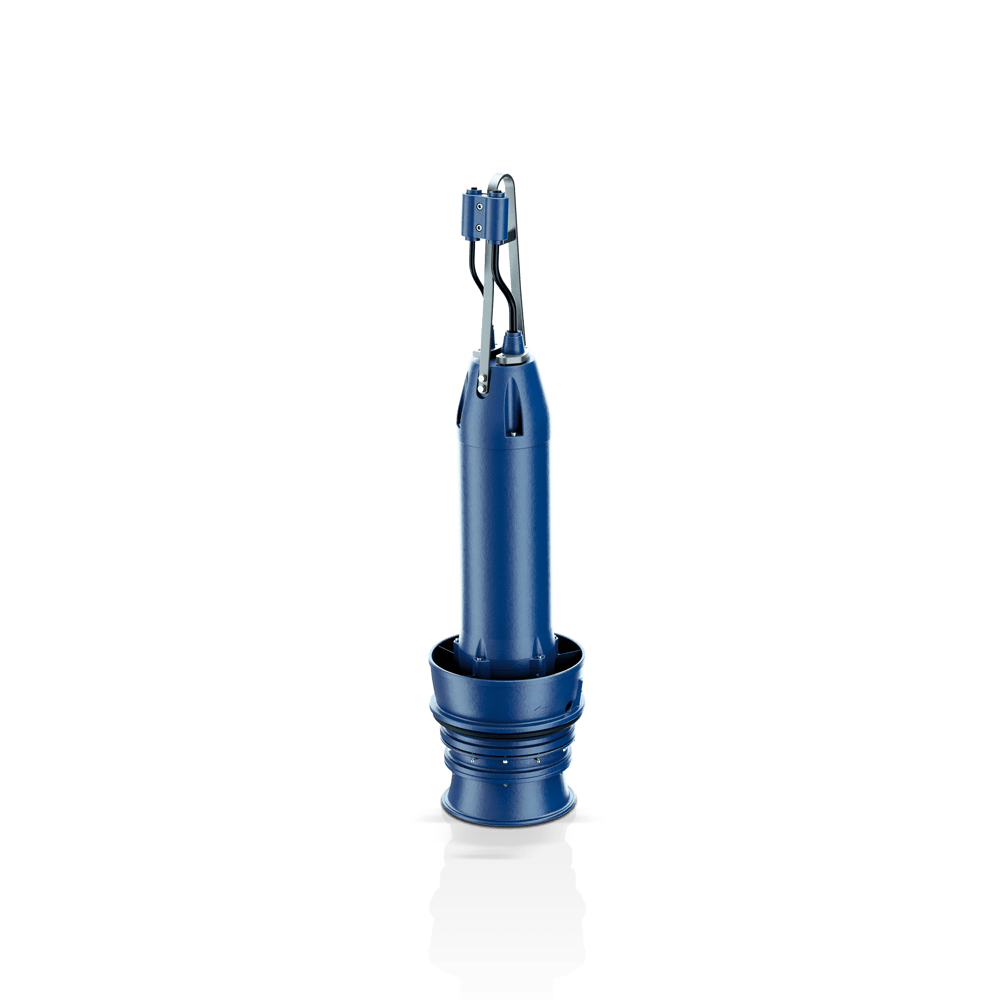

AmaCan P
Wet-installed submersible motor pump for installation in discharge tubes, with axial propeller in ECB design, single-stage, single-entry. ATEX-compliant version available.
-
Description
Main Applications
– Irrigation pumping stations
– Drainage pumping stations
– Stormwater pumping stations
– Raw water pumps and clean water pumps in waterworks and waste water treatment plants
– Cooling water pumps in power stations and industry
– Industrial water supply
– Water pollution control
– Flood control
– Aquaculture -
Advantages
– The pump’s own weight ensures self-centring seating in the discharge tube, and an O-ring seals it; quick to install or remove.
– The slim motor keeps discharge tube flow losses down.
– High reliability thanks to bearing temperature monitoring, vibration sensor, thermal motor protection, leakage sensors in the motor space and connection space as well as leakage monitoring of the mechanical seal system.
– Low-vibration hydraulic system; inlet ribs and optimised bellmouth for vortex-free inflow.
– Absolutely water-tight resin-sealed cable entries prevent any water from entering the motor – even in the event of a damaged cable. -
Suitability
Submersible pump in discharge tube
-
Technical Features
- Max. flow rate
- 25200 m3/h
- Max. head
- 12 m
- Maximum allowable fluid temperature
- 40 °C
-
